Summary of Contents for Ecom EN2-F

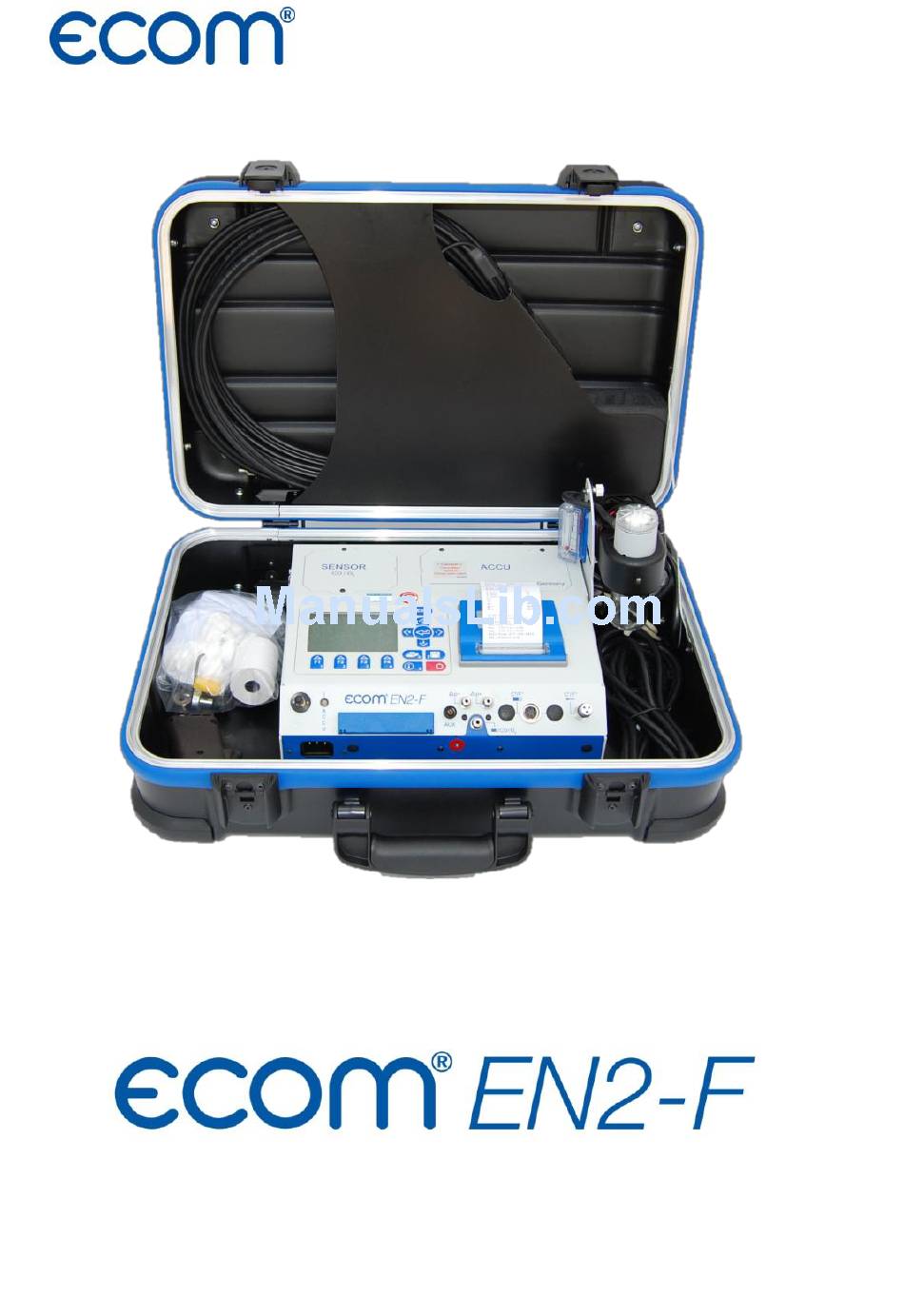

- Page 1 Quick Guide Version 1.9.2...

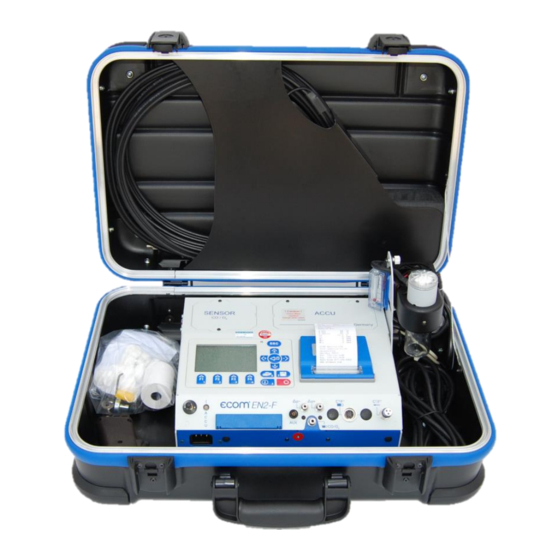

- Page 2 Instrument Design Optical flow control Sensors com- partment Peltier cooler w/ con- Graphic Battery com- densate drain and display partment particulate filter Integral printer Bluetooth Slot for multi- Connection Connection air Antenna media card pressure temperature Charging Connection Connection indicator via USB draft light...
- Page 3 Keyboard ESC key In the input mode, the keys are (quit/ used for numerical inputs escape menu) Enter key (confirm selection) Cursor keys (Up/Down/Right/ Left/Scroll) Save snapshot to internal memory Access printing menus (press F2 to quick print) F1: Standby – pump shuts off Info key ON / OFF F2: Quick print...
- Page 4 (wireless range is approx. 10 m) Connection with ECOM analyzer (The ecom-R connects with only 1 analyzer at a time) Setup Bluetooth Connection - Ensure there is only one instrument with Bluetooth near the ecom-R - Turn on the analyzer - Go to Adjustments Internal...
- Page 5 Analyzer Start-up Carrying case & cooler When opening the case, make sure to pull out and up on the two tabs on the front. Unlock the cooler by pulling out on the knob and swinging the cooler 90deg upward. The cooler must be upright and locked into place before the pump engages.
- Page 6 - Control : Check operation state of instrument - Diagnostics : Only used with ECOM AK tool To perform measurements, select Gas analysis and confirm with <Enter>. The instrument starts a 1- minute auto-zero phase and the fuel types selection list is displayed. The following fuel types are...
- Page 7 Gas Analysis Gas analysis display screen After the 1-minute auto-zero phase, the instrument switches over to the measurement mode. The gas measurement values can be viewed on 4 display pages. Press up/down to scroll between the pages. 13.1 T.Gas °C Edit line T.Air °C...
- Page 8 Gas analysis display screen (continued) Pressing <F4> goes to “Edit” mode which allows the user to change the line items on the display screen. In “Edit” mode, the values on the screen can be changed to what the user wants to see. To change these values, press F4 and you should see the 1 line start blinking: ...
- Page 9 Intentionally left blank Page 9...
- Page 10 Intentionally left blank Page 10...
- Page 11 Intentionally left blank Page 11...
- Page 12 ECOM A MERICA 1628 O AKBROOK RIVE , GA 30507 AINESVILLE (877) 326-6411 OLL FREE (770) 532-3280 HONE (770) 532-3620 ecom.info@ecomusa.com w w w . e c o m u s a . c o m Page 12...
