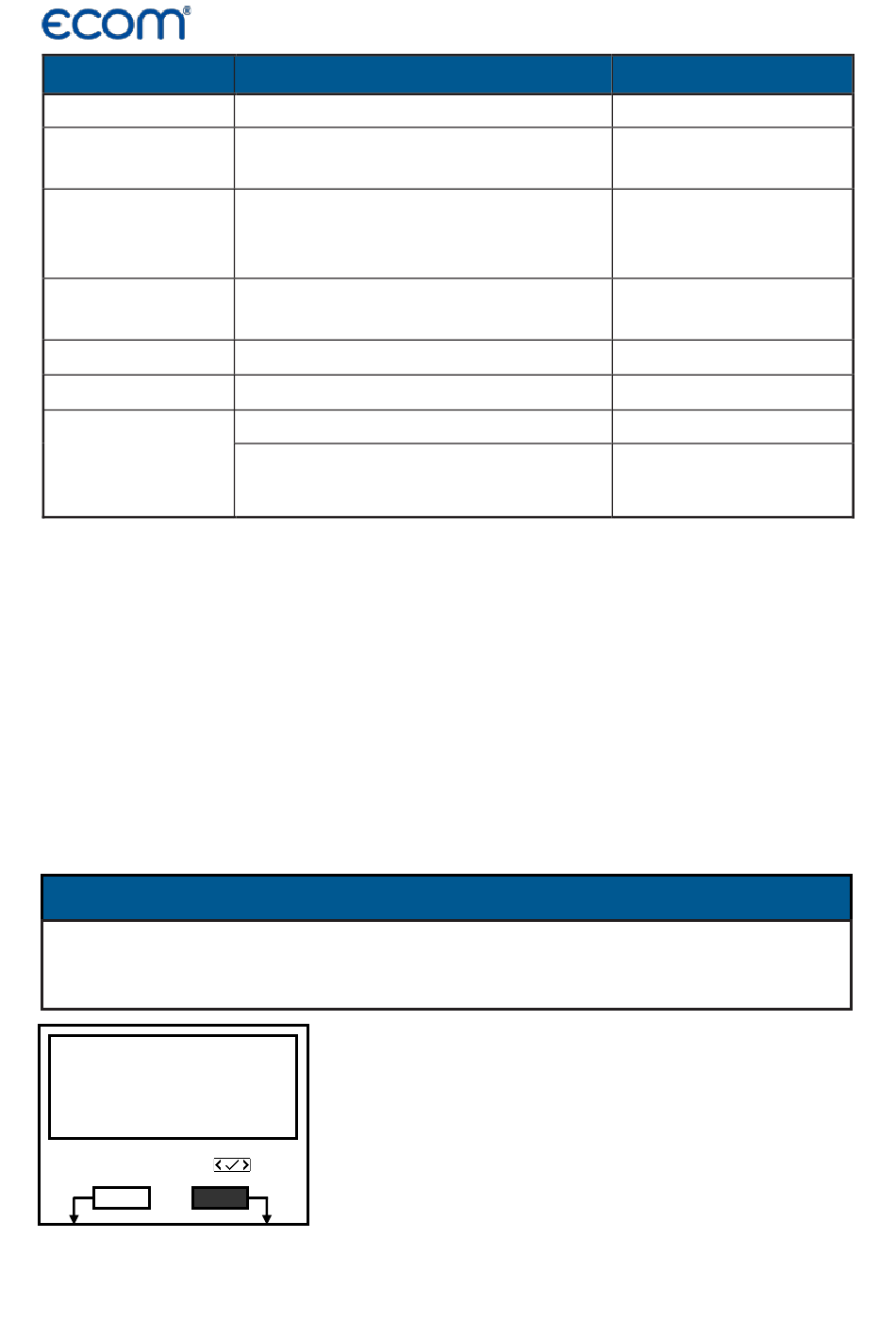

2.3. Calibration, database and fuel type selection

Before you can start the measurement procedures, the instrument performs
the following steps:
1. Automatic adjustment of the sensors (calibration phase)
2. Query: Use of the database
3. Query: Selection of the fuel type
Select the sub-menu "Gas analysis" and confirm with <Enter>. The instru-
ment starts the automatic calibration of the sensors (calibration phase). This
calibration phase is completed after 60 s.
NOTE
Position the probe only in the exhaust pipe when the calibration
phase of 60 s has been completed!
Do you wish to
use the data
processing?
Select :
YES NO
Page 18
Meaning
Perform gas analysis
Perform gas analysis with mean value
calculation
Input of soot measurement results
Assign measurements / Data transfer
Modify instrument adjustments
Check operation state of instrument
- Read-out of firing automate
- delta-T measurement
-
- Heating check
-
- 4-Pa-Test
-
While the calibration phase is active, the query
for using the database is displayed. If the meas-
ured values of the subsequent gas analysis are
to be assigned to a plant or a customer, confirm
the query with "Yes".
→ Press the <F1> key.
Comment
Start soot measurement
(units with soot measure-
ment)
only with inserted MM
card
only with ecom-AK
ecom-EN3
