  • Page 1 Ex-MX2 Safety instructions...

  • Page 2: Table Of Contents

    15. EC Declaration of conformity 16. EC-Type Examination Certificate Note: The current operating instructions, EC Declaration of Conformity and the Ex-certificate are available for download from the relevant product page under www.ecom-ex.com; alternatively they can be requested directly from the manufacturer.

  • Page 3: Application

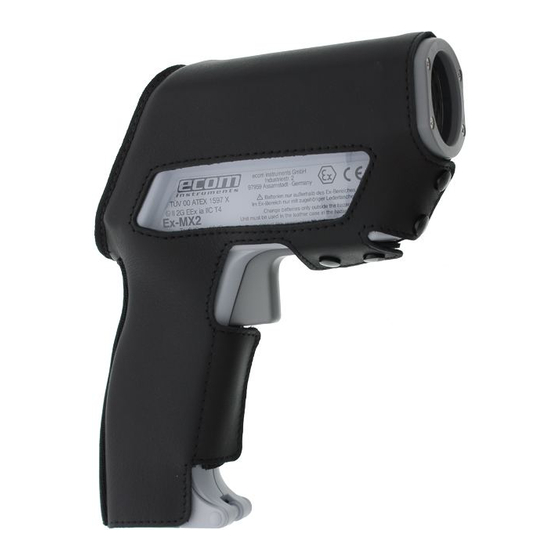

    1. Application The Ex-MX2 is a contactless temperature measuring device designed for industrial use in potentially explosive areas of Zones 2 and 1 in accordance with Directive 1999/92/ EC (ATEX 137). 2. Safety instructions These operating instructions contain information and safety regulations that must be followed to ensure safe and reliable operation of the unit under the described condi- tions.

  • Page 4: Special Conditions For Use In Zone 0 Areas

    - Ensure that the unit is not taken into Zone 0 areas. 4.1 Special conditions for use in Zone 0 areas Temperature measurement with the Ex-MX2 is only allowed within Zone 0 only if the following conditions are met: 1. The Ex-MX2 temperature measuring device itself must not be brought into Zone 0.
  • Page 5 Measuring spot size (distance / Ø): 60:1 at the focus point (1.15 m) and 35:1 in the far field (> 10 m) Accuracy (25 °C): ± 0.75% of the measured value or ± 0.75K, whichever is the larger value (± 2K for measurement objects below -5°C) Ambient derating (at 25 °C ±...

  • Page 6: Functional Description / Operating Information

    Please take the time to carefully read through these operating instructions to ensure that you are familiar with and can use all the functions on your Ex-MX2. For your own safety and information please read through the information on the following pages.

  • Page 7: Display Screen

    8.3 Display screen Continuous measurement Laser Maximum setting reached Measured temperature Bar display of the last 10 measured values Battery condition Emissivity MIN/MAX display of the last measurement 8.4 Settings System settings can be fixed and activated with the switch panel. Remove the leather pouch and open the casing with the handle as shown.

  • Page 8: Emissivity

    8.4.1 Emissivity Most organic materials and lacquered and oxidised surfaces have an emissivity of 0.95. The emissivity is preset to 0.95 in the Ex-MX2 for this reason, but can be changed with the rocker switch. The determination of the temperatures of shiny or highly polished metal surfaces pro- duces inaccurate measured values.

  • Page 9: Optical Diagram

    8.5.2 Optical diagram Ø mm measuring spot Distance m 1.15 1.50 2.50 3.00 8.5.3 Field of view Ensure that the measuring object is larger than the size of the measuring spot of the device. The smaller the measuring object the closer you must approach the object.

  • Page 10: Troubleshooting

    GmbH will be disposal obligation and disposed of at no cost in accordance with the EC Directive 2002/96/EC and the German Electrical and Electronic Equipment law of 16/03/2005. The costs of the transport of the equipment to ecom instruments GmbH are borne by the sender.

  • Page 11: Warranty And Liability

    14. Warranty and liability Under the general terms and conditions of business, ecom instruments GmbH offers a 2-year warranty for function and materials on this product under the specified opera- ting and maintenance conditions.
  • Page 12 Further details relating to the declaration of conformity can be found at the following Website http://www.ecom-ex.com in the Products Download area.

  • Page 13: Ec Declaration Of Conformity
