Summary of Contents for Ecom ecom-AK

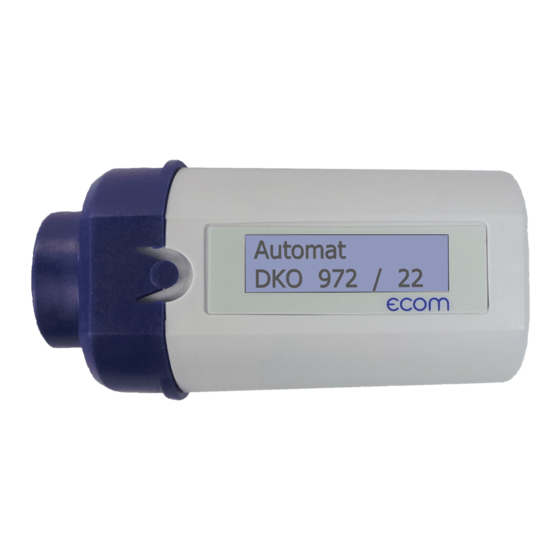

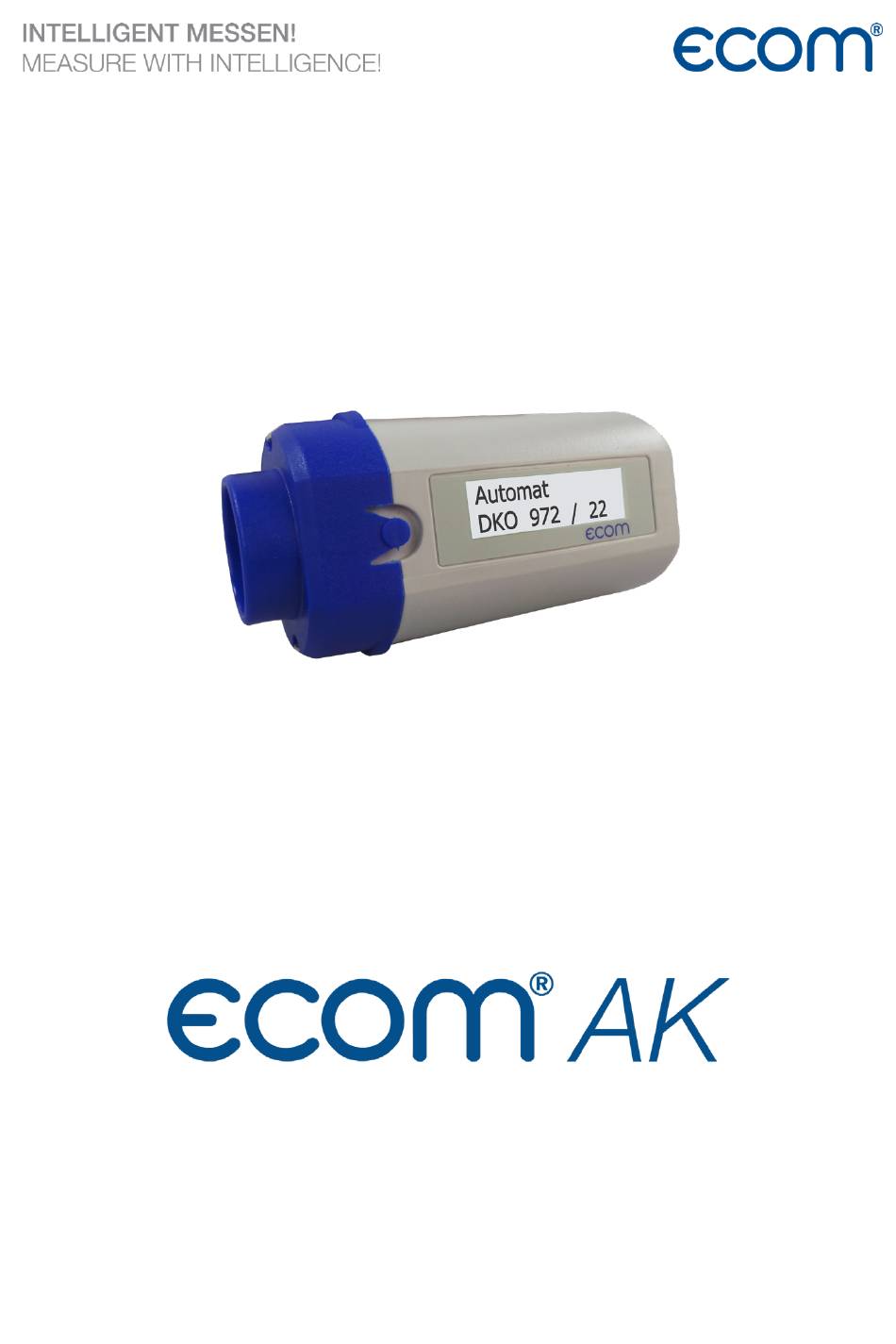

- Page 1 English OPERATION MANUAL Version ecom-AK Status Sep. 2021...
-
Page 2: Intended Use
In addition, the ecom-AK read-out head can be optionally connected to the PC to to read out data and to create documentation. The ecom-AK is able to identify the make and the model of the following firing automats: Siemens-Landis &... -
Page 3: General Safety Instructions
Damage of the Electricity Moisture or frost can damage the electronics. Do not store the unit in moist rooms or at sub-zero temperatures. CAUTION Malfunction of the Readout Process Exposure to strong light can disturb the readout process. Protect ecom-AK from strong light. -
Page 4: Device Description
Housing Setting Key Housing Head Display Set Language Hold down the setting key until Language: English on the display appears. Use the setting key to select the required language. NOTICE ecom-AK starts after about 5 s in the selected language. - Page 5 PC mode appears on the display. ecom-AK searches for automat information. NOTICE When using the AK PC software, the ecom-AK must not be started in PC mode. ecom-AK switches off after 2 minutes if it does not detect any signal.
- Page 6 Display Use the setting key to recall the data step by step: Operating Status of the Burner 2.3µA 231V Error Valve 1 Engine Flame identified Ignition Operating Voltage Valve 2 Oil Preheater Flame Signal Flame Signal • current flame signal - minimum signal Reserve safety time •...
-
Page 7: Change Batteries
Start the programme with „Start“ „Programmes >“ „AKPC“. Select COM port from the „Setup“ menu. Select COM Port. Confirm with „OK“. Connect the ecom-AK to the PC via the connection cable. Connect ecom-AK to the automatic burner control. Switch on the ecom-AK. - Page 8 NOTICE The data of the automatic burner control are displayed on 2 pages in the software. Oil preheater Actual flame signal Valve 2 Engine is running Flame signal min Valve 1 Ignition is active Flame is detected Operating voltage...
- Page 9 Model designation Current error Print data Total number of Copy data Error history burner starts to clipboard Active burner Error statistics components Control times firing Save data to automat text file...
-
Page 10: Technical Data
Connection to Connection only possible with cable and ecom-J2KNpro V3 not by radio. Connection only possible with cable and Connection to ecom-EN3 not by radio. Connection only possible with cable and Connection to ecom-D not by radio. Automatic burner control in... -
Page 11: Maintenance
Maintenance To ensure the accuracy of your measuring device, we recommend an annu- al inspection by an authorised ecom partner. In case of heavy use, shorter inspection intervals should be chosen – please contact your ecom partner. Disposal • Dispose of used batteries at the designated collection points. - Page 12 GmbH Am Großen Teich 2 D-58640 Iserlohn info@ecom.de www.ecom.de Phone: +49 2371 945-5 Fax: +49 2371 40305...
