Operating Instructions
Version 2.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOM-D and is the answer not in the manual?

Questions and answers

Related Manuals for Ecom ECOM-D

Summary of Contents for Ecom ECOM-D

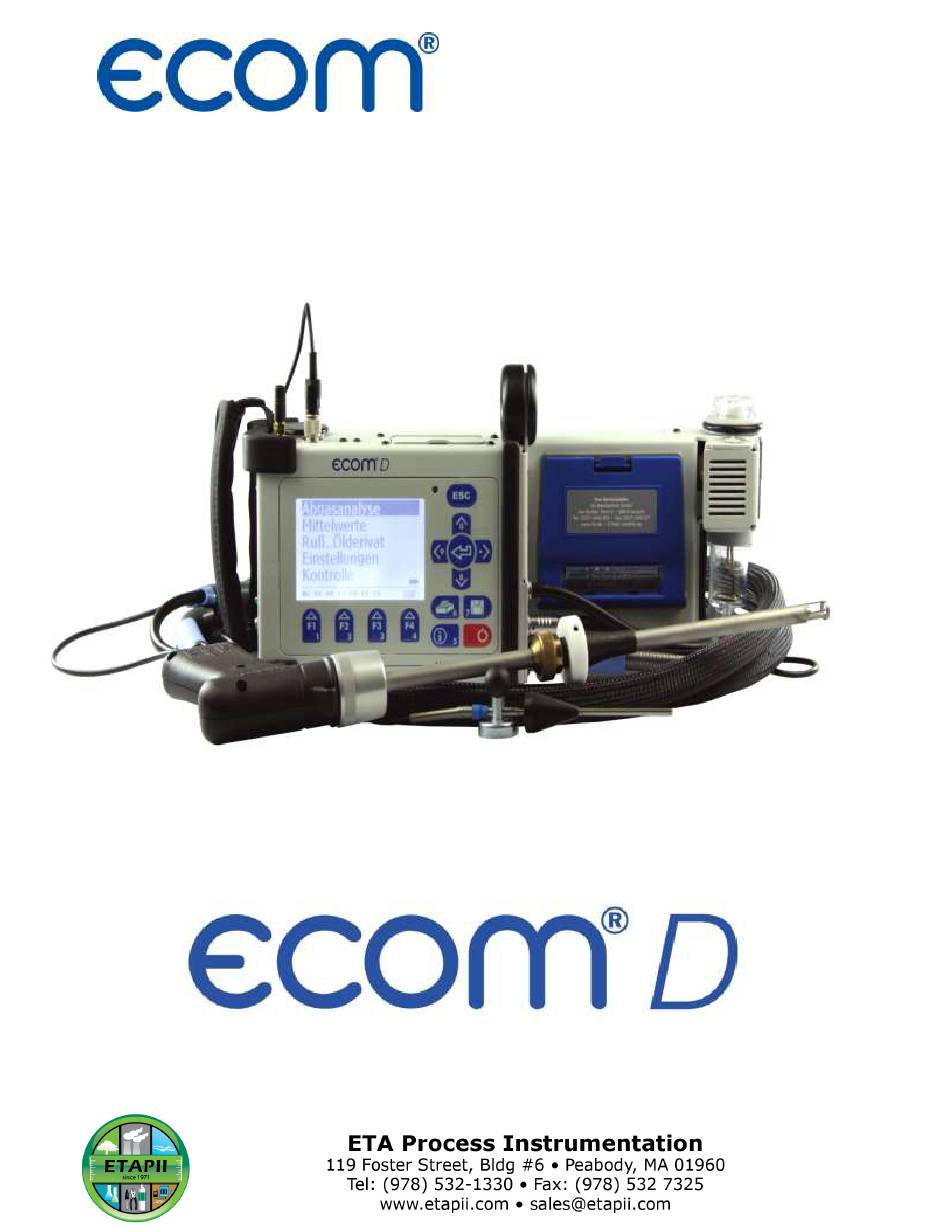

  • Page 1 Operating Instructions Version 2.0.1...

  • Page 2: Table Of Contents

    Index Page Important Tips 1. Instrument Design 2. Ecom-D Accessories 3. Gas Cooler (option) 4. Power Supply 5. Data Memory 6. Analyzer Start-Up 7. View/Create Measurement Records 10-12 8. Flue Gas Analysis 8.1. Gas analysis 8.2. Draft measurement 16-17 8.3. Flow measurement (optional) 8.4.

  • Page 3: Important Tips

    Important Tips The Ecom-B is not suitable for continuous emis- sions testing. Please allow at least 10 minutes of fresh air purging for each hour of testing. In order to get correct measurement values: -allow 1 min for auto-zero in fresh air -allow at least 2 mins.

  • Page 4: Instrument Design

    Condensation trap Antenna for Bluetooth (with Peltier cooler) or WiFi with fine dust filter Air temperature (Option) (Option) Connection Printer (Option) Graphic display Charging LED Draft Arrow Keys Connection Gas temperature Connection Sample line Connection Charger connection Page 4 ECOM-D...

  • Page 5: Ecom-D Accessories

    Info key ON / OFF key Print key (function shown on display) (access control menu) (access printing menu) 2. Ecom-D Accessories 2 GB SD Card Thermal IR Portable Printer Part No:3014584G Paper (5/pk) Part No: 6951801H Water Trap Filter (10/pk)

  • Page 6: Gas Cooler (Option)

    The Peltier cooler can be switched off in the following manner: In the measurement menu, press <Enter>, select <Peltier I/0> and press <Enter> again (To turn the Peltier cooler switch on, just repeat this procedure). Page 6 ECOM-D...

  • Page 7: Power Supply

    - The card must have at least 32 MB of memory, with a maximum of 2 - The card must be formatted on 16 bit FAT - It must be either an SD or MM card from rbr - The PC must have a card reader from ECOM, Belkin, or SanDisk Ecom-D Page 7...

  • Page 8: Analyzer Start-Up

    - Gas analysis : Perform gas analysis - Soot...Oil trace : Input of soot measurement results - Data processing : Save measurements / Data transfer (Multi-media card required) - Adjustments : Modify instrument settings - Control : Check operation state of instrument Page 8 ECOM-D...
  • Page 9 If you want to processing? assign the sampled data to a specific file, so press <F1>. Press <F4> to perform the measurment Auswählen: <>!  without selecting a save file. NEIN Ecom-D Page 9...
  • Page 10 - Select with the desired character with <Up/Down/Right/Left> (se- lected character is outlined by a black background) - Press <Enter> to confirm the character (press <F2> to delete the last character) - Repeat this procedure until the desired text is complete. Page 10 ECOM-D...
  • Page 11 - Press <F1> to select the first file number and <F2> for the last. - Press <F4> to delete the content of the selected file number. - Press <Enter> to open the selected file number. - Finally, press <ESC> to start the gas analysis. Ecom-D Page 11...
  • Page 12 O2 value in air 12:15 25.09.09 Soot..Oil trace 12:15 25.09.09 dT-measurement 12:15 25.09.09 Memory number 1 Memory number 1 Memory number 1 Press <ESC> to leave measurement data and the recording of the current data can begin. Page 12 ECOM-D...

  • Page 13: Flue Gas Analysis 8.1. Gas Analysis

    Press <F2> to print out the values as they are recording in the inter- mediate memory. Press <F3> to initiate the CO bypass, so that the CO sensor is pro- tected against gas concentrations that are too high. Ecom-D Page 13...
  • Page 14 If the probe is pulled away from the exhaust, an arrow pointing down is displayed, indicating a decrease in temperature. If no temper- ature change is shown for at least 3 seconds, the arrow display will disappear, indicating the lack of change. Page 14 ECOM-D...
  • Page 15 If a printout of the values needs to be made as the measurement is taking place, simply press <F2> (the complete content of the interme- diate memory will be printed). Ecom-D Page 15...

  • Page 16: Draft Measurement

    Disconnect the draft hose from the instrument for a short period and press <F4>. The analyzer will then reset the sensor’s zero point. Pressure Draught -0.12 hPa Recorded value: --.-- hPa Page 16 ECOM-D...

  • Page 17: Draft Measurement

    If a printout of the values is needed during the recording to the intermediate memory, press <F2>. The complete content of the intermediate memory will be printed out. Connections for pitot tube Flow measurement Gas speed m/sek M.Flow Nm3/h Measurement stored in intermediate memory Ecom-D Page 17...
  • Page 18 ("No", "Yes" or "- - - ")  Select  Once all inputs have been entered, press <ESC> to exit the menu. The measurement is now complete. Make sure to let the probe cool down before securing it for transport! Page 18 ECOM-D...

  • Page 19: Measurement Record And Printout

    Important: Once the gas analysis is completed, transfer the val- ues recorded in the intermediate memory on the MM card, other- wise they will be deleted when the analyzer is turned off! --ECOM-D-- Press <Print> (printer symbol) to enter the printing Start printout menu.

  • Page 20: Mean Value Measurement (Option)

    - Select value you want to change and confirm with <Enter> - Set the desired time using the numerical keys: 0.01 = 1 sec = minimal value 59.59 = 59 min: 59 sec = maximum value - Confirm with <Enter> Page 20 ECOM-D...
  • Page 21 <right/left>. You can interrupt the measurement with <F2> or stop it completely with <F4>. After the measurement time has elapsed, you can print the results containing all average values (only instruments with printer - key <Print>). Ecom-D Page 21...

  • Page 22: Adjustments

    10. Adjustments In addition to the ECOM-D functions described previously, various ad- justments can be made to the instrument. From the main menu, select "Adjustments" and confirm with <En- ter>. Adjustments A selection of modifiable parameters, adjustable ac- Einheit cording to the application, is displayed.

  • Page 23: Adjustments

    (press <Enter> to access setting menu): - Display contrast adjustment with the arrow keys Key beep (<F1> for YES / <F4> for NO): - Keys beep when pressed Language: English (change with <Enter>): - Info about selected language (3 languages selectable) Ecom-D Page 23...
  • Page 24 WLAN (selection after pressing <Enter>) Instrument as Access Point (for connection with mobile terminals): -(Start/Stop WLAN: manual switching of WLAN connection – available only with if Auto Connect is inactive) -Access Point: (<F1> for YES / <F4> for NO) Page 24 ECOM-D...
  • Page 25 6. Once input for line 1 is completed, deactivate the character selection mode with <F4> and move to the second line with the arrow key <Down>. 7. Once all lines are complete, exit the menu with <ESC>. Ecom-D Page 25...

  • Page 26: Control

    Further pages:  - Total error count 01.07.10 Service tel. :02371-945-303 Last service (history) 25.08.09 88 hrs - Information from the last maintenance 14.08.10 145 hrs 23.08.11 205 hrs 19.08.12 322 hrs --.--.-- --.--.-- Further pages:  Page 26 ECOM-D...

  • Page 27: Data Processing

    Fuel oil - Press <ESC> to exit 8 01.09.09 11:53 Fuel oil  Select  Format: This function is usually needed by initial adjustment of the instrument at our factory. Caution: All stored values will be cancelled! Ecom-D Page 27...
  • Page 28 (please observe the transfer options of your soft- ware!). Proceed as follows: -Connect ECOM-D to your PC via USB cable. -Select <Load data> and confirm with <Enter>. -Answer the displayed question with YES (<F1>). -Decide if the data recorded can be cancelled (<F1>...

  • Page 29: Maintenance Tips

    13. Maintenance Tips To secure the accuracy of your analyzer, we recommend an annual check by an authorized ECOM service center. In the case of heavy usage (e.g. several hours of measurement per day, rough conditions etc.) service should be done more frequently. All ECOM service cen- ters can be found at www.rbr.de.
  • Page 30 >7000 mV, otherwise it must be changed by an authorized service center. The CO sensor is protected against over-saturation by an internal program. If the limit value of 4000 ppm is exceeded, a second pump switches on and floods the sensor with fresh air. Page 30 ECOM-D...
  • Page 31 -Feed approx. paper through printer (<Adjust- ments>/<PaperFeed>/<Enter>). -Lay the paper roll in the corresponding space. -Insert the paper through the slot of the printer compartment then cov- er and close the lid. Unlocking printer cover Ecom-D Page 31...

  • Page 32: Technical Data

    58 mm paper width Printout individually programmable Indication graphic display; backlit Dim. (W x H x D) 400 mm x 260 mm x 175 mm Weight approx. 6 kg complete with sampling system Subject to technical changes Page 32 ECOM-D...

  • Page 33: Calibration Procedure

    The regulator will hold back the flow of gas until connected to the analyzer. b. If you are NOT using an on demand regulator, adjust the flow to match the analyzer pump draw. Ecom-D Page 33...
  • Page 34 You must check for air leaks before calibrating. Apply a gas with 0% O2 to check for air leaks (ECOM service dept. uses NO gas balanced in N2). Flow calibration gas for 3 minutes. Check that O2 reading is 0.0%. If it is reading other than 0.0 %, turn off gas and troubleshoot the source of air leak.

  • Page 35: Memory Card Data

    16. Memory Card Data Description of data record ecom-D with Multi Media Card Format data logger records: J2KDL-xx.csv (separation mark between values = comma) Format punctual measurements: J2KDV.txt (separation mark between values = comma) Column Description Remark / Example Date DD.MM.YYYY (also US-Version)
  • Page 36 SO2 (Unit 2) Analogue input 1 Analogue input 2 Sensor 7 in ppm Meas. gas volume in l/min last column * converted to unit (column AC) and converted on O2 ref. (Column AB) when column AD = N Page 36 ECOM-D...

  • Page 37: Calibration Log

    Sensor response after 5 min Date: Cal gas concentration Sensor response after 5 min Date: Cal gas concentration Sensor response after 5 min Date: Cal gas concentration Sensor response after 5 min Date: Cal gas concentration Sensor response after 5 min Ecom-D Page 37...
  • Page 38 Sensor response after 5 min Date: Cal gas concentration Sensor response after 5 min Date: Cal gas concentration Sensor response after 5 min Date: Cal gas concentration Sensor response after 5 min Date: Cal gas concentration Sensor response after 5 min Page 38 ECOM-D...
  • Page 39 CO 2 values! - O 2 is defective (CO 2 values are calculated from the O 2 values) - Pump is not working correctly - Leakage in the gas way - condensate trap / gas cooler is clogged Ecom-D Page 39...
  • Page 40 Hint: If you have several instruments of the same type, you can locate an error by exchanging the accessories (probe, hose, temperature sensor etc.). If further questions or problems should arise, please contact the next authorized service center. Page 40 ECOM-D...
