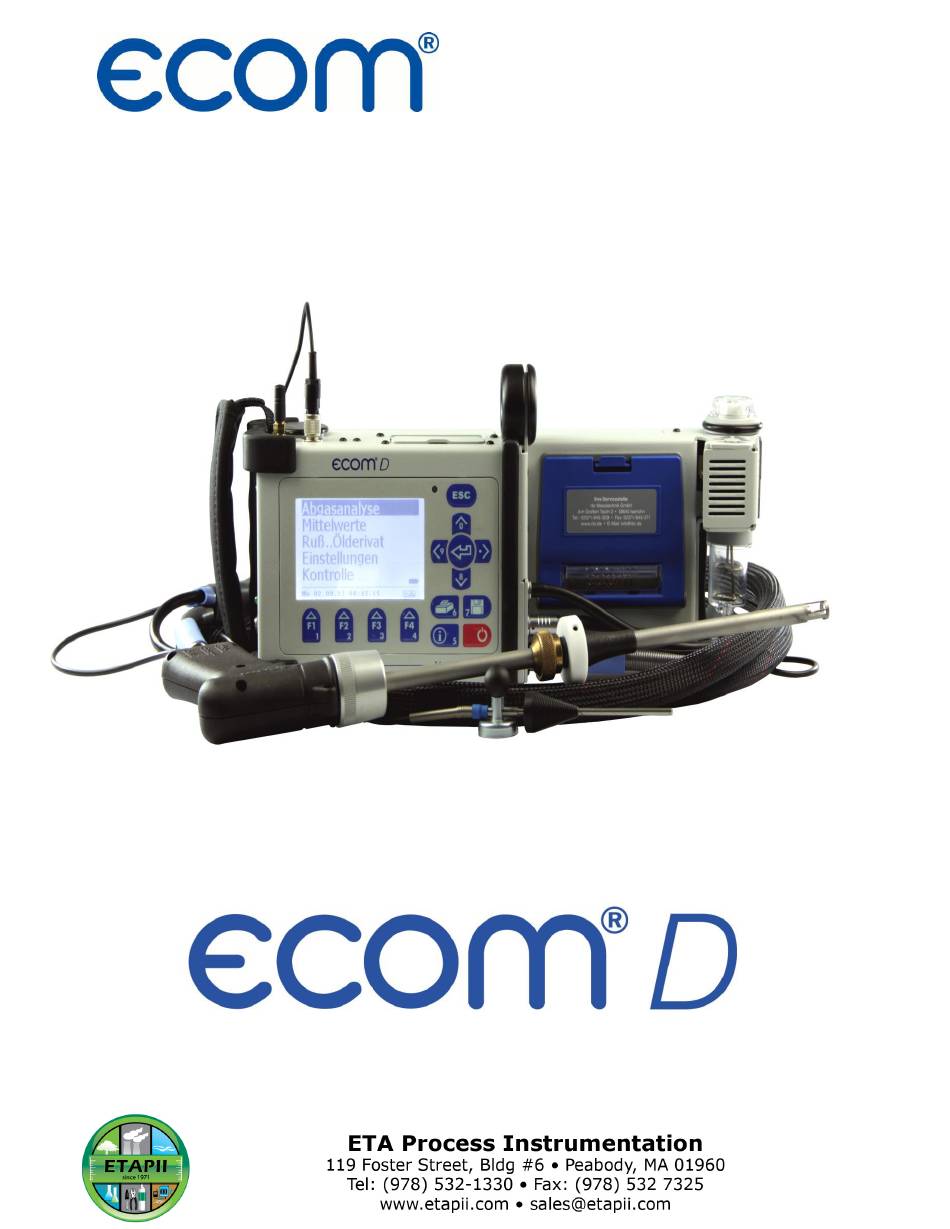

- Page 1 Quick Guide Version 2.0.1...
-
Page 2: Instrument Design
Condensation trap Antenna for Bluetooth (with Peltier cooler) or WiFi with fine dust filter Air temperature (Option) (Option) Connection Printer (Option) Graphic display Charging LED Draft Arrow Keys Connection Gas temperature Connection Sample line Connection Charger connection ecom-D Page 2... -
Page 3: Ecom-D Accessories
F1: Standby – pump shuts off control F2: Quick print menu F3: CO purge pump on/off F4: Edit line items on screen Ecom-D Accessories 2 GB SD Card Thermal IR Portable Printer Part No:3014584G Paper (5/pk) Part No: 6951801H Water Trap Filter (10/pk) - Page 4 To perform measurements, select "Gas analysis" with the arrow keys and confirm with <Enter>. The instrument starts then a 1- minute au- to-zero phase and the fuel type selection list is displayed. The follow- ing fuel types are available: ecom-D Page 4...
- Page 5 If you want to processing? assign the sampled data to a specific file, so press <F1>. Press <F4> to perform the measurment without selecting a save file. Auswählen: <>! NEIN ecom-D Page 5...
- Page 6 Press <F2> to print out the values as they are recording in the inter- mediate memory. Press <F3> to initiate the CO bypass, so that the CO sensor is pro- tected against gas concentrations that are too high. ecom-D Page 6...
- Page 7 If the probe is pulled away from the exhaust, an arrow pointing down is displayed, indicating a decrease in temperature. If no temper- ature change is shown for at least 3 seconds, the arrow display will disappear, indicating the lack of change. ecom-D Page 7...
- Page 8 They will be kept there for a later printout and, if need be, for a final data record storage. If a printout of the values needs to be made as the measurement is taking place, simply press <F2> (the complete content of the interme- diate memory will be printed). ecom-D Page 8...
- Page 9 <F3>. You can do this au- tomatically by selecting <Yes> in <Adjustments> / <Internal> / <CO- Automatic>. The sensor can also be manually excluded from the measurement system by pressing <F3>. ecom-D Page 9...
