4.1.2 Positioning the probe, search the core stream

NOTE
The correct positioning of the probe in the gas stream is necessary in
order to achieve an impressive measuring result.
To correctly position the probe in the gas stream, proceed as follows:
•
Connect the probe hose to the device "connection gas temperature"
•
Position the sampling probe in the exhaust channel, so that the thermo-
couple is fully surrounded with the gas.
•
Position the sampling probe in the exhaust channel (Position in the hottest
gas temperature area).
•

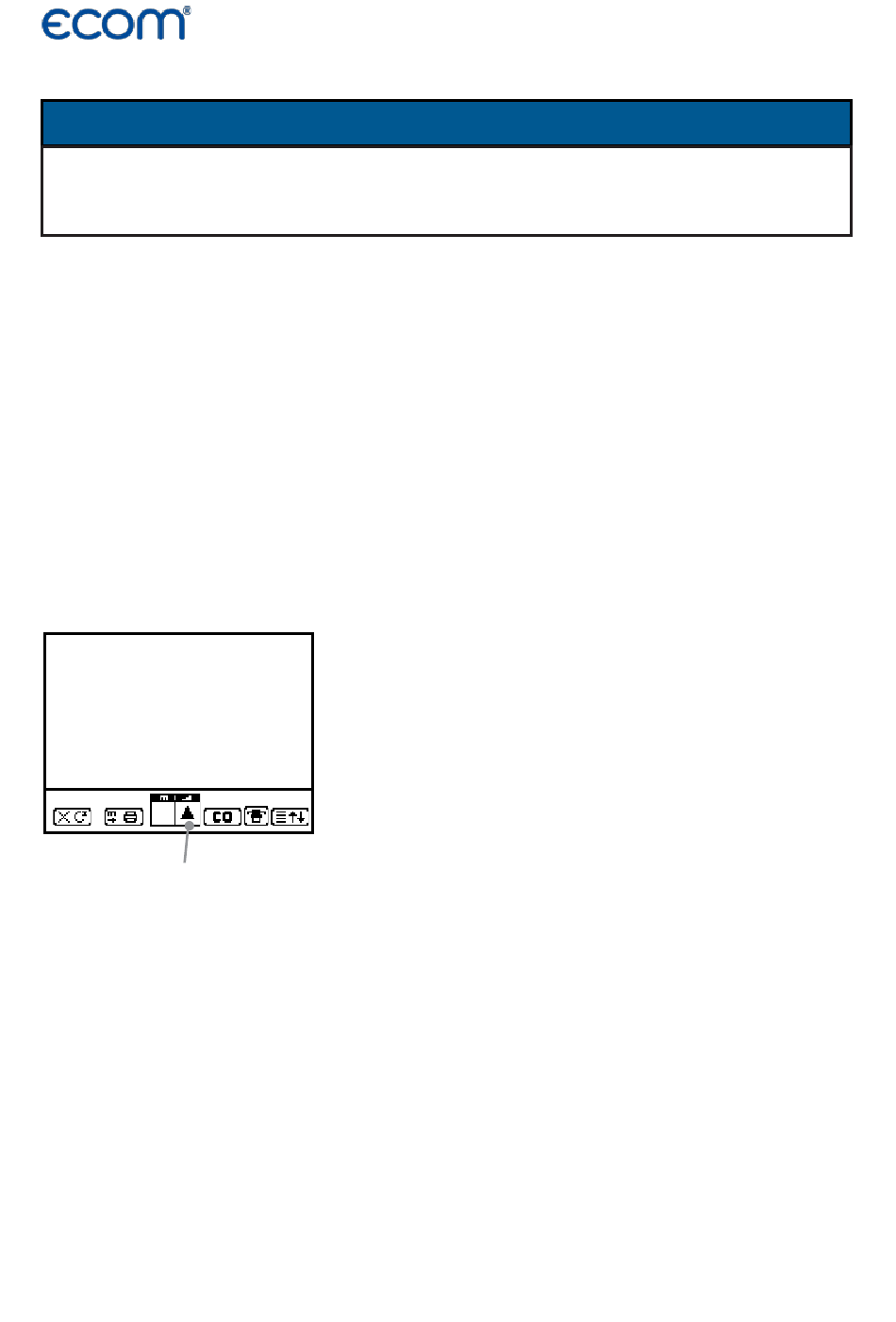

Observe trend for T.Gas in the measurement display.
•
As long as the display shows an arrow in upwards direction, the measured
temperature increases, it means the probe tip moves towards the core
stream center.
•
If an arrow in downwards direction is displayed, it means you move the
probe away from the core stream and the temperature sinks.
O2 3.2 %
CO2 13.1 %
CO
Eff. 92.5 %
Losses 7.5 %
Ecc. air 1.18
T.Gas 184 °C
T.Air
Gas analysis
Core stream search
Page 24
0 ppm
20 °C
ecom-EN3
