Surface losses
P.Boiler 24.5 kW
Width
Depth
Hight
Modify:
Start
Start

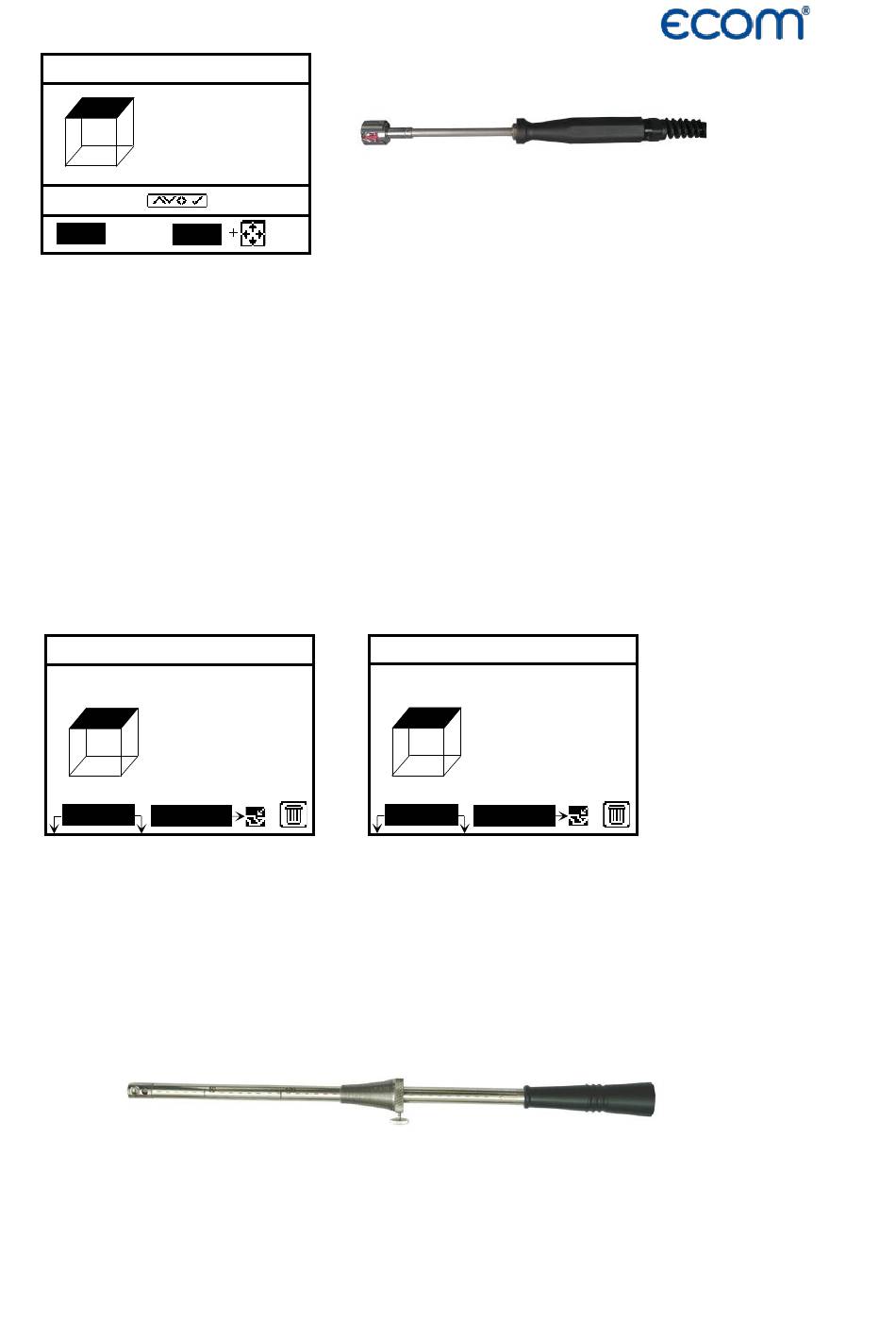

If no boiler dimensions are inputted, press <F1> (Start) to activate the meas-
urement recording. Here the dimensions for all surfaces must be inputted.
Press <F3> (Start + ->) to start the real measurement. Proceed as follows:
• select surface (boiler side) to be measured with <F1> or <F2>
• position surface sensor
• record temperature difference with <Save> - up to 9 values can be rec-
orded per surface out of which a mean value will be calculated automati-
cally
• if necessary, cancel measurements with <F4>
• repeat this procedure for each surface
Surface losses
Wid. ---
-0-
Hei. ---
Surf ---
T.S. ---
T.A. ---
T.S. 21.5 °C
T.A. 21.5 °C
Surfa. Store
Once all surface temperatures have been determined, quit the menu with
<ESC>. The surface losses get automatically calculated. The value conver-
sion in negative points is available in the menu point „Results".
The ventilation loss measurement is performed by a flow probe 30 sec. after
burner switch-off.
ecom-EN3
1.20 m
1.20 m
1.20 m
m
m
m2
°C
°C
Surfa.
Flow probe
Flow probe
Surface losses
Wid. 1.20 m
-1-
Hei. 1.20 m
Surf 1.44 m2
T.S. 40.5 °C
T.A. 21.5 °C
T.S. 42.5 °C
T.A. 21.5 °C
Store
