6. Measurement procedure Diagnostics

6.1 Fault diagnostic

The ecom-EN3 is able to receive and to process information provided via
cable transfer by the ecom-AK (read-out head for digital firing automates).
→ Out of the main menu, select the sub-menu "Fault diagnostic" and confirm
with <Enter>. The ecom-EN3 tries to establish a connection with the
ecom-AK (display message: „Search in process").
By successful attempt, the current burner operation stand is displayed as a
graphic on the display. The operation stand can be recorded (max. 120 sec).
Press <Enter> to initiate a new recording (reset).

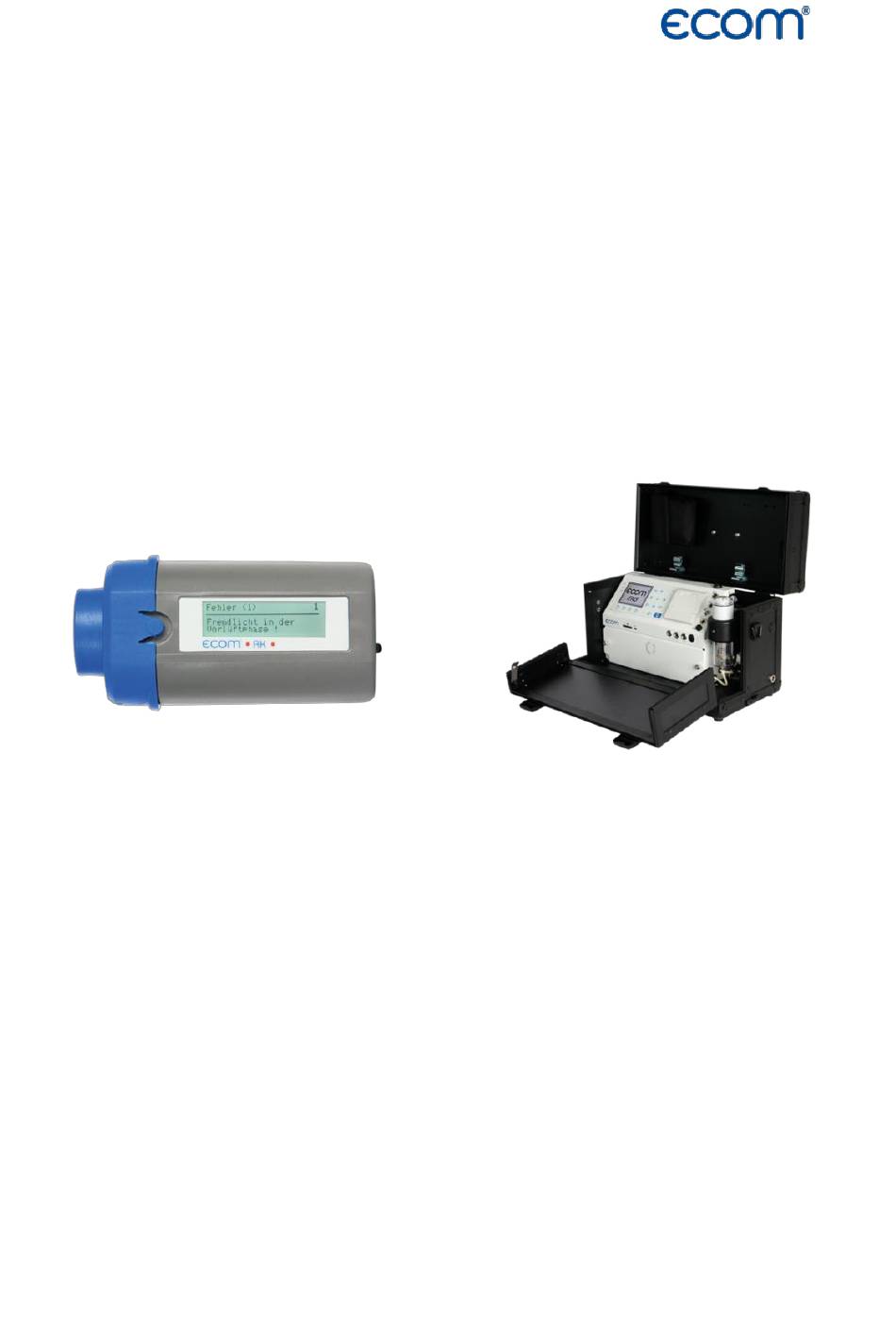

ecom-AK
