• Realizes the electrical isolation between the phase-shift transformer and the power distribution system.
• Provides the power frequency and variable frequency switching function and related electrical protection measures.
A
Illustration 18: Manual Bypass Cabinet
A Manual knife gate switch
B Dual-isolation switch panel

3.3.7.2 Automatic Bypass Cabinet

Illustration 19 shows an automatic bypass cabinet configuration, where:
• KM41–KM43, high-voltage vacuum contactors.
• QS41–QS42, manual separation knife switches.
MCB
HV~
DN41

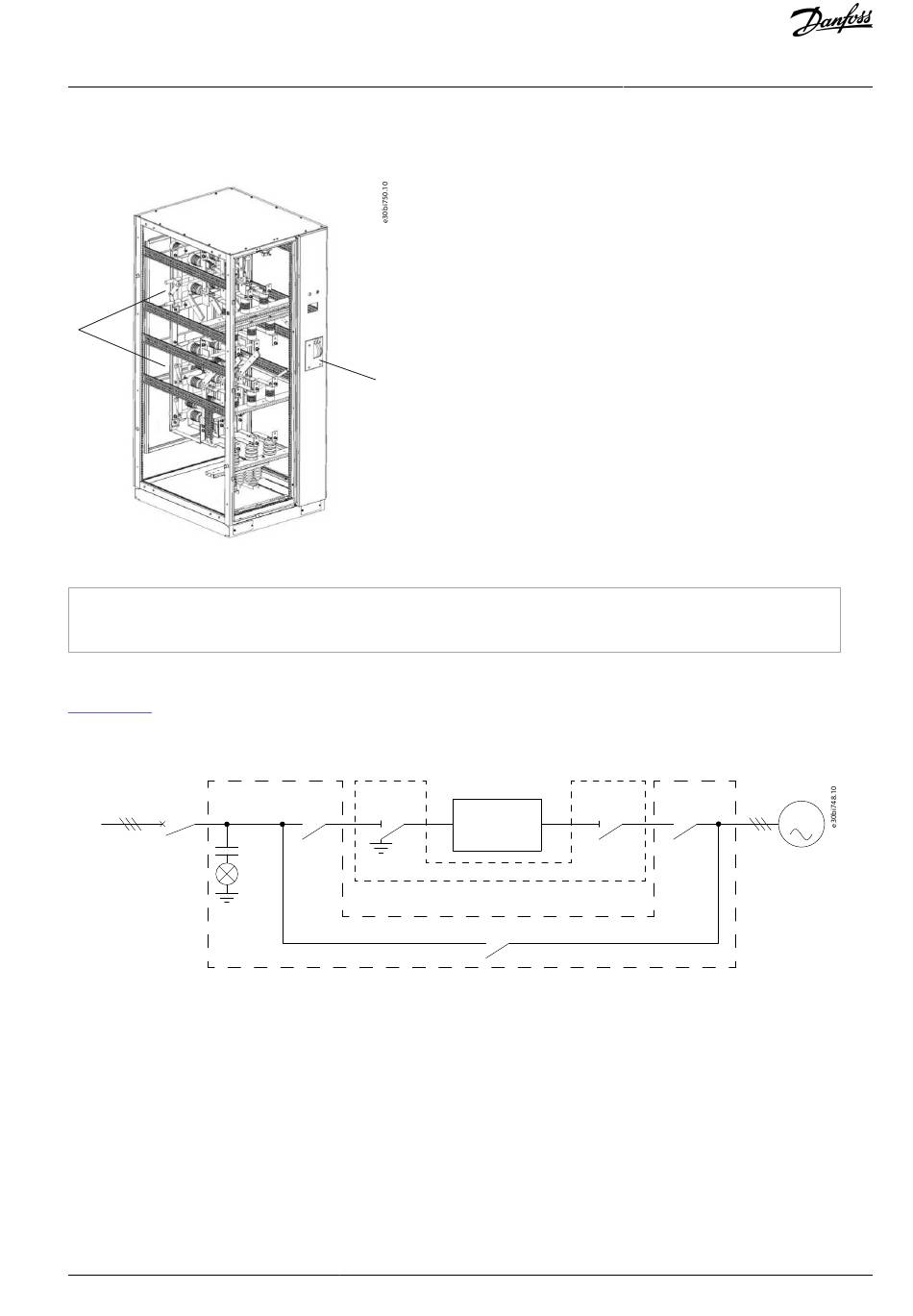

Illustration 19: Automatic Bypass Cabinet Circuit Diagram
When the drive is running:
• QS41 and QS42 are closed.
• KM41 and KM42 are closed.
• KM43 is open.
When the drive is bypassed:
• KM41 and KM42 are open.
• KM43 is closed.
When maintenance is performed on the drive:
