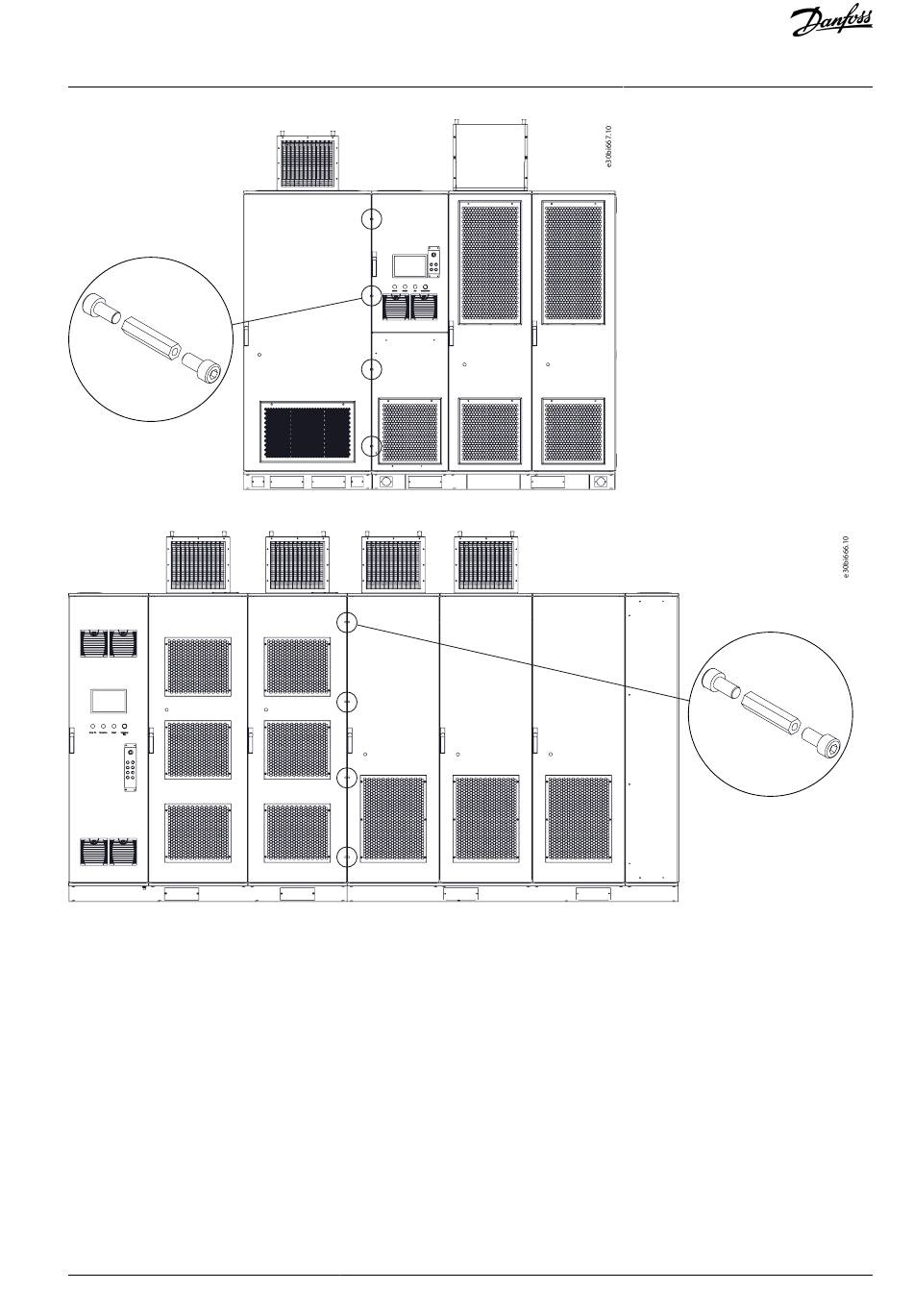

Illustration 36: Attachment Points in Standalone Cabinets
Illustration 37: Attachment Points in Line-up Cabinets
Notice the following points:
•
When handling and installing the cabinet, consider safety protection measures, such as shockproof and moisture proof, to avoid
deformation of the frame and damage to the paint coating.
•
Align the cabinets well before attachment.
•
When attaching the cabinets, the bases of the two cabinets can be leaned against each other completely by using a lifting truck
or chain-reversing hoist before they are fixed.
•
Use M6×40 hexagonal spacers and M6×10 screws to connect the adjacent cabinets.
•
The cabinets must be grounded reliably.
•
The fastening parts used in installation must be standard parts with Zn-Ni alloy plating.
•
If the cabinet is placed against the wall or the depth of the cabinets is different, the hexagonal spacers cannot be used for at-
taching the back side of the cabinet. In this case, use angle steel parts to connect the cabinets.
