Video Configuration

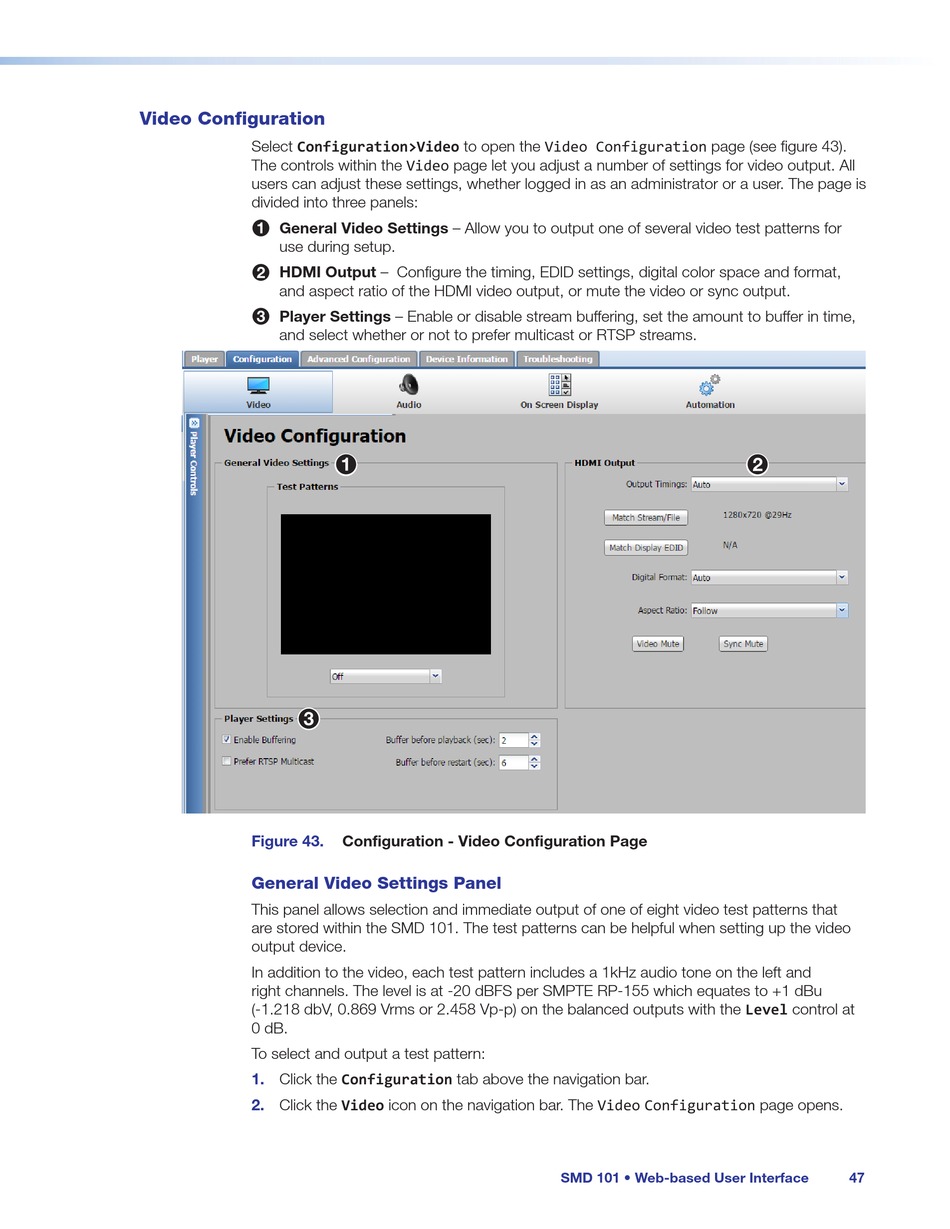

Select Configuration>Video to open the Video Configuration page (see figure 43).
The controls within the Video page let you adjust a number of settings for video output. All
users can adjust these settings, whether logged in as an administrator or a user. The page is
divided into three panels:
General Video Settings – Allow you to output one of several video test patterns for
1
use during setup.
HDMI Output – Configure the timing, EDID settings, digital color space and format,
2
and aspect ratio of the HDMI video output, or mute the video or sync output.
Player Settings – Enable or disable stream buffering, set the amount to buffer in time,
3
and select whether or not to prefer multicast or RTSP streams.
Figure 43.
General Video Settings Panel
This panel allows selection and immediate output of one of eight video test patterns that
are stored within the SMD 101. The test patterns can be helpful when setting up the video
output device.
In addition to the video, each test pattern includes a 1kHz audio tone on the left and
right channels. The level is at -20 dBFS per SMPTE RP-155 which equates to +1 dBu
(-1.218 dbV, 0.869 Vrms or 2.458 Vp-p) on the balanced outputs with the Level control at
0 dB.
To select and output a test pattern:
1. Click the Configuration tab above the navigation bar.
2. Click the Video icon on the navigation bar. The Video Configuration page opens.
Configuration - Video Configuration Page
figure 43
SMD 101 • Web-based User Interface 47
