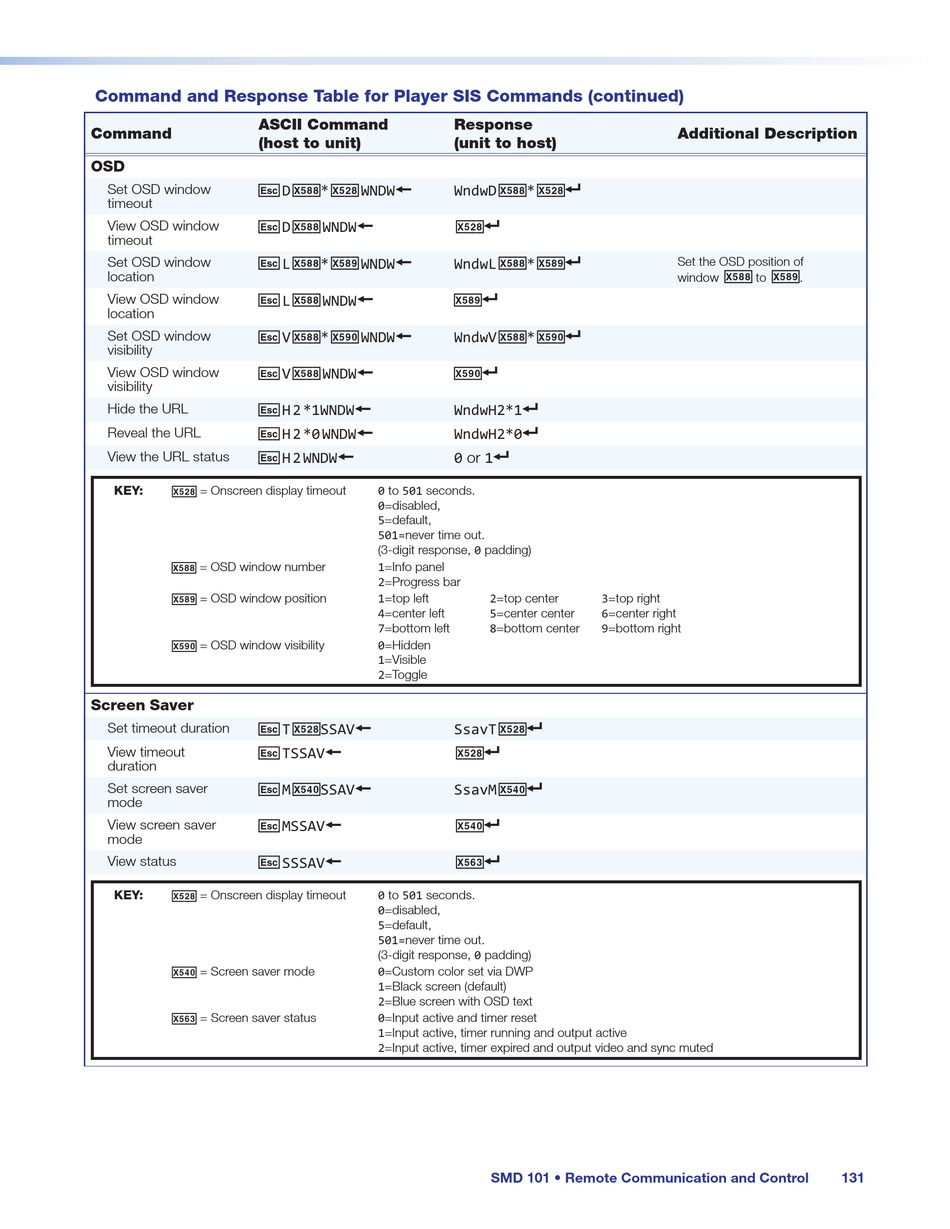

Command and Response Table for Player SIS Commands (continued)
ASCII Command
Command
(host to unit)
OSD
E D X58* * X52* WNDW }
Set OSD window
timeout
E D X58* WNDW }
View OSD window
timeout
E L X58* * X58( WNDW }
Set OSD window
location
E L X58* WNDW }
View OSD window
location
E V X58* * X59) WNDW }
Set OSD window
visibility
E V X58* WNDW }
View OSD window
visibility
E H 2 *1WNDW }
Hide the URL
E H 2 *0 WNDW }
Reveal the URL
E H 2 WNDW }
View the URL status
X52* X52*
KEY: = Onscreen display timeout
X58* X58*
= OSD window number
X58( X58(
= OSD window position
X59) X59)
= OSD window visibility
Screen Saver
E T X52* SSAV }
Set timeout duration
E TSSAV }
View timeout
duration
E M X54) SSAV }
Set screen saver
mode
E MSSAV }
View screen saver
mode
E SSSAV }
View status
X52* X52* = Onscreen display timeout
KEY:
X54) X54)
= Screen saver mode
X56# X56# = Screen saver status
Response
(unit to host)
WndwD X58* * X52*]
X52*]
WndwL X58* * X58(]
X58(]
WndwV X58* * X59)]
X59)]
WndwH2*1 ]
WndwH2*0 ]
0 or 1 ]
0 to 501 seconds.
0=disabled,
5=default,
501=never time out.
(3-digit response, 0 padding)
1=Info panel
2=Progress bar
1=top left 2=top center
4=center left 5=center center
7=bottom left 8=bottom center
0=Hidden
1=Visible
2=Toggle
SsavT X52*]
X52*]
SsavM X54)]
X54)]
X56#]
0 to 501 seconds.
0=disabled,
5=default,
501=never time out.
(3-digit response, 0 padding)
0=Custom color set via DWP
1=Black screen (default)
2=Blue screen with OSD text
0=Input active and timer reset
1=Input active, timer running and output active
2=Input active, timer expired and output video and sync muted
SMD 101 • Remote Communication and Control
Additional Description
Set the OSD position of
X58* X58(
window to
3=top right
6=center right
9=bottom right
.
