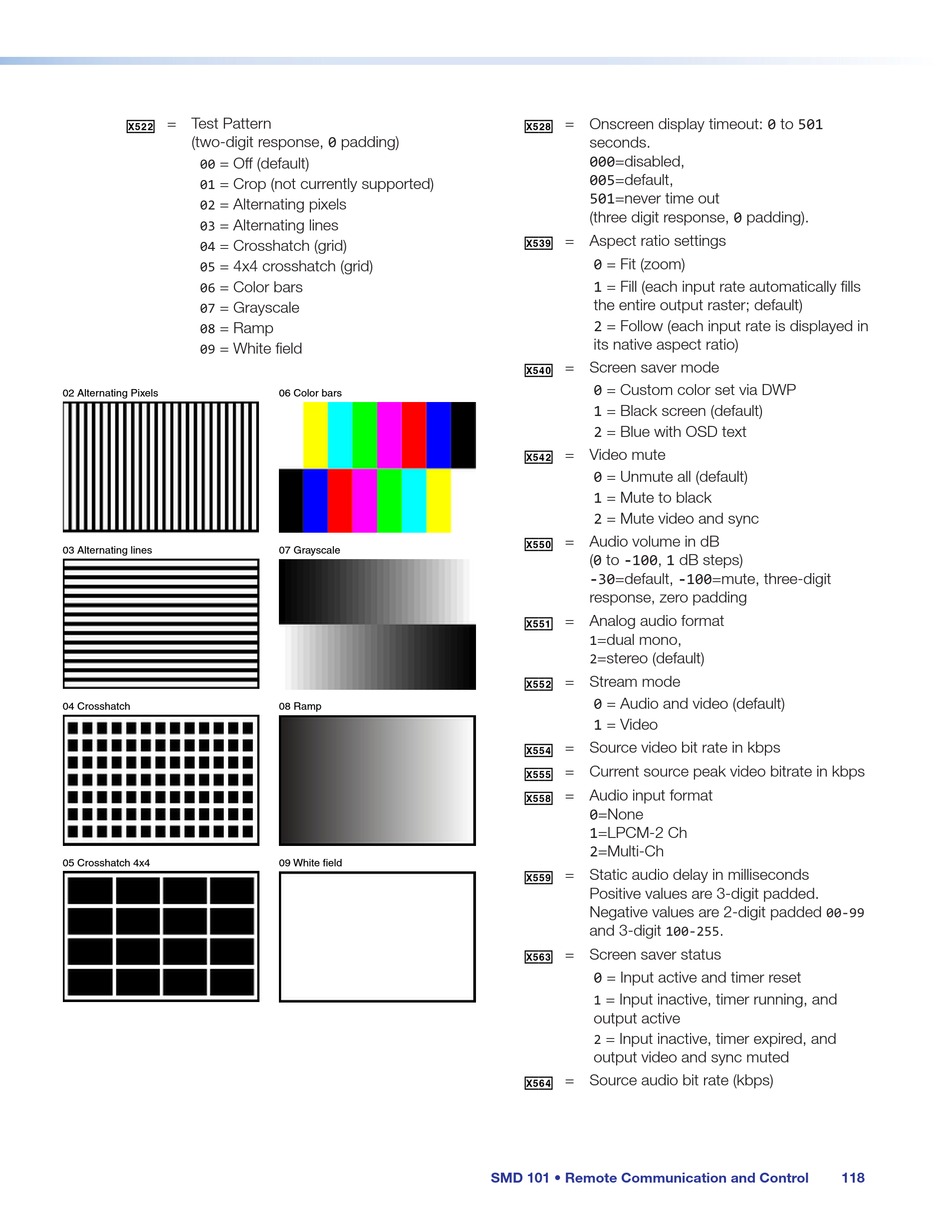

Extron electronics SMD 101 User Manual page 125

= Test Pattern
X52@
(two-digit response, 0 padding)
= Off (default)
00
= Crop (not currently supported)
01
02 = Alternating pixels
= Alternating lines
03
= Crosshatch (grid)
04
= 4x4 crosshatch (grid)
05
= Color bars
06
= Grayscale
07
= Ramp
08
= White field
09
02 Alternating Pixels
03 Alternating lines
04 Crosshatch
05 Crosshatch 4x4
06 Color bars
07 Grayscale
08 Ramp
09 White field
= Onscreen display timeout: 0 to 501
X52*
seconds.
000=disabled,
005=default,
501=never time out
(three digit response, 0 padding).
= Aspect ratio settings
X53(
0 = Fit (zoom)
1 = Fill (each input rate automatically fills
the entire output raster; default)
2 = Follow (each input rate is displayed in
its native aspect ratio)
= Screen saver mode
X54)
0 = Custom color set via DWP
1 = Black screen (default)
2 = Blue with OSD text
= Video mute
X54@
0 = Unmute all (default)
1 = Mute to black
2 = Mute video and sync
= Audio volume in dB
X55)
(0 to -100, 1 dB steps)
-30=default, -100=mute, three-digit
response, zero padding
= Analog audio format
X55!
=dual mono,
1
=stereo (default)
2
= Stream mode
X55@
0 = Audio and video (default)
1 = Video
= Source video bit rate in kbps
X55$
= Current source peak video bitrate in kbps
X55%
= Audio input format
X55*
0=None
1=LPCM-2 Ch
2=Multi-Ch
= Static audio delay in milliseconds
X55(
Positive values are 3-digit padded.
Negative values are 2-digit padded
and 3-digit
100-255
= Screen saver status
X56#
0 = Input active and timer reset
= Input inactive, timer running, and
1
output active
= Input inactive, timer expired, and
2
output video and sync muted
= Source audio bit rate (kbps)
X56$
SMD 101 • Remote Communication and Control
00-99
.
118
