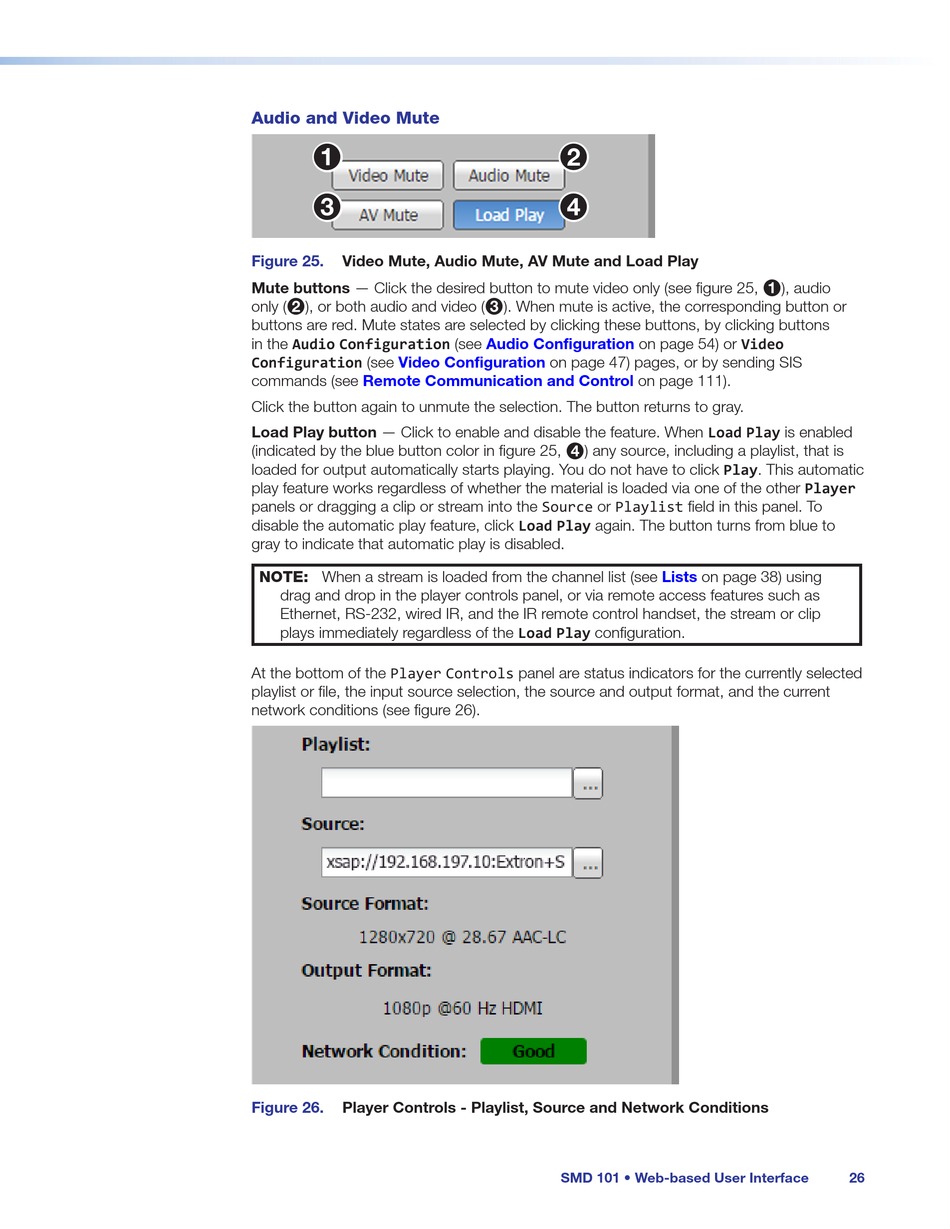

Audio and Video Mute
1 1
3 3
Figure 25. Video Mute, Audio Mute, AV Mute and Load Play
Mute buttons — Click the desired button to mute video only (see figure 25,
only ( ), or both audio and video (
2
buttons are red. Mute states are selected by clicking these buttons, by clicking buttons
in the Audio Configuration (see
Configuration (see Video Configuration
commands (see Remote Communication and Control
Click the button again to unmute the selection. The button returns to gray.
Load Play button — Click to enable and disable the feature. When Load Play is enabled
(indicated by the blue button color in figure 25,
loaded for output automatically starts playing. You do not have to click Play. This automatic
play feature works regardless of whether the material is loaded via one of the other Player
panels or dragging a clip or stream into the Source or Playlist field in this panel. To
disable the automatic play feature, click Load Play again. The button turns from blue to
gray to indicate that automatic play is disabled.
NOTE: When a stream is loaded from the channel list (see
drag and drop in the player controls panel, or via remote access features such as
Ethernet, RS-232, wired IR, and the IR remote control handset, the stream or clip
plays immediately regardless of the Load Play configuration.
At the bottom of the Player Controls panel are status indicators for the currently selected
playlist or file, the input source selection, the source and output format, and the current
network conditions (see figure 26).
Figure 26. Player Controls - Playlist, Source and Network Conditions
2 2
4 4
). When mute is active, the corresponding button or
3
Audio Configuration on page 54) or Video
on page 47) pages, or by sending SIS
on page 111).
) any source, including a playlist, that is
4
