Ethernet Diagnostics
The Ethernet Diagnostics panel (see figure 90,
ping utility for troubleshooting network connection issues.
To test a device for network connection:
1. In the Address to ping: field (see figure 91,
be tested (Example: 192.168.3.51 above and 169.254.7.239 below) or a complete
host name (Example: www.extron.com) in this field.
1 1 1
192.168.3.51
2 2 2
6 6 6
169.254.7.239

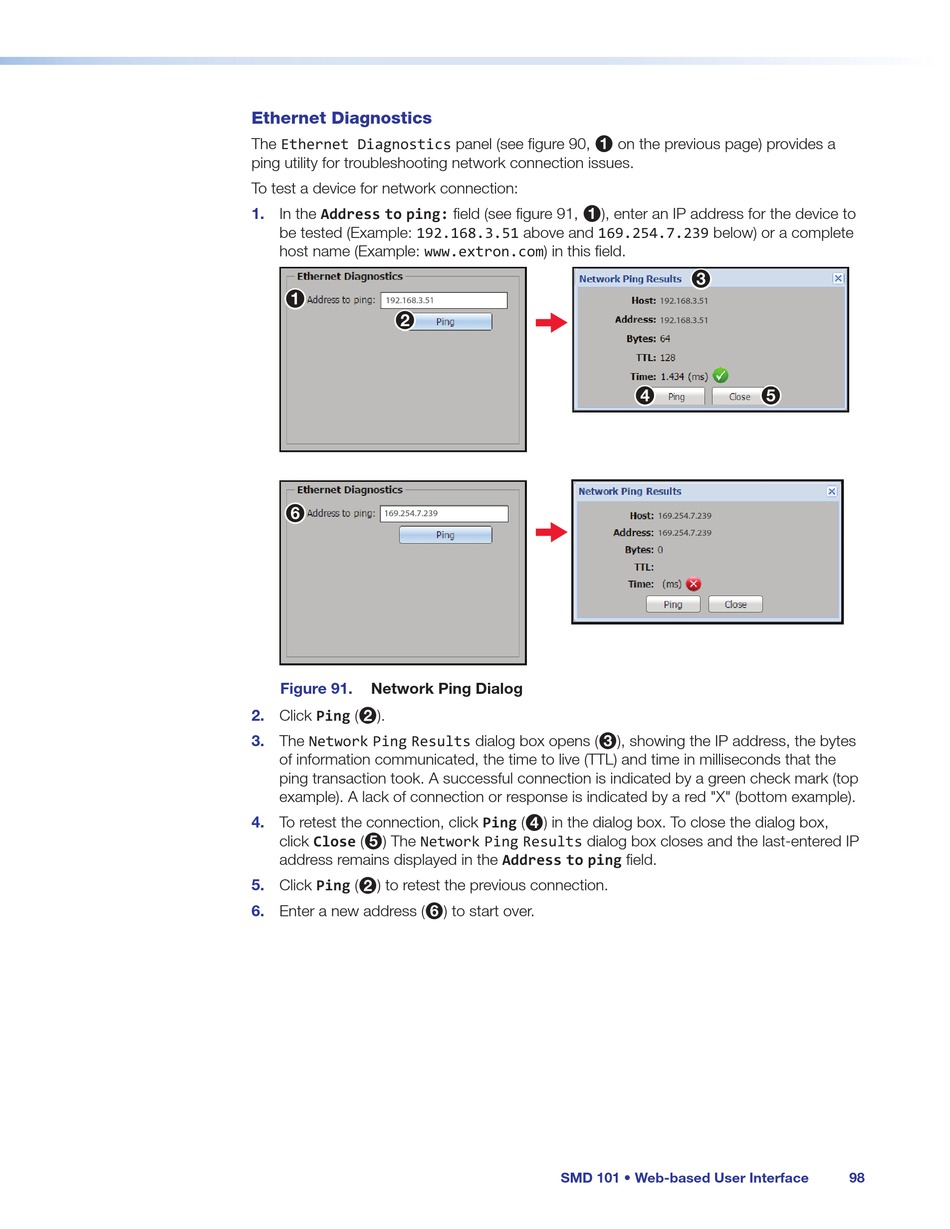

Figure 91. Network Ping Dialog
2.
Click Ping ( ).
2
3. The Network Ping Results dialog box opens (
of information communicated, the time to live (TTL) and time in milliseconds that the
ping transaction took. A successful connection is indicated by a green check mark (top
example). A lack of connection or response is indicated by a red "X" (bottom example).
4. To retest the connection, click Ping (
click Close ( ) The Network Ping Results dialog box closes and the last-entered IP
5
address remains displayed in the Address to ping field.
5.
Click Ping ( ) to retest the previous connection.
2
6. Enter a new address (
6
on the previous page) provides a
1
), enter an IP address for the device to
1
), showing the IP address, the bytes
3
) in the dialog box. To close the dialog box,
4
) to start over.
