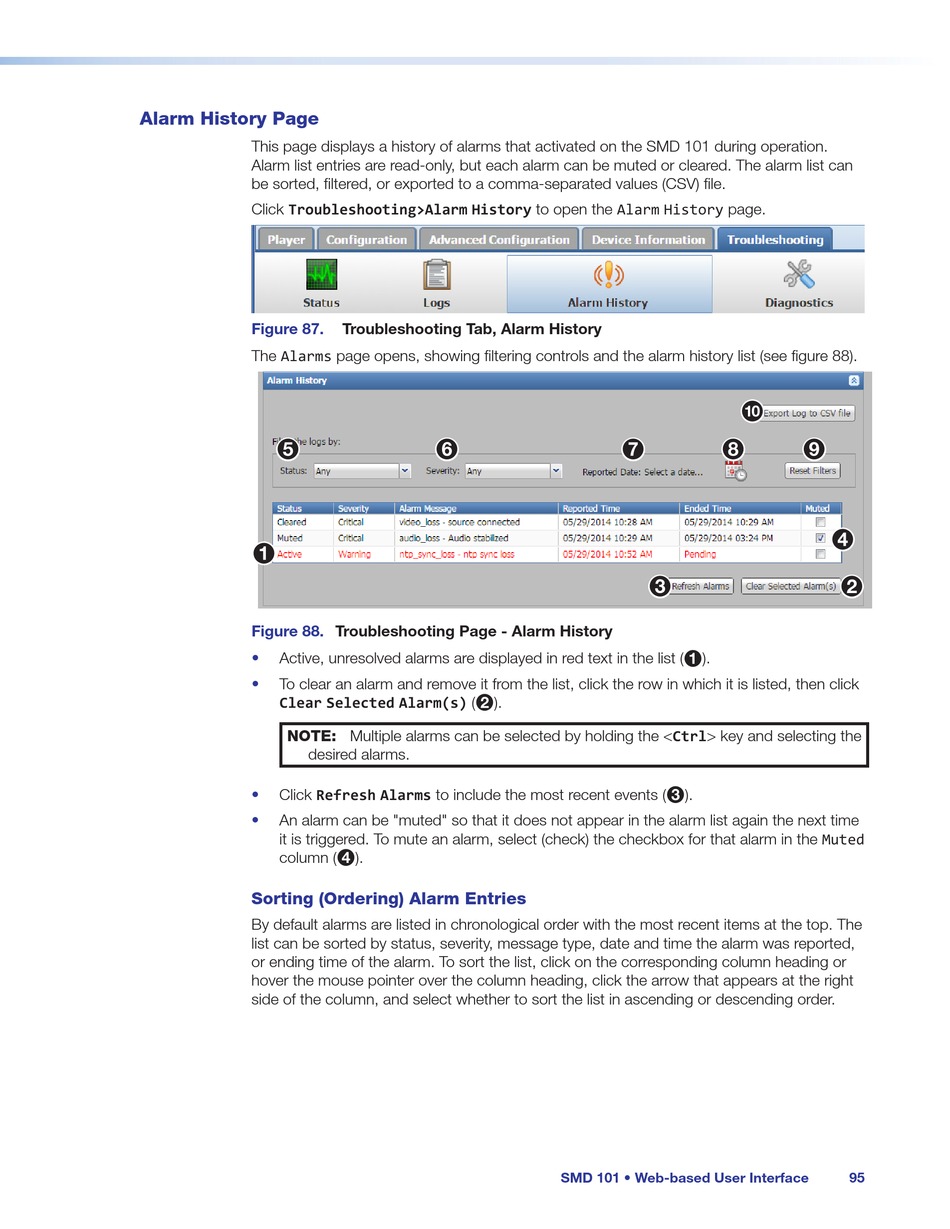

Alarm History Page
This page displays a history of alarms that activated on the SMD 101 during operation.
Alarm list entries are read-only, but each alarm can be muted or cleared. The alarm list can
be sorted, filtered, or exported to a comma-separated values (CSV) file.
Click Troubleshooting>Alarm History to open the Alarm History page.
Figure 87.
The Alarms page opens, showing filtering controls and the alarm history list (see figure 88).
5
5
1
1
Figure 88.
•
Active, unresolved alarms are displayed in red text in the list (
•
To clear an alarm and remove it from the list, click the row in which it is listed, then click
Clear Selected Alarm(s) (
NOTE: Multiple alarms can be selected by holding the <Ctrl> key and selecting the
desired alarms.
•
Click Refresh Alarms to include the most recent events (
•
An alarm can be "muted" so that it does not appear in the alarm list again the next time
it is triggered. To mute an alarm, select (check) the checkbox for that alarm in the Muted
column (
Sorting (Ordering) Alarm Entries
By default alarms are listed in chronological order with the most recent items at the top. The
list can be sorted by status, severity, message type, date and time the alarm was reported,
or ending time of the alarm. To sort the list, click on the corresponding column heading or
hover the mouse pointer over the column heading, click the arrow that appears at the right
side of the column, and select whether to sort the list in ascending or descending order.
Troubleshooting Tab, Alarm History
6
6
Troubleshooting Page - Alarm History
).
2
).
4
figure 88
7
7
3
3
1
).
3
SMD 101 • Web-based User Interface
¢
¢
8
8
9
9
4
4
2
2
).
95
