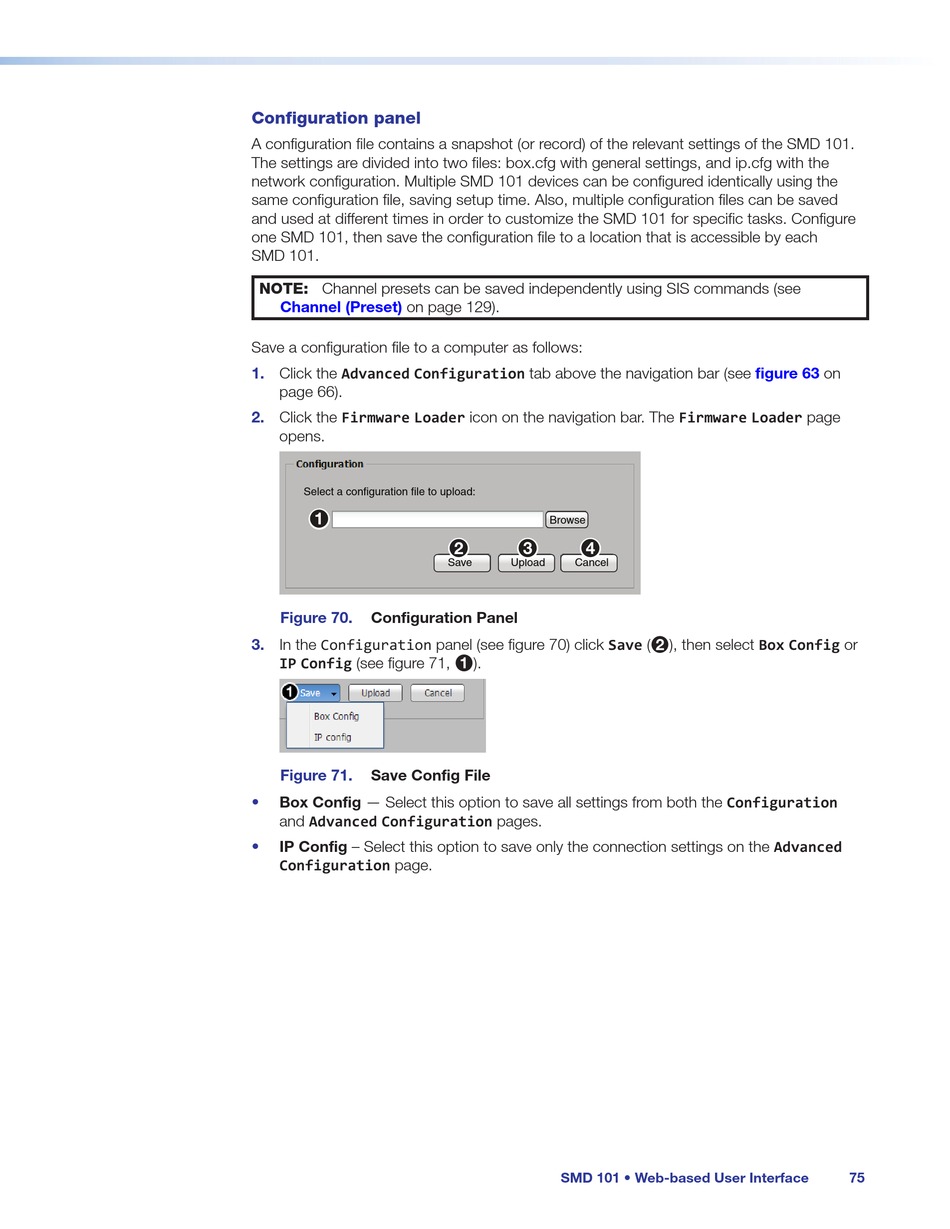

Configuration panel
A configuration file contains a snapshot (or record) of the relevant settings of the SMD 101.
The settings are divided into two files: box.cfg with general settings, and ip.cfg with the
network configuration. Multiple SMD 101 devices can be configured identically using the
same configuration file, saving setup time. Also, multiple configuration files can be saved
and used at different times in order to customize the SMD 101 for specific tasks. Configure
one SMD 101, then save the configuration file to a location that is accessible by each
SMD 101.
NOTE: Channel presets can be saved independently using SIS commands (see
Channel (Preset) on page 129).
1 1 1
Current Firmware Version: 2.01.0000
Save a configuration file to a computer as follows:
Select a firmware file to upload:
1. Click the Advanced Configuration tab above the navigation bar (see
2 2 2
page 66).
2. Click the Firmware Loader icon on the navigation bar. The Firmware Loader page
3 3 3
opens.
Select a configuration file to upload:
1 1 1
Figure 70. Configuration Panel
In the Configuration panel (see figure 70) click Save (
3.
IP Config (see figure 71,
Figure 71. Save Config File
• Box Config — Select this option to save all settings from both the Configuration
and Advanced Configuration pages.
• IP Config – Select this option to save only the connection settings on the Advanced
Configuration page.
Browse
4 4 4 5 5 5
Upload Cancel
Browse
2 2 2 3 3 3 4 4 4
Save Upload Cancel
).
1
SMD 101 • Web-based User Interface
figure 63 on
), then select Box Config or
2
75
