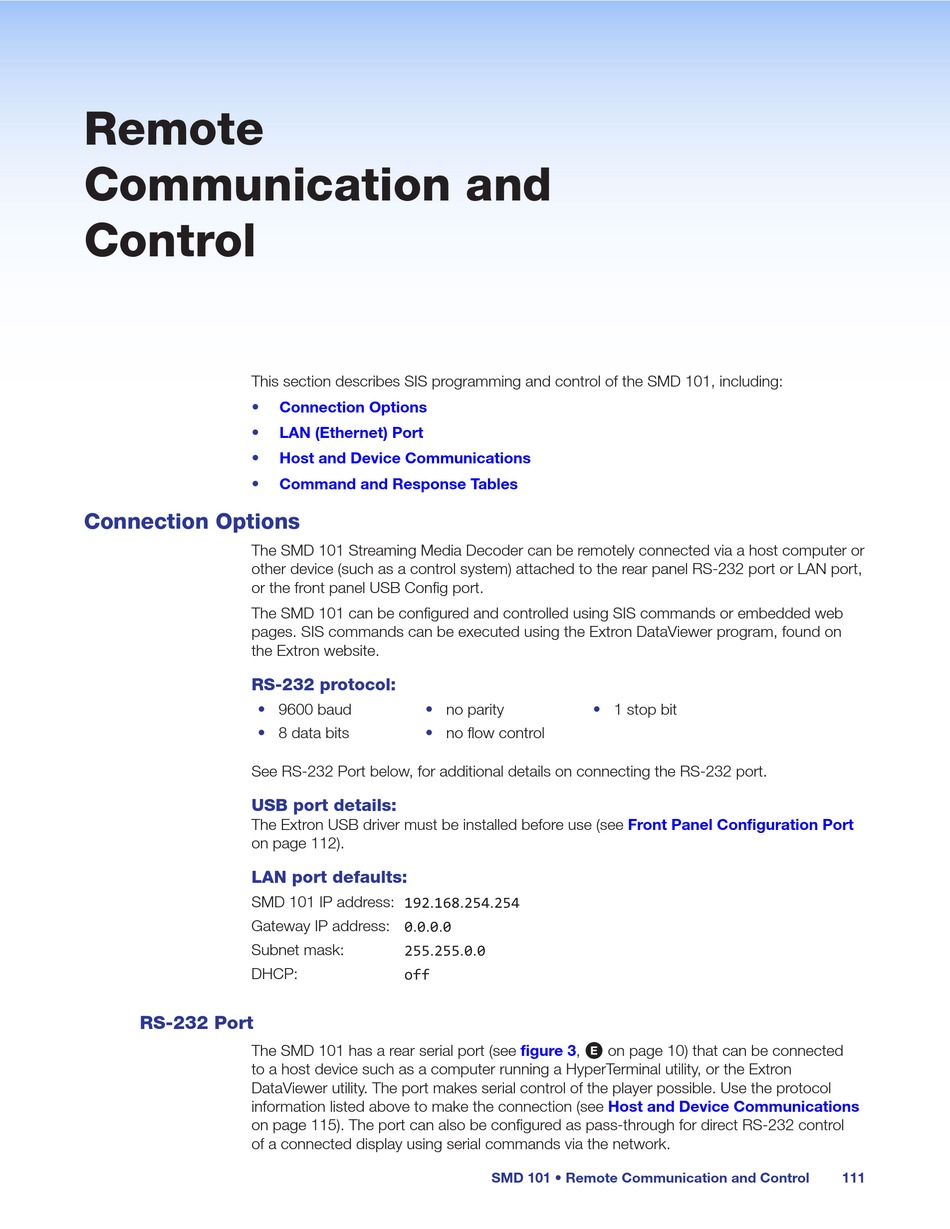

Remote
Communication and
Control
This section describes SIS programming and control of the SMD 101, including:
•
•
•
•

Connection Options

The SMD 101 Streaming Media Decoder can be remotely connected via a host computer or
other device (such as a control system) attached to the rear panel RS-232 port or LAN port,
or the front panel USB Config port.
The SMD 101 can be configured and controlled using SIS commands or embedded web
pages. SIS commands can be executed using the Extron DataViewer program, found on
the Extron website.
RS-232 protocol:
•
•
See RS-232 Port below, for additional details on connecting the RS-232 port.
USB port details:
The Extron USB driver must be installed before use (see
on page 112).
LAN port defaults:
SMD 101 IP address: 192.168.254.254
Gateway IP address: 0.0.0.0
Subnet mask:
DHCP:

RS-232 Port

The SMD 101 has a rear serial port (see
to a host device such as a computer running a HyperTerminal utility, or the Extron
DataViewer utility. The port makes serial control of the player possible. Use the protocol
information listed above to make the connection (see
on page 115). The port can also be configured as pass-through for direct RS-232 control
of a connected display using serial commands via the network.
Connection Options
LAN (Ethernet) Port
Host and Device Communications
Command and Response Tables
9600 baud no parity
•
8 data bits • no flow control
255.255.0.0
off
1 stop bit
•
Front Panel Configuration Port
figure 3, on page 10) that can be connected
E
Host and Device Communications
SMD 101 • Remote Communication and Control 111
