Diagnostics Page

The Diagnostics page provides a convenient way to test network connections using a
ping utility and a trace route (tracert) function. It also allows you to generate a log file that
you can send to Extron support staff to aid in troubleshooting problems with the unit or the
system.
Figure 89.

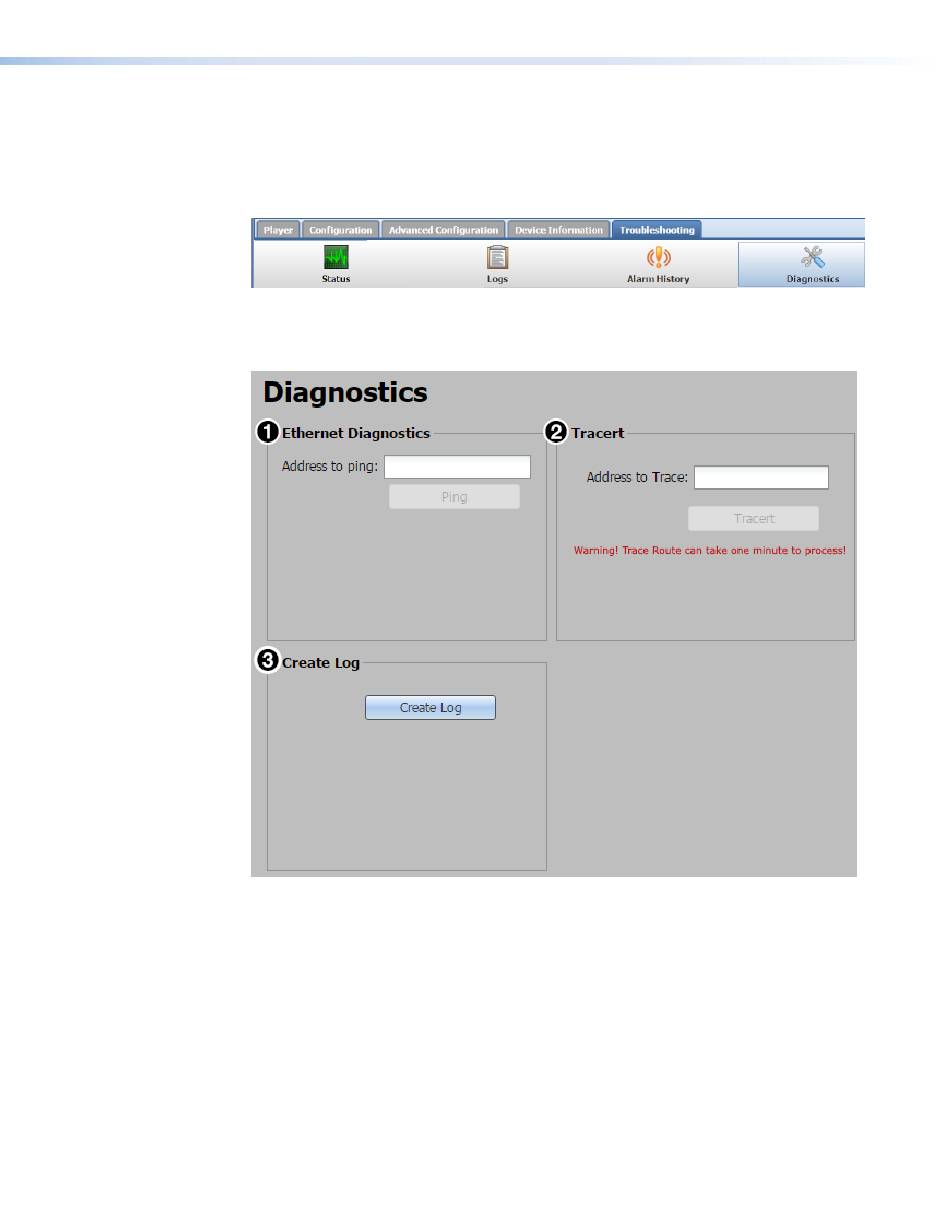

Click the Diagnostics icon on from the Troubleshooting tab (see figure 89) to open the
Diagnostics page (see figure 90).
Figure 90.
figure 90
Network Ping Dialog
Diagnostics Page
SMD 101 • Web-based User Interface 97
