4.
5.
6.
7.
NOTE: There are three SIS commands you may find useful at this point:

LAN (Ethernet) Port

The rear panel LAN connector on the device can be connected to an Ethernet LAN or WAN.
Communication between the device and the controlling PC is via Telnet (a TCP socket
using port 23). The Telnet port can be changed, if necessary, via SIS or using the SMD 101
user interface. This connection makes SIS control of the device possible using a computer
connected to the same LAN or WAN. The SIS commands and behavior of the product are
common to the commands and behavior the product exhibits when communicating by
serial port or USB.
Ethernet Connection
The Ethernet cable can be terminated as a straight-through cable or a crossover cable and
must be properly terminated for your application (see figure 103).
•
•
Select Install the software automatically (Recommended) (see figure 102,
on the previous page).
NOTE: You do not need to insert an installation disc.
Click Next ( ).
2
The PC locates the driver and installs it.
When the Completed dialog opens, click Finish to close the wizard.
NOTE: The wizard opens only on the first occasion you connect the SMD 101 to a
USB port. The wizard reopens only if you connect the SMD 101 to a different USB
port or if you connect a different piece of equipment, requiring a different driver, to
the same USB port.
Configure the SMD 101 as required.
•
E CI returns the current IP address.
}
• E enables DHCP mode.
1DH }
• E must be sent after the above commands to restart the network
2BOOT }
interface and apply the changes.
Use DataViewer (see DataViewer
results.
Crossover cable — Direct connection between the computer and the SMD 101.
Patch (straight) cable — Connection of the SMD 101 to an Ethernet LAN.
Pins:
Crossover Cable
12345678
(for direct connection to a PC)
End 1
Pin Wire Color
1 white-orange
2 orange
3 white-green
4 blue
5 white-blue
6 green
7 white-brown
8 brown
Insert Twisted
T568A
Pair Wires
A cable that is wired as TIA/EIA T568A at one
RJ-45
end and T568B at the other (Tx and Rx pairs
Connector
reversed) is a "crossover" cable.

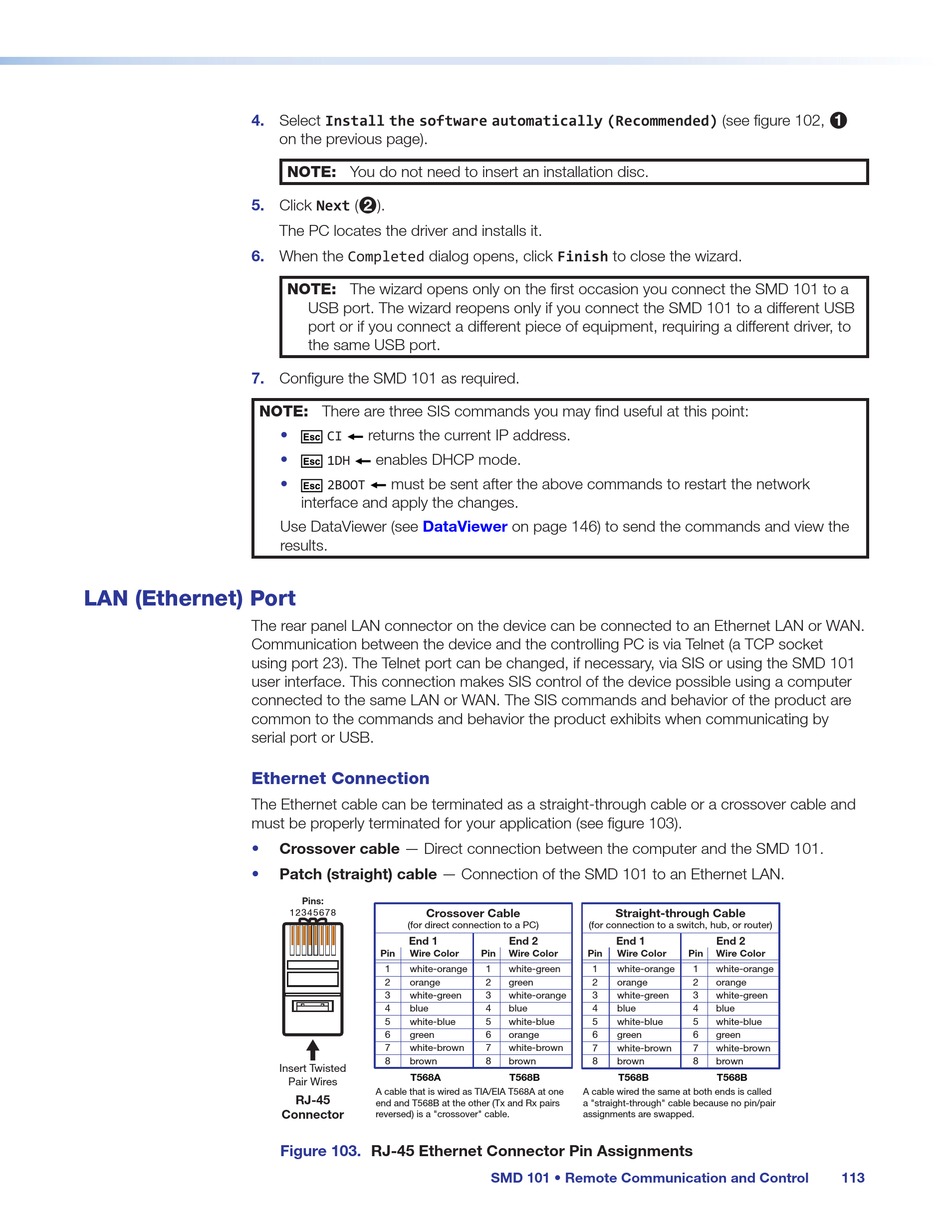

Figure 103.

RJ-45 Ethernet Connector Pin Assignments
on page 146) to send the commands and view the
Straight-through Cable
(for connection to a switch, hub, or router)
End 2 End 1
Pin Wire Color Pin Wire Color
1 white-green 1 white-orange
2 green 2 orange
3 white-orange 3 white-green
4 blue 4 blue
5 white-blue 5 white-blue
6 orange 6 green
7 white-brown 7 white-brown
8 brown 8 brown
T568B T568B
A cable wired the same at both ends is called
a "straight-through" cable because no pin/pair
assignments are swapped.
SMD 101 • Remote Communication and Control
1
End 2
Pin Wire Color
1 white-orange
2 orange
3 white-green
4 blue
5 white-blue
6 green
7 white-brown
8 brown
T568B
113
