Setting Tool
Tool settings are "09U" secured.
Setting Offset
The offset setting adjusts the correction amount of the blade used during cutting. Program tool conditions by tool type
as the standard. (Refer to the previous "Blade Type Names, Displayed Blade Types, and Offset Values".)
Refer to "2.15 Cutting Test" and adjust accordingly.
(Setting Range: -5 to +5)

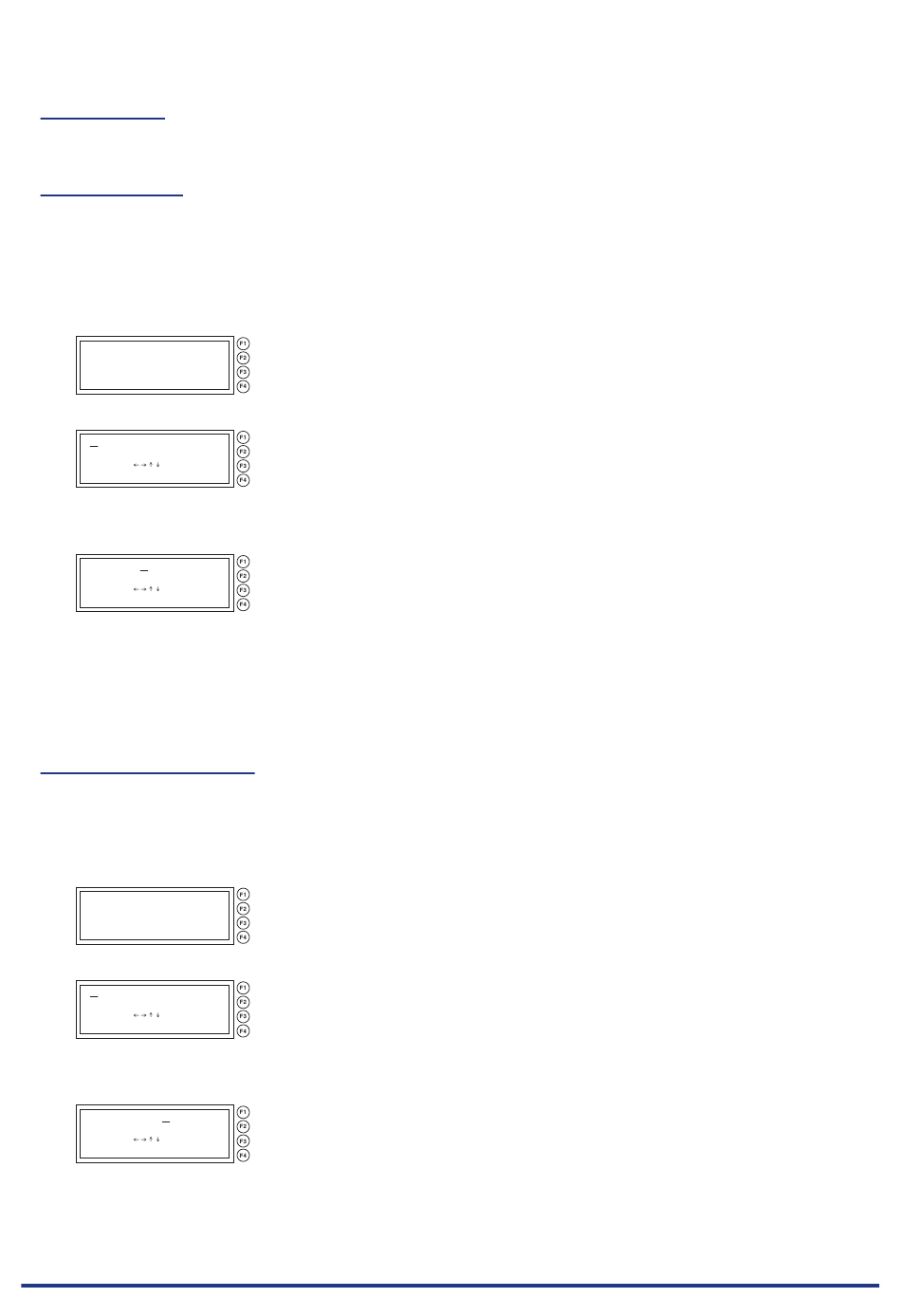

(1) Press the TOOL COND. key from the READY status and the below message will display.
T O O L C O N D I T I O N S >
T E S T C U T >
C U T T I N G W I D T H >
(2) Press the F1 key (TOOL CONDITIONS), and the below message will display.
< 1 0 9 U + 1 1 4 3 0 2 >
[ C O N D I T I O N N O . ]
S E L E C T :
Y E S : E N T E R N O : E S C
*The displayed content will vary depending on the selected tool condition setting area.
(3) Press the POSITION keys (◄►) to go to offset settings.
< 1 0 9 U + 1 1 4 3 0 2 >
[ O F F S E T ]
S E L E C T :
Y E S : E N T E R N O : E S C
(4) Press the POSITION keys (▲ ▼) to change offset.
The settable range is -5 to +5.
(5) If the programmed content is acceptable, press the ENTER key.
If you press the LOCAL key before again pressing the ENTER key, the condition settings mode will be cleared.
Setting Cutting Force
The cutting force setting adjusts the cutting force during cutting. Program tool conditions by label material type and tool
type as the standard. (Refer to the previous "Tool Conditions by Tool Type".)
(Setting range: 1 - 31)
(1) Press the TOOL COND. key from the READY status and the below message will display.
T O O L C O N D I T I O N S >
T E S T C U T >
C U T T I N G W I D T H >
(2) Press the F1 key (TOOL CONDITIONS), and the below message will display.
< 1 0 9 U + 1 1 4 3 0 2 >
[ C O N D I T I O N N O . ]
S E L E C T :
Y E S : E N T E R N O : E S C
*The displayed content will vary depending on the selected tool condition setting area.
(3) Press the POSITION keys (◄►) to go to cutting force setting.
< 1 0 9 U + 1 1 4 3 0 2 >
[ F O R C E ]
S E L E C T :
Y E S : E N T E R N O : E S C
(4) Press the POSITION keys (▲ ▼) to change cutting force.
The settable range is 1 - 31.
(5) If the programmed content is acceptable, press the ENTER key.
If you press the LOCAL key before again pressing the ENTER key, the condition settings mode will be cleared.
Chapter 2 Preparation for Printing
2-49
