Chapter 4 Menu Operation
(6) Press the ENTER key, and 5 pages of crosses (+) for the adjustment reading are printed.
(7) Read the "Start Mark" and "Registration Mark", then cut the adjustment cross (+) on the first age with the cutter pen
set in the tool carriage.
(8) After the cut, the following is displayed.
P O S I T I O N A D J U S T M E N T
X - P O S I T I O N A D J >
Y - P O S I T I O N A D J >
C U T C O N F I R M A T I O N >

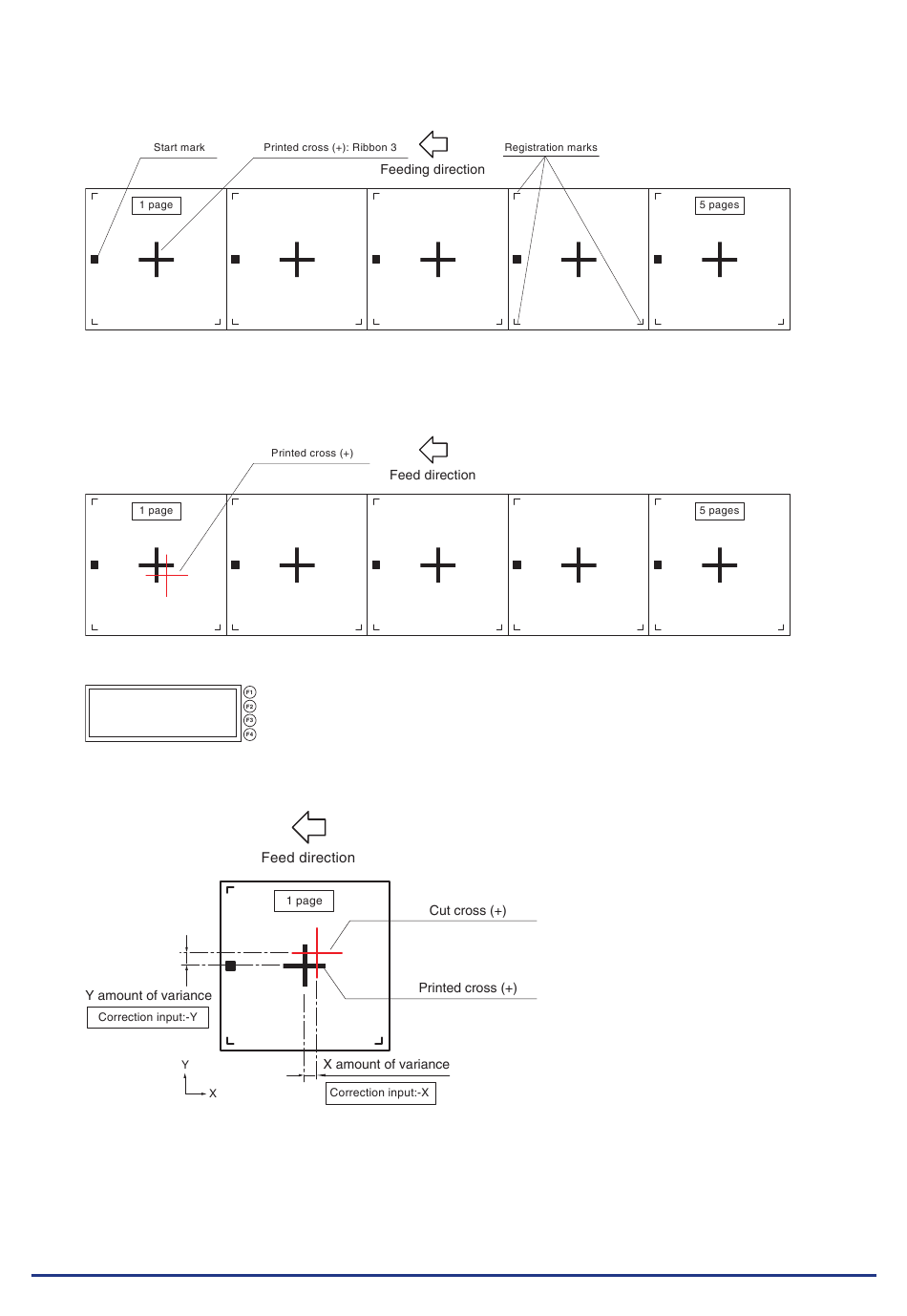

(9) Based on the crosses (+) for the correction reading that was read, measure how far you must slide the correction
crosses (+) cut for comparison so that they overlap (cut the center of the printed crosses (+)), and record the value.
For example in the above illustration, direction x and direction y are both misaligned in direction plus (+). As such,
it is necessary to correct to direction minus (–).
Each correction value will become a negative value.
