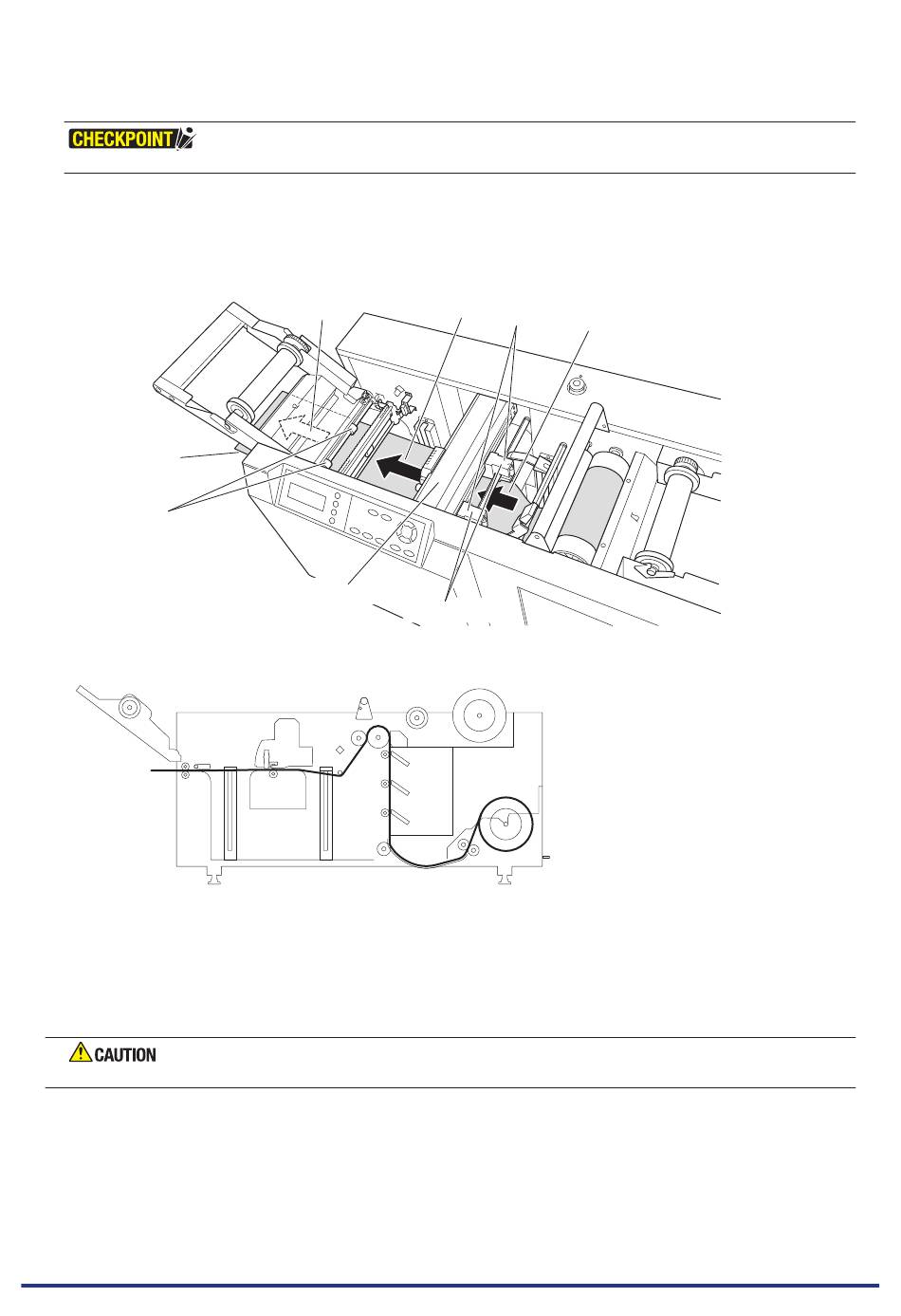

(5) Open the separator suppression unit and pull the label materials out to the outlet.
Pass through the cutter unit. (Step 1)
In this case, match the position of the push roller. (Step 2) (Refer to "2.7 Setting the Push Roller".)
Pass through the separator section and label materials until the outlet. (Step 3 & 4)
Adjust and match the roller of the separator unit outlet to both ends. (Step 5)
Pull out from the outlet
Step 5
The route is as shown below.
When using the separator
When using the separator, it is possible to set it at this phase. When setting, set in the separator section before setting
the dancer roller. (Refer to "2.10 Using the Separator".)
After setting the label materials, roll the media stocker flange and don't wind back the label materials.
Winding back forcibly could result in a malfunction.
When passing through the label materials, make sure the cam lever, separator, and separator
suppression unit are open.
Step 4
Cutter unit
Step 3
Step 2
Step 1
Push roller
Chapter 2 Preparation for Printing
2-19
