(5) Press the F2 key (DISTANCE ADJ.) and the below message will display.
D I S T A N C E A D J .
1 9 0 . 0 m m < 0 . 0 > m m
A D J U S T :
Y E S : E N T E R N O : E S C

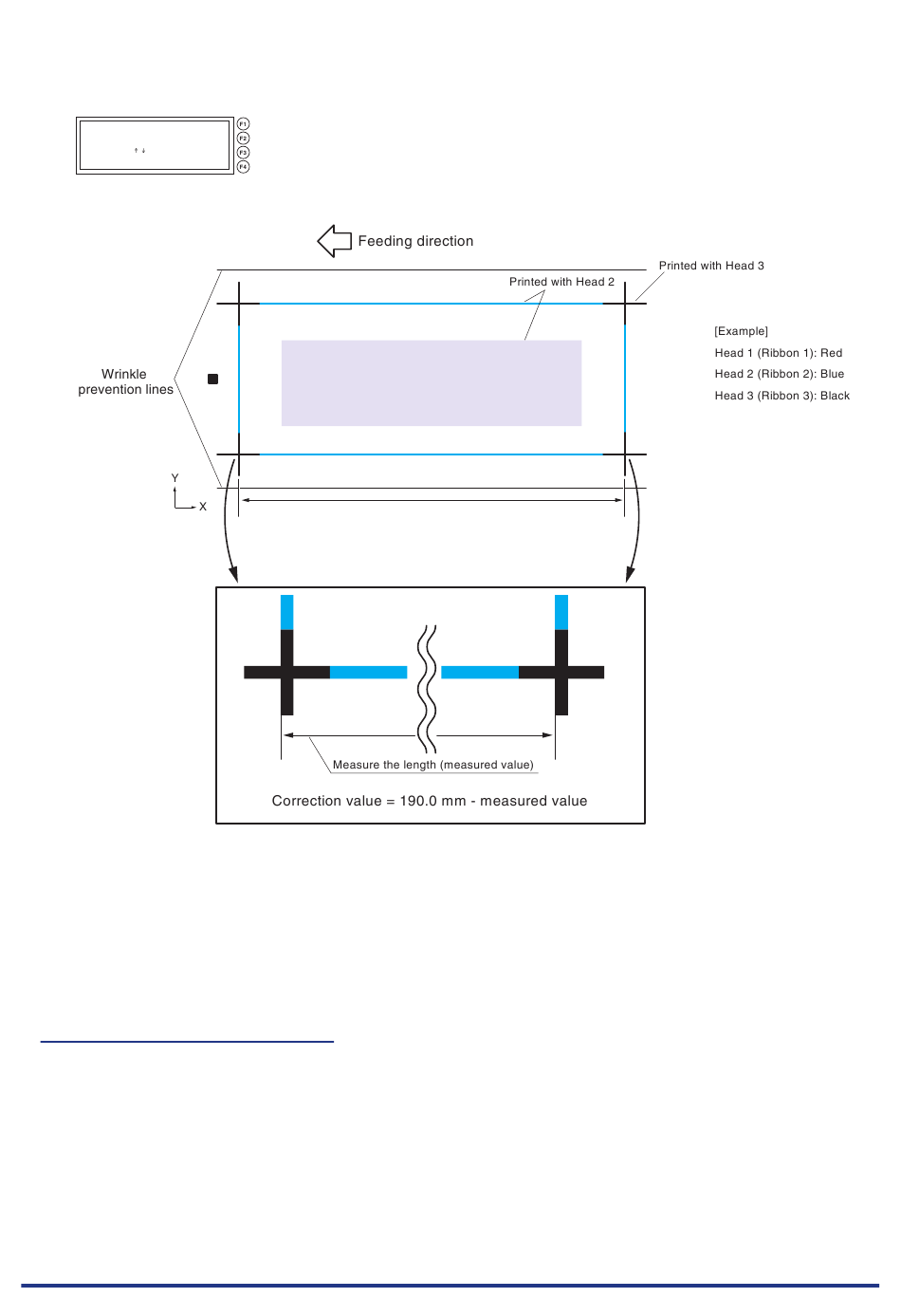

Printing was done with previous adjustment pattern print, results are estimated.
For example in the above illustration, the correction value becomes negative when "correction value = 190.0 mm -
measured value" and the measured value was made 190.5 mm. (Correction Value: Input as -0.5 mm)
(6) Change the numerical value (-1.5 to +1.5) with the POSITION keys (▲ ▼) and program the correction value.
Press ENTER to confirm and return to the previous screen.
Press the ESC key to return to the previous screen.
Correcting with User Patterns
Perform the following below when printing data that solves the media sending directional distance (not the adjustment
pattern print) and programming the distance adjustment value.
(1) Print the data that solves the correct media sending directional distance. (Temporarily assumes length is L0.)
(2) Measures printing results of (1). (Temporarily assumes length was L1.)
(3) Converts to the 190 mm-based setting value with the below corresponding conversion formula.
Setting value (n:mm) = 190 - (190 x (L1/L0))
(4) Program the requested n value in the "DISTANCE ADJ." menu.
Chapter 4 Menu Operation
4-27
