Chapter 5 Replacing Consumable Items
5.1
Replacing Laminate Materials
This section explains replacing laminate materials.
Replacing

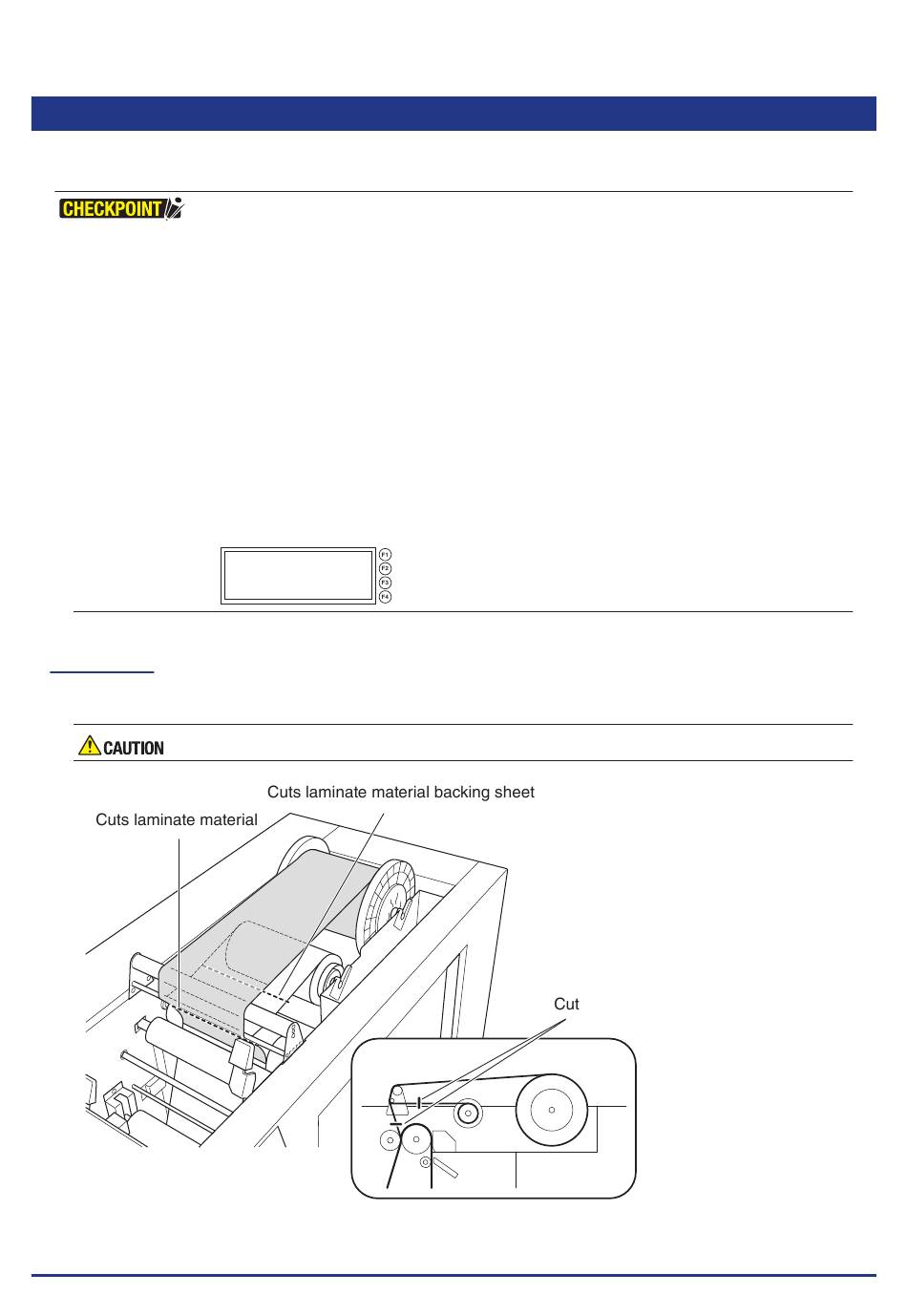

(1) Cut the laminate materials and remove from the label materials. Cut the laminate material backing sheet.
5-2
When the laminate materials have been replaced with a different type, it is necessary to change the
settings/adjustment. Refer to "5.5 Setting/Adjustment During Replacement" for details.
Always set the laminate material and backing sheet roll-up form tube for use. The roll-up form
tubes are designed to roll up one new laminate material. If replenishing in the middle of a roll-up,
the diameter of the roll-up might become too large which would cause printing to no longer be
possible.
When replacing ink ribbons or label materials, use a cleaning stick to clean the heads. If the heads
are not cleaned, stripes or white spots might develop. Always turn off the power before cleaning
the heads.
When replacing laminate materials in the middle of an operation, it is recommended that all
remaining data be output before replacing (refer to "4.5 OUTPUT ALL".)
Labels of various widths can be used. Use laminate material with a width that is 20 mm narrower
than the width of the label material. Also, the maximum width of a settable laminate is 110 mm.
Refer to "2.11 Using the Laminate" for details on how to set the laminate materials.
When the laminate materials must be changed, the " Confirm Combination!" screen is displayed.
Refer to "Confirm Combination! Screen in 2.3 Using the Control Panel" for details.
C o n f i r m C o m b i n a t i o n !
H 3 = S e m i - R H 2 = S e m i - R
H 1 = S e m i - R F N S m a t N 5 0
Y E S : E N T E R
N O : E S C
When cutting the laminate material, be careful not to damage the press roller and feed roller.
