2.5 Setting Label Materials (media)
•
•
Label materials that can be set are selectable within the range below.
• Width: 70, 80, 90, 100, 110, 120, 130 mm
• O.D.: Up to 195 mm
Label materials that can be set is selectable within the range below. Use laminate materials with a width 20 mm shorter
than the label materials.
• Width: 50, 60, 70, 80, 90, 100, 110 mm
• O.D.: Up to 150 mm

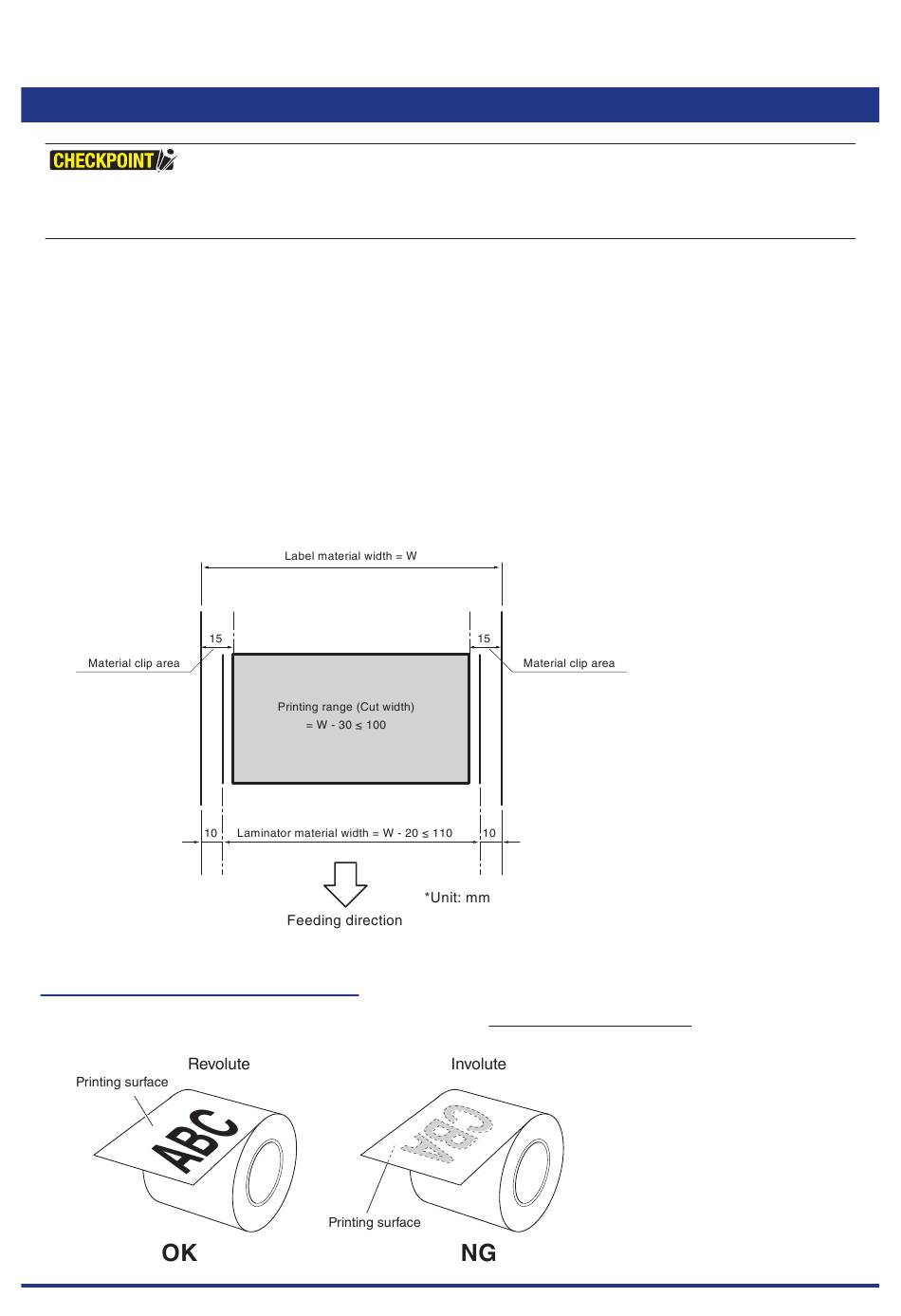

Refer to the below diagram for the relationship between the label and laminate material and the printing range.
<Printing Range>
• Label materials (media) width: 40 - 100 mm (depending on utilized media)
• Label materials (media) sending direction: 65 - 200 mm
Types of Label Materials (media)
Although there is an involution and revolute in the label materials, use the revolute n ths model.
Lightly wipe the label and laminate materials with paper or non-tissue paper, and remove foreign
matter and dust.
If printing is carried out while there is still dust or foreign matter on the label materials, head failure
or missing text may occur.
