Chapter 2 Preparation for Printing

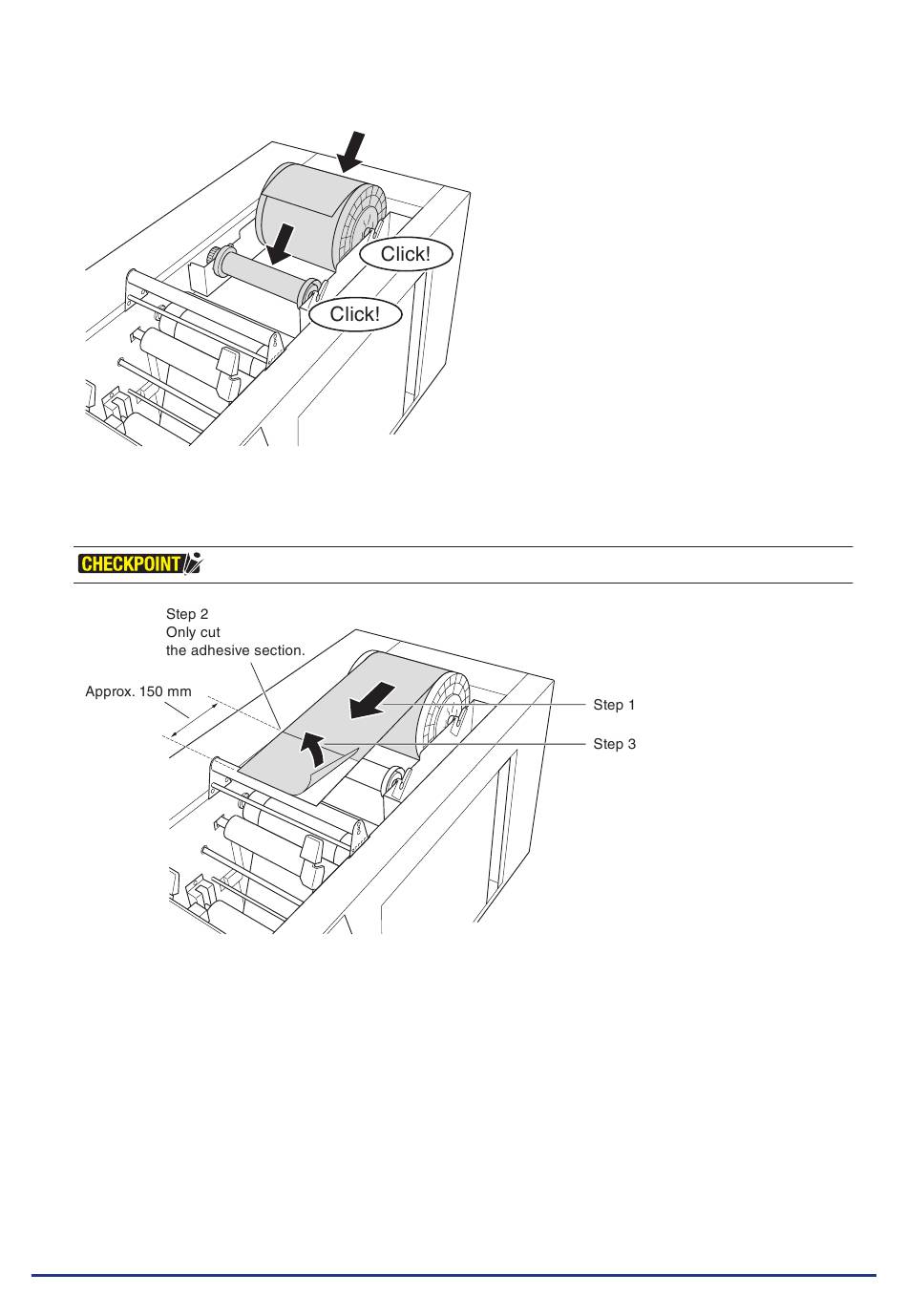

(9) Install the laminate stocker and laminate winder bobbin. Push until there is a clicking sound.
(10) Pull out the laminate material.
Cut the adhesive area of the laminate materials approximately 150 mm from the forefront.
Cut and peel the adhesive section of the laminate tip.
2-44
Set-up is easier when the adhesive section of the label material is cut first.
