Chapter 5 Replacing Consumable Items
5.4 Replacing the Separator Winder Bobbin
This section explains how to replace the separator winder bobbin.
Replacing

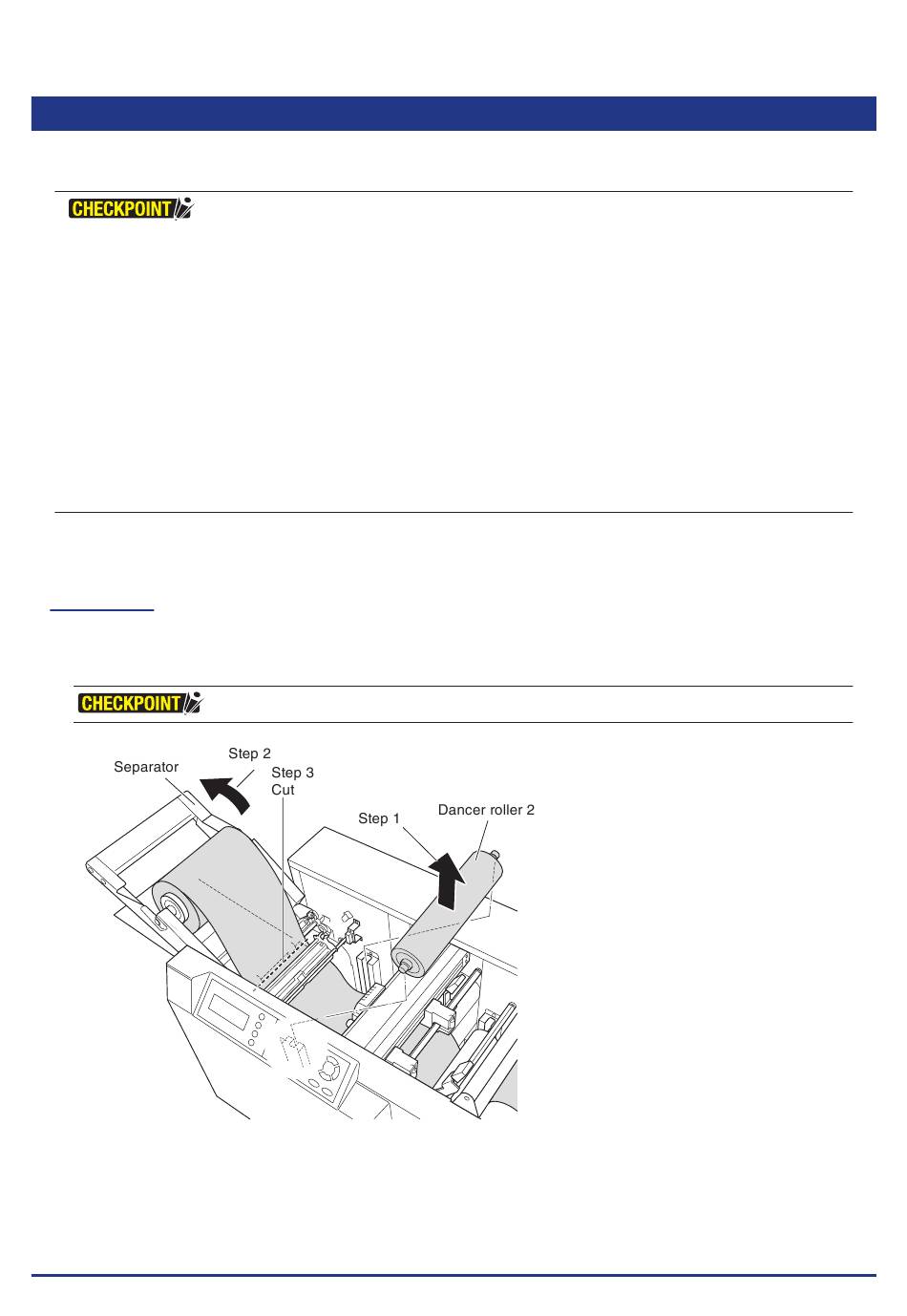

(1) Remove dancer roller 2 from the separator side and open the separator section. (Steps 1 & 2)
Cut the residue section that is wound in the separator winder bobbin side. (Step 3)
5-24
• Set the separator when the label materials have been set.
• Refer to "2.6 Loading Label Materials (media)" regarding setting label materials.
• Prior to using the separator function, refer to "2.9 Adjusting the Function Setting", and then turn
the "separator" on.
• When using the separator, it is possible to use it smoothly if the separator winder bobbin is set in
the separator prior to setting the label materials.
• When the set label materials are nearly new (many rolls remaining), the separator winder bobbin
becomes full before using up all the label materials. The extent to which it becomes full depends
on the cutting pattern and surrounding environment. When operated for a long period of time, set
a new paper tube in the separator winder bobbin.
• The rewindable outer diameter varies according to the cutting pattern.
• Refer to "2.10 Using the Separator" regarding setting the separator.
• Always replace if "Winder Full!" is displayed. If left as is when the power is turned off. the media
may jam and cause damage the next time the power is turned on.
Always remove the dancer roller before opening the separator.
