Chapter 2 Preparation for Printing
(12) Set dancer roller 2. Insert both sides of the dancer roller into the slot that accepts it.
(13) Press the ENTER key when the dancer rollers have been set.
Run initial operations.
(14) When initial operations are completed, the below "Confirm Combination" screen is displayed. Please refer to "2.3
Using the Control Panel".
C o n f i r m C o m b i n a t i o n !
H 3 = S e m i - R H 2 = S e m i - R
H 1 = S e m i - R F N S m a t N 5 0
Y E S : E N T E R
(15) Remove media assistance and set the ribbon stocker. (Refer to "2.8 Setting the Ink Ribbon".)
Set the ribbon lever (when printing is possible)
When confirming pattern quality, output test pattern. (Refer to "4.12 PRINT TEST PATTERN").
2-22

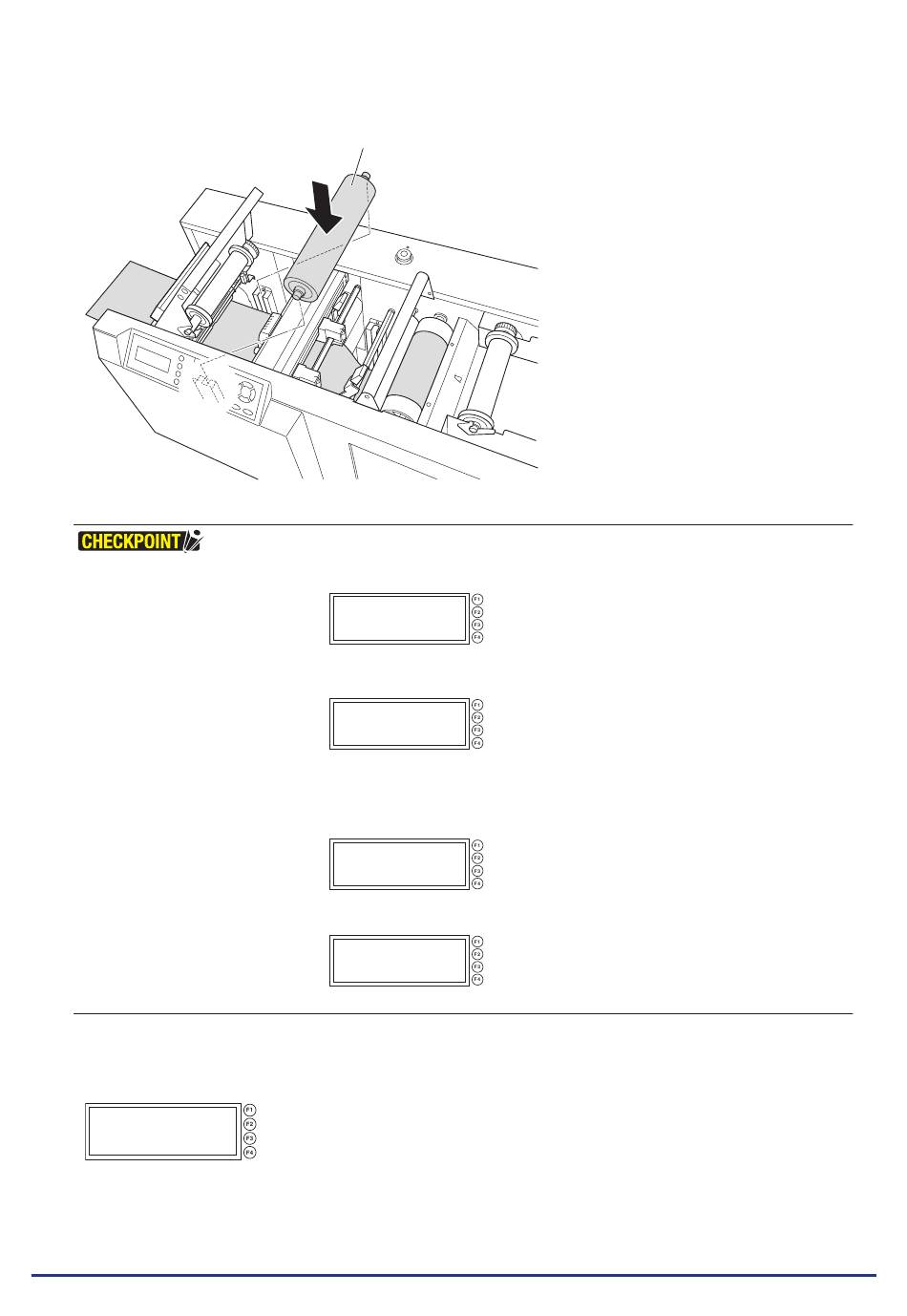

Dancer roller 2
• The following messages will display during initial operations if the separator or laminator
settings are "On", or when the settings and actual set condition differ.
• Cases in which the separator winder bobbin is not set when the separator setting is "On".
W 1 8 : M e d i a w i n d e r
S e t w i n d e r b o b b i n
a n d p r e s s E N T E R . O r
p r e s s F 4 t o c o n t i n u e
• Press F4 to turn Off.
• Cases in which the laminate is not set when the laminate setting is "On".
W 0 9 : N o l a m i n a t e
L o a d l a m i n a t e !
T h e n p r e s s E N T E R . O r
p r e s s F 4 t o c o n t i n u e
• Press F4 to turn Off.
• The following messages will display during the initial operations if the separator or laminator
settings are "Off", or when the settings and actual set condition differ.
• Cases in which the separator winder bobbin is not set when the separator setting is "Off".
W 1 9 : M e d i a w i n d e r
R e m o v e w i n d e r b o b b i n
a n d p r e s s E N T E R . O r
p r e s s F 4 t o c o n t i n u e
• Press F4 to turn On.
• Cases in which the laminate is not set when the laminate setting is "Off".
W 1 0 : L a m i n a t e i s i n s -
t a l l e d . R e m o v e i t !
T h e n p r e s s E N T E R . O r
p r e s s F 4 t o c o n t i n u e
• Press F4 to turn On.
