Chapter 5 Replacing Consumable Items
(7) Remove the ink ribbon and ink ribbon flange.
(8) Set the ink ribbon flange in the ink ribbon.
When peeling the tape, be careful not to peel the film section of the ribbon.
(9) Expand the ink ribbon.
(10) Prior to setting the ink ribbon in the ribbon cassette side, switch to the head pressure adjustment plate for the
ribbon cassette.
Refer to the previous section, "Switching the RESIN and Semi-RESIN Ink Ribbons", switch to the utilized ink ribbon,
and set it in the ribbon cassette.
5-20
•

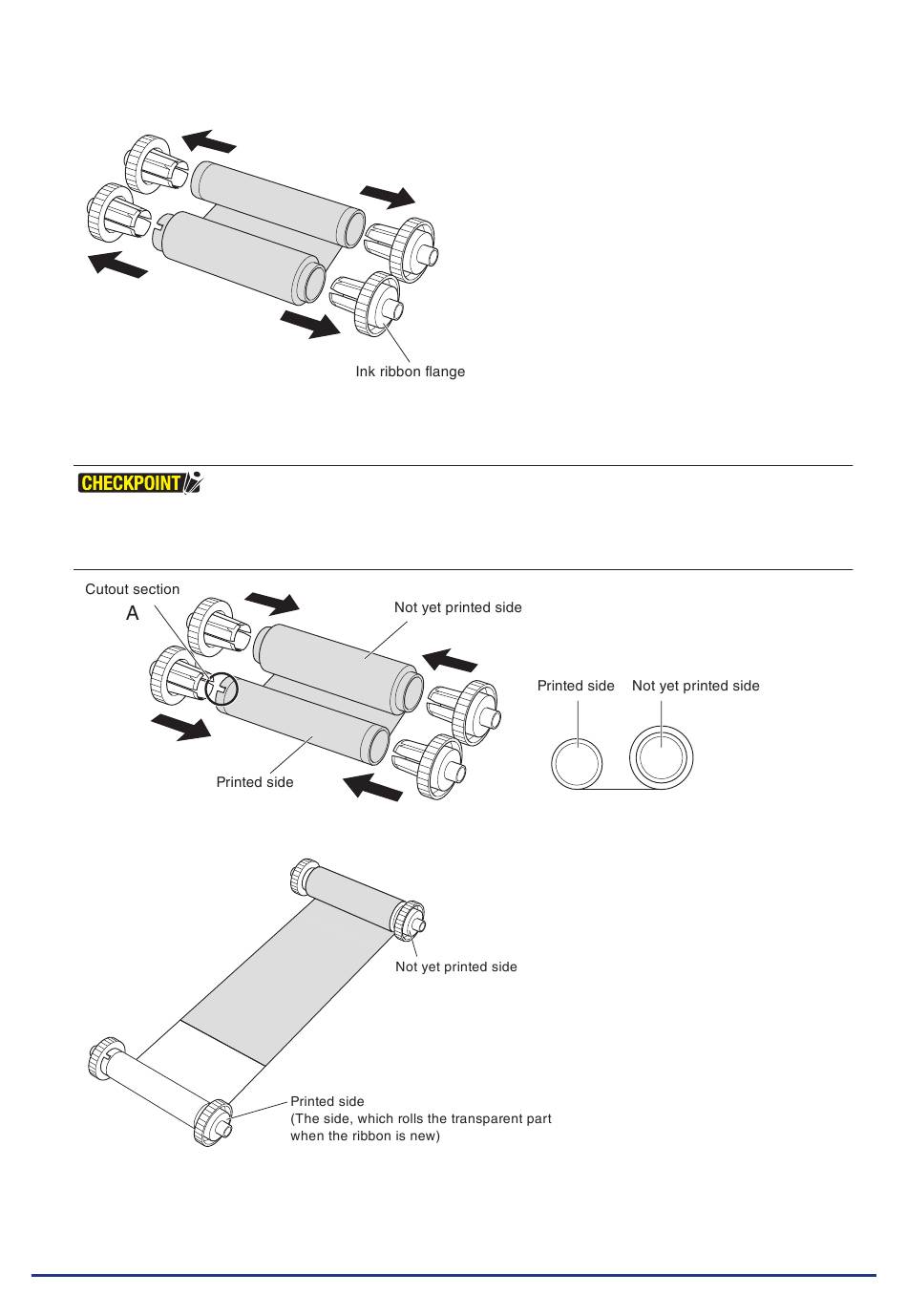

Push so that there is no opening in between the paper tube and ink ribbon flange.
•
The ink ribbon can be set on either side of the ink ribbon flange.
•
When exchanging the ink ribbon in between, set the cutout in the mark
•
Roll and set the transparent section of the ink ribbon preliminarily.
