(11) Set the ink ribbon in the ribbon cassette.

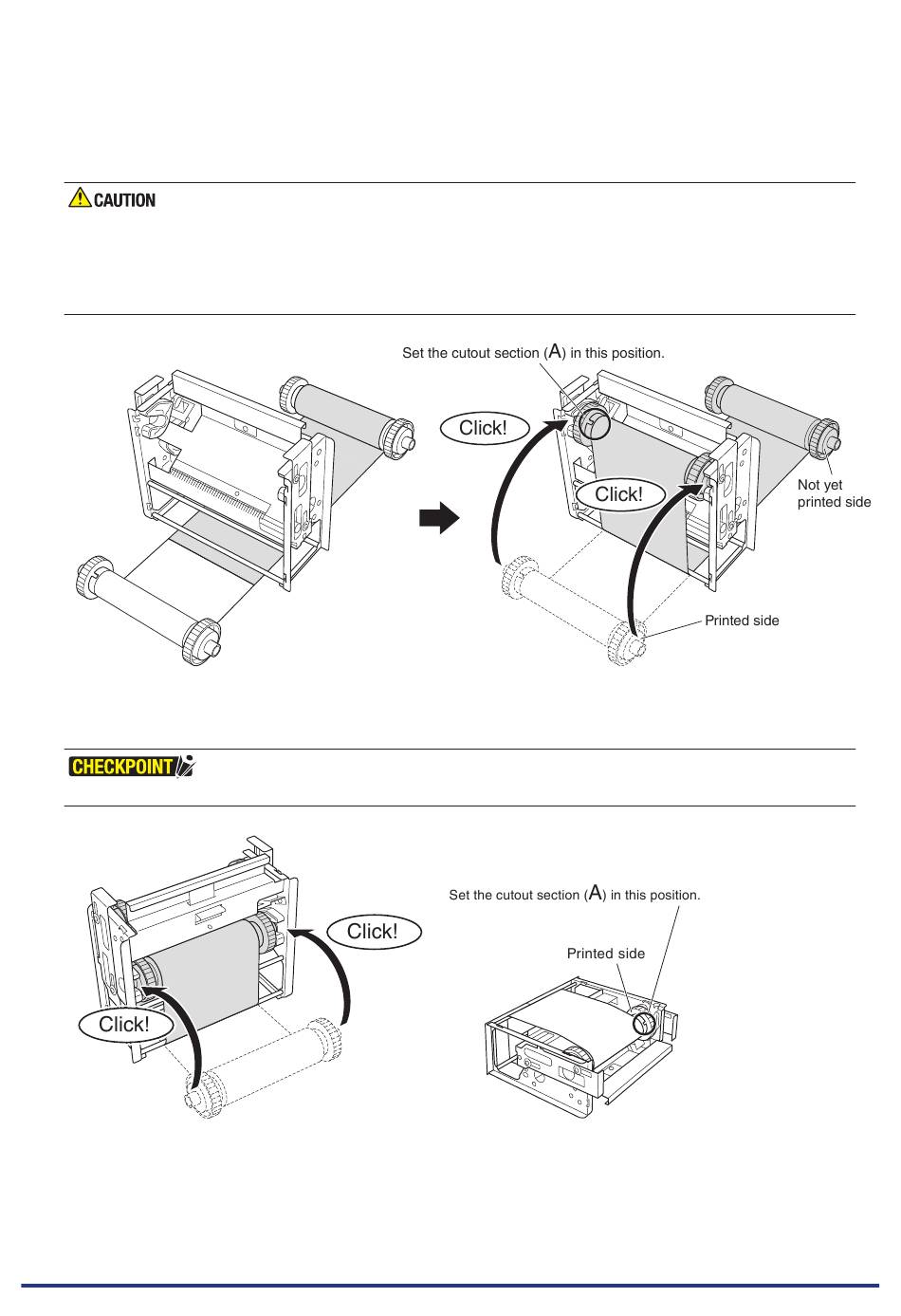

Set the ink ribbon and hold the flange section when setting it. Push until there is a clicking sound.
Set the cutout section of the ink ribbon paper core into the position shown in the below diagram.
•
During set-up, be careful not to confuse the sending side with the wind-up side. (When set in the
ribbon stocker, make the area coming toward the upper side the wind-up side.)
•
When exchanging the ink ribbon in between, set the cutout in the mark.
•
Take care not to let dust into the cassette bar or ribbon. The significant presence of dust can lead to a
thermal head malfunction. If dust has settled on the cassette bar or ribbon, slightly wind the wind-up
side.
(12) Hold the flange section in the reverse side also and set it into the ribbon cassette. Push until there is a clicking
sound.
•
•
Make sure the ink ribbon is not slack. Roll up the ribbon if it is slack.
Make sure there are no wrinkles in the ink ribbon Missing text occurs when there are wrinkles.
Chapter 5 Replacing Consumable Items
