Chapter 5 Replacing Consumable Items

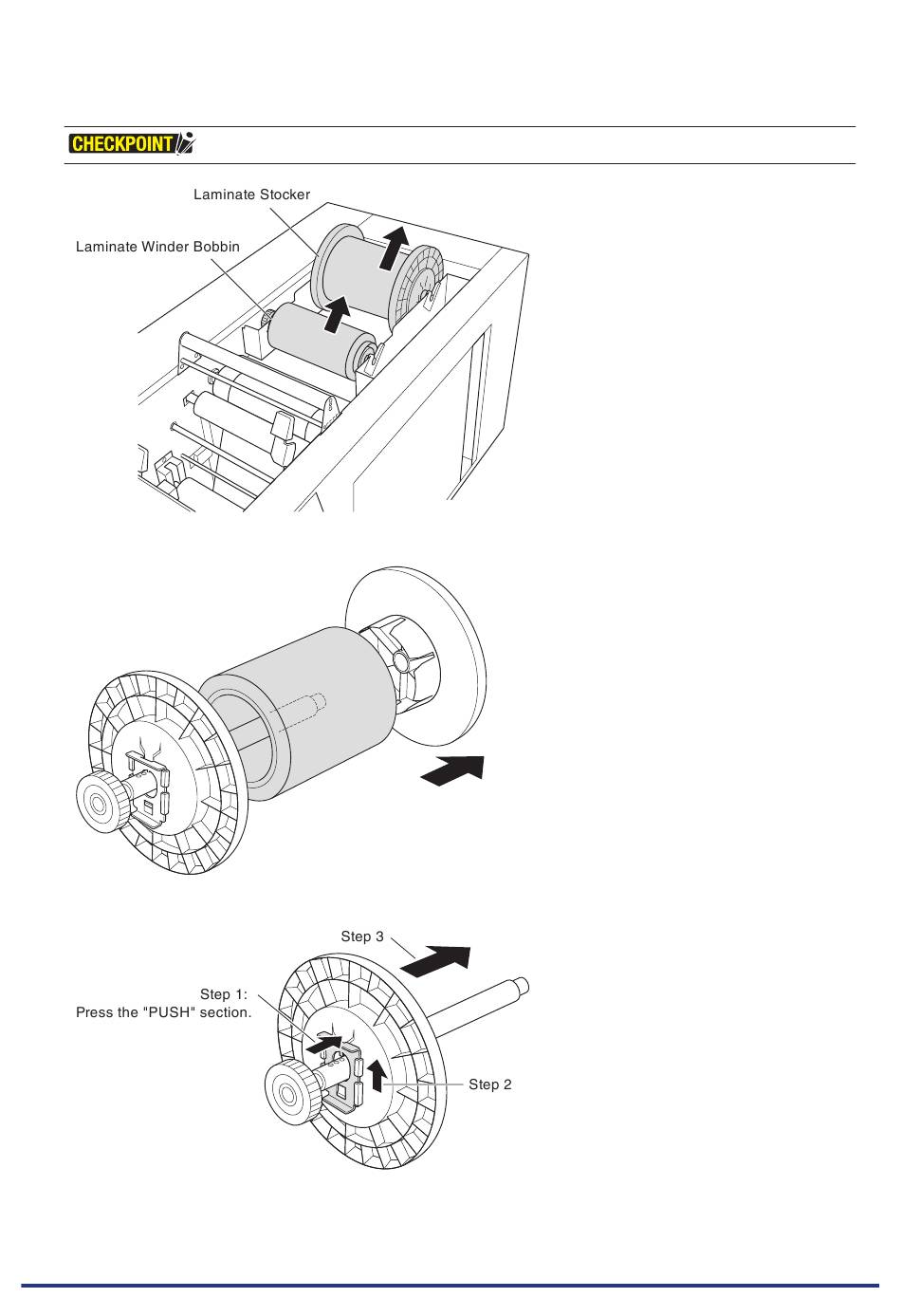

(2) Remove the laminate stocker and laminate winder bobbin.
Pull out the laminate winder bobbin, making sure that the left and right sides are pulled out evenly
(3) Remove the laminate stocker flange and then remove the laminate material or form tube.
(4) In order to adjust to fit the laminate material width, release the lock from the flange and shift the shaft.
5-3
