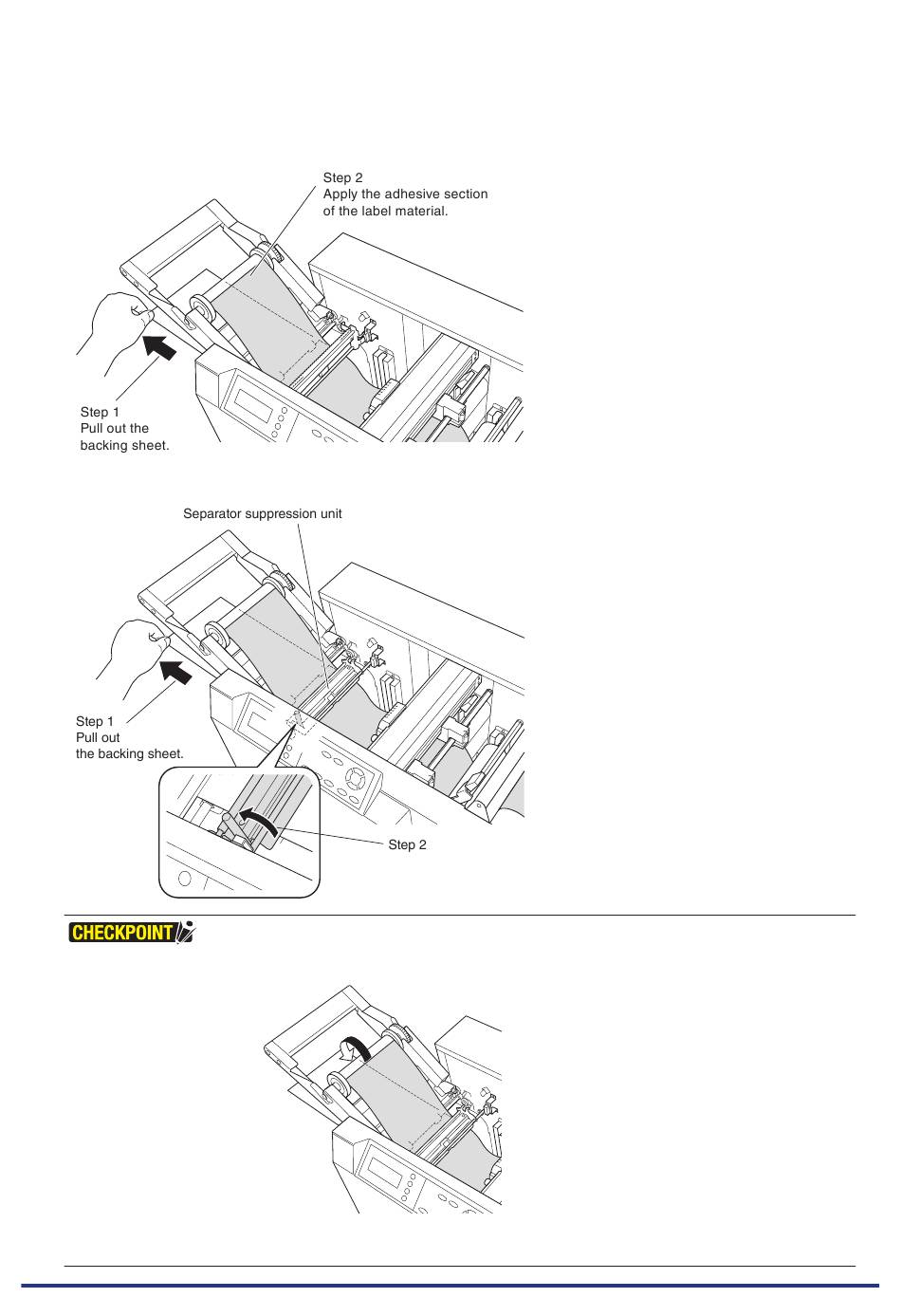

(7) Pull out the backing sheet from the outlet. Feed the label materials by pressing the FEED key when the length is
too short.
Apply the adhesive section of the peeled label materials to the separator winder bobbin section.
(8) Pull the backing sheet section from the outlet and close the separator suppression unit.
If the label material is overly sagging, slowly twist the separator winder bobbin and wind up the
label material. Since there is a rotational direction in the separator winder bobbin, refer to the
below illustration when winding.
When twisting to roll up the separator winder bobbin, push while slowly twisting. If the separator
winder bobbin might drop if it is twisted too quickly. Exercise caution.
Chapter 5 Replacing Consumable Items
5-27
