Chapter 5 Replacing Consumable Items

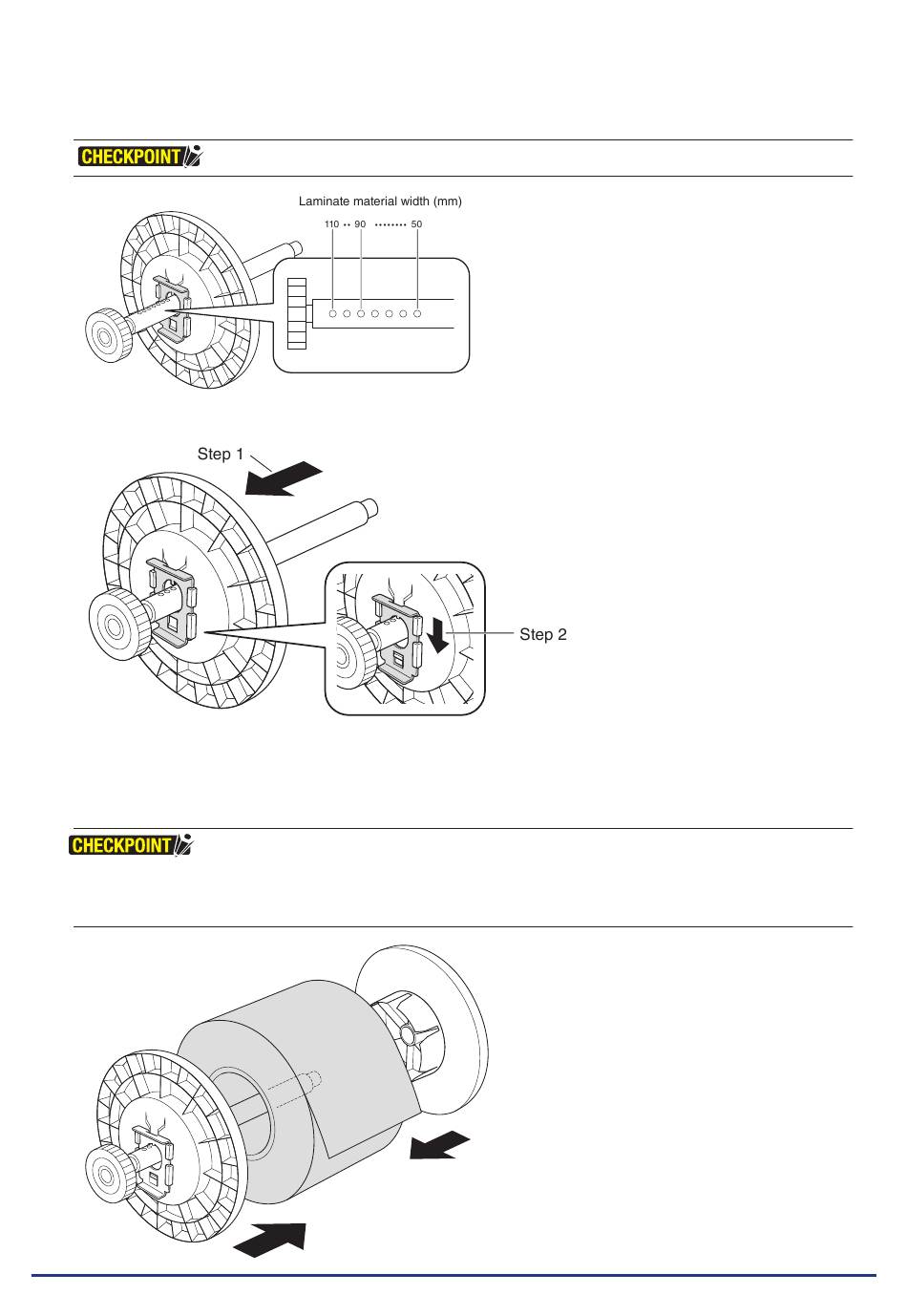

(5) Determine the position of the flange to match the laminate material width.
(6) Lock in the shaft groove and set the flange.
(7) Set the laminate materials and install the flange.
Set it so that the laminate materials are the revolute.
Push so that there is no opening in between the form tube and flange.
5-4
The width of the settable laminate materials are 50, 60, 70, 80, 90, 100, 110 mm.
•
During set-up, be careful not to confuse the revolute with the involution.
•
Make sure the set laminate materials do not slack.
•
There is the possibility of inclining to one side if media glue attaches to the inside of the flange.
Please clean regularly. (Refer to "6.12 Cleaning Media Stocker & Media Stocker Flange".)
