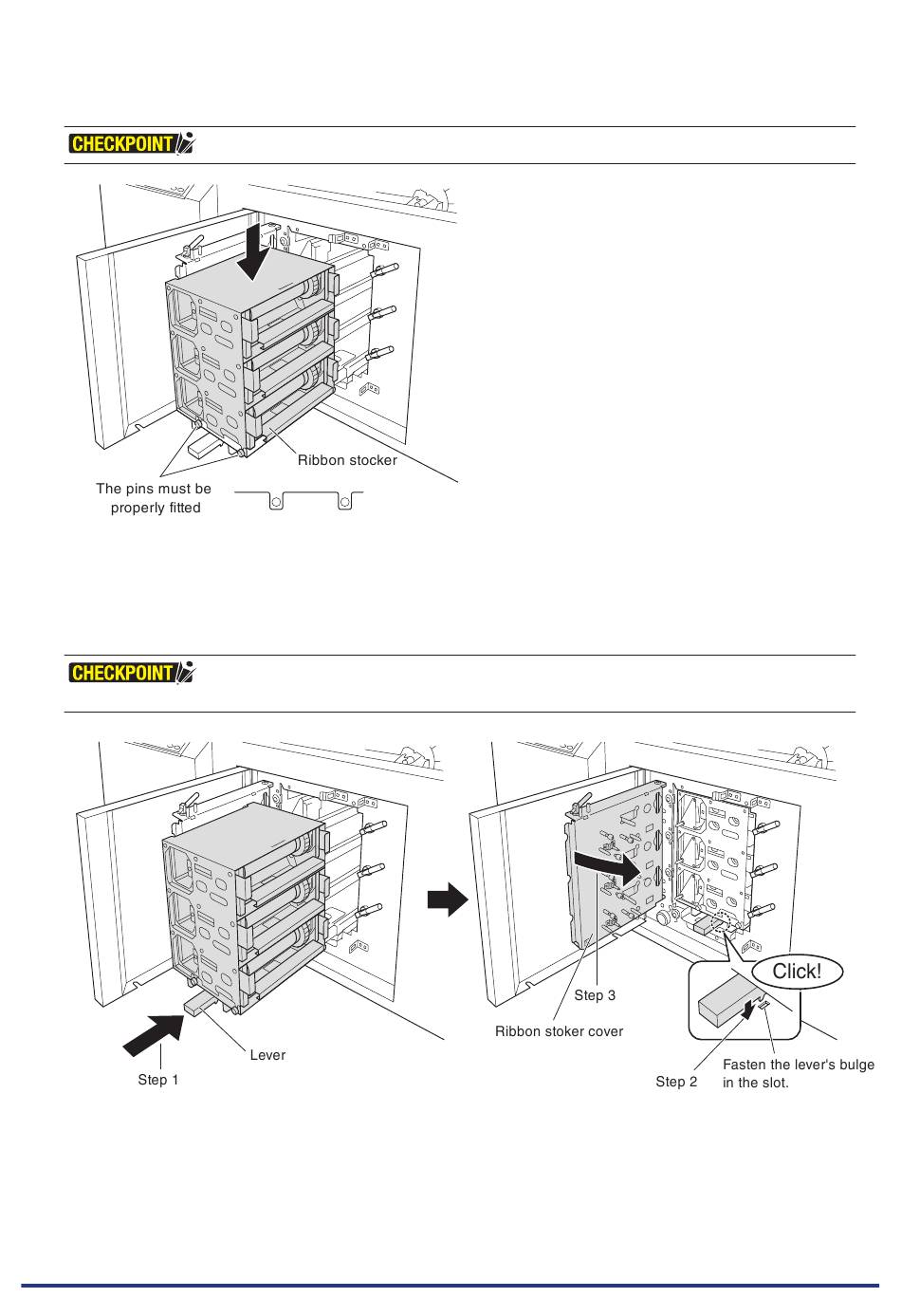

(7) Return the ribbon stocker.
(8) Push the lever and slowly and quietly return the ribbon stocker to the main body. Push until there is a clicking
sound.
Push and fasten the lever so that it is secured in the slot, and close the ribbon stocker cover. Insert the ribbon
stocker deep into the main body.
•
•
Please confirm that the screw pins are properly fitted.
Insert the ribbon stoker deep into the main body.
Make sure the lever's bulge is fastened in the slot.
Chapter 6 Maintenance
6-5
