Chapter 5 Replacing Consumable Items

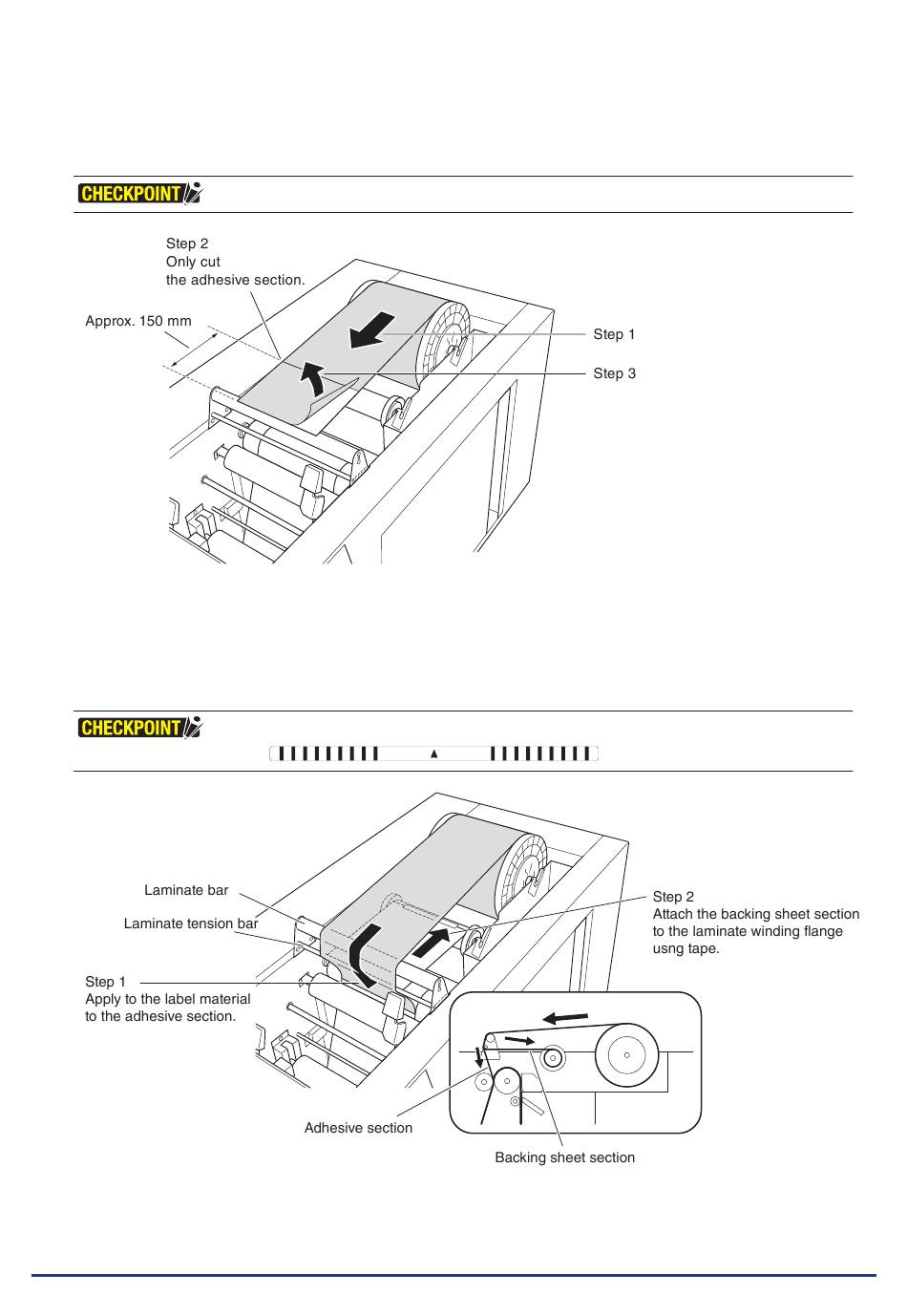

(11) Pull out the laminate material.
Cut the adhesive area of the laminate materials approximately 150 mm from the forefront.
Cut and peel the adhesive section of the laminate tip.
(12) Apply the laminate (adhesive section) straight over the laminate bar and laminate tension bar to the label material.
the dance roller exactly straight along the scale seal.
Fold back the backing sheet side from the laminate tension bar and attach to the laminate winder bobbin with
tape.
If the laminate material backing sheet is overly sagging, twist the laminate winder bobbin to wind it up.
5-6
Set-up is easier when the adhesive section of the label material is cut first.
Set the dance roller exactly straight along the scale seal.
