Technical data
Installation instructions
Inlet and outlet runs
Length of connecting cable
Ambient temperature range
!
Storage temperature
Degree of protection
Shock resistance
Electromagnetic compatibility
(EMC)
Medium temperature range
!
Limiting medium pressure
range (nominal pressure)
Pressure loss
82

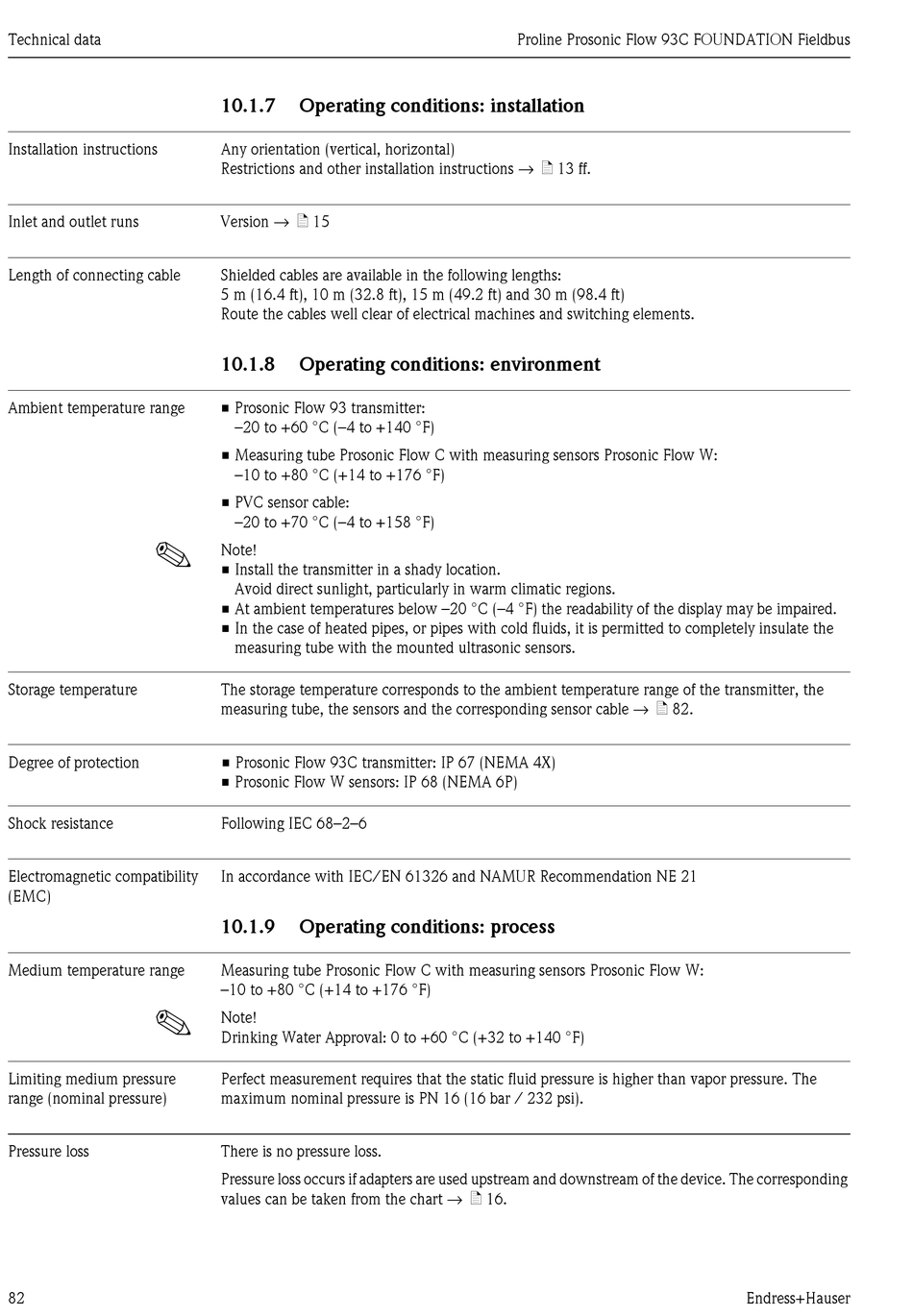

10.1.7

Operating conditions: installation

Any orientation (vertical, horizontal)
Restrictions and other installation instructions → ä 13 ff.
Version → ä 15
Shielded cables are available in the following lengths:
5 m (16.4 ft), 10 m (32.8 ft), 15 m (49.2 ft) and 30 m (98.4 ft)
Route the cables well clear of electrical machines and switching elements.
10.1.8

Operating conditions: environment

• Prosonic Flow 93 transmitter:
–20 to +60 °C (–4 to +140 °F)
• Measuring tube Prosonic Flow C with measuring sensors Prosonic Flow W:
–10 to +80 °C (+14 to +176 °F)
• PVC sensor cable:
–20 to +70 °C (–4 to +158 °F)
Note!
• Install the transmitter in a shady location.
Avoid direct sunlight, particularly in warm climatic regions.
• At ambient temperatures below –20 °C (–4 °F) the readability of the display may be impaired.
• In the case of heated pipes, or pipes with cold fluids, it is permitted to completely insulate the
measuring tube with the mounted ultrasonic sensors.
The storage temperature corresponds to the ambient temperature range of the transmitter, the
measuring tube, the sensors and the corresponding sensor cable → ä 82.
• Prosonic Flow 93C transmitter: IP 67 (NEMA 4X)
• Prosonic Flow W sensors: IP 68 (NEMA 6P)
Following IEC 68–2–6
In accordance with IEC/EN 61326 and NAMUR Recommendation NE 21
10.1.9

Operating conditions: process

Measuring tube Prosonic Flow C with measuring sensors Prosonic Flow W:
–10 to +80 °C (+14 to +176 °F)
Note!
Drinking Water Approval: 0 to +60 °C (+32 to +140 °F)
Perfect measurement requires that the static fluid pressure is higher than vapor pressure. The
maximum nominal pressure is PN 16 (16 bar / 232 psi).
There is no pressure loss.
Pressure loss occurs if adapters are used upstream and downstream of the device. The corresponding
values can be taken from the chart → ä 16.
