Inlet And Outlet Runs; Vibrations - Endress+Hauser Proline Prosonic Flow 93C Operating Instructions Manual

Proline Prosonic Flow 93C FOUNDATION Fieldbus
Endress+Hauser
3.2.5

Inlet and outlet runs

If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows, etc. The
longest inlet and outlet run must be taken into consideration if two or more flow obstructions are
present. The following inlet and outlet runs are recommended to comply with measuring accuracy
specifications:
1
2
3

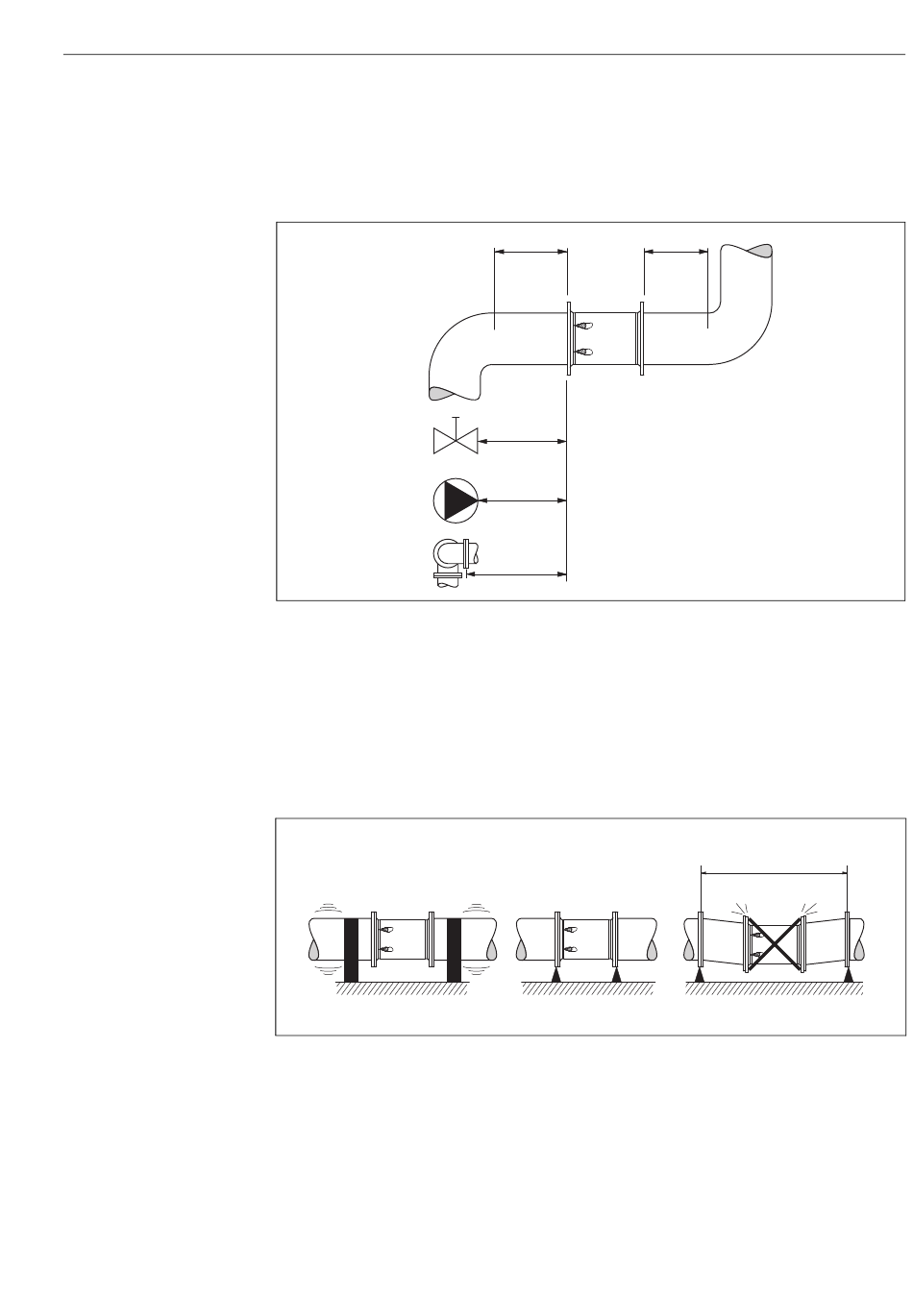

Fig. 10: Inlet and outlet runs (side view)
1 Valve (2/3 open)
2 Pump
3 Two pipe bends in different directions
3.2.6

Vibrations

Secure the piping and the sensor if vibration is severe.
Information on resistance to vibration and shock is provided on Page 82.
Fig. 11: Measures to prevent device vibrations
³ 10 x DN ³ 3 x DN
³ 20 x DN
³ 15 x DN
³ 10 x DN
Installation
A0014016
> 10 m (33 ft)
A0008750
15
