Wiring
32
4.3.3

Fieldbus connector

The connection technology of FOUNDATION Fieldbus allows measuring devices to be connected
to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.
This connection technology using prefabricated distribution modules and plug-in connectors offers
substantial advantages over conventional wiring:
• Field devices can be removed, replaced or added at any time during normal operation.
Communication is not interrupted.
• Installation and maintenance are significantly easier.
• Existing cable infrastructures can be used and expanded instantly, e.g. when constructing new
star distributors using 4-channel or 8-channel distribution modules.
The device can therefore be supplied with the option of a ready-mounted fieldbus connector.
Fieldbus connectors for retrofitting can be ordered from Endress+Hauser as a spare part → ä 56.
A
Esc
- +
E
C
B

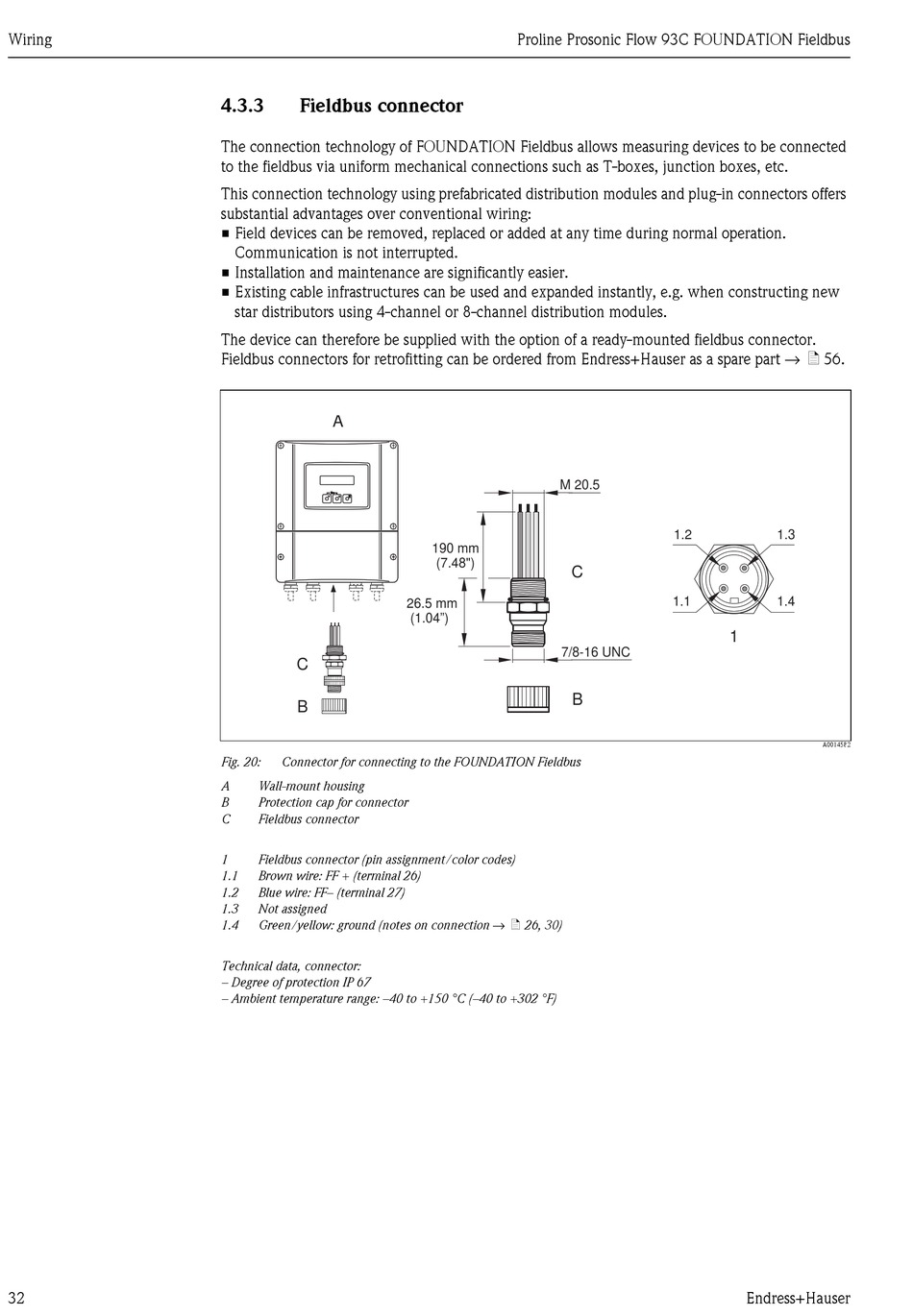

Fig. 20: Connector for connecting to the FOUNDATION Fieldbus
A Wall-mount housing
B Protection cap for connector
C Fieldbus connector
1 Fieldbus connector (pin assignment/color codes)
1.1 Brown wire: FF + (terminal 26)
1.2 Blue wire: FF– (terminal 27)
1.3 Not assigned
Green/yellow: ground (notes on connection → ä 26, 30)
1.4
Technical data, connector:
– Degree of protection IP 67
– Ambient temperature range: –40 to +150 °C (–40 to +302 °F)
Proline Prosonic Flow 93C FOUNDATION Fieldbus
M 20.5
190 mm
(7.48 ) "
C
26.5 mm
(1.04")
7/8-16 UNC
B
1.2 1.3
1.1 1.4
1
A0014582
