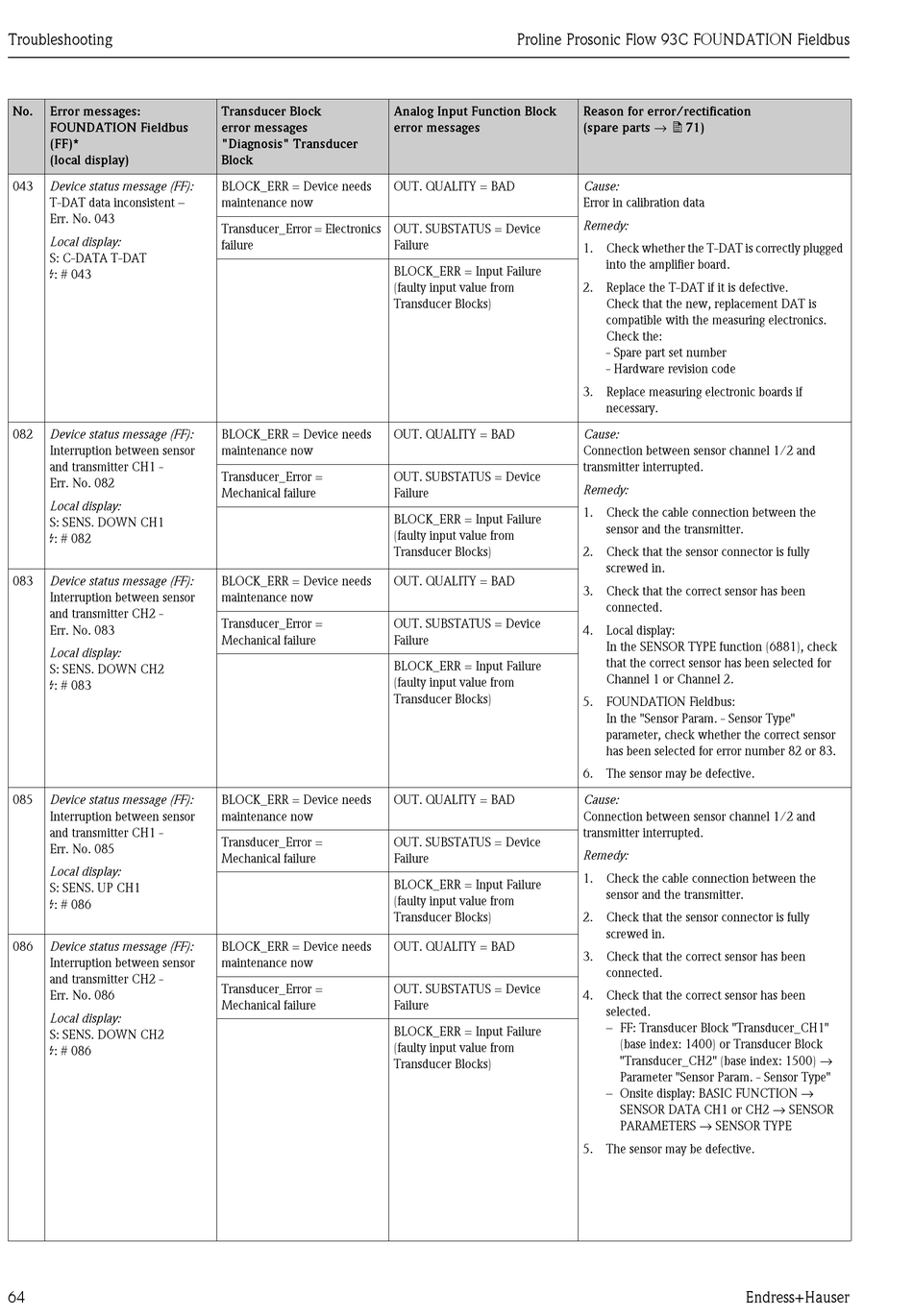

Troubleshooting
No. Error messages:
FOUNDATION Fieldbus
(FF)*
(local display)
043 Device status message (FF):
T-DAT data inconsistent –
Err. No. 043
Local display:
S: C-DATA T-DAT
$: # 043
082 Device status message (FF):
Interruption between sensor
and transmitter CH1 -
Err. No. 082
Local display:
S: SENS. DOWN CH1
$: # 082
083 Device status message (FF):
Interruption between sensor
and transmitter CH2 -
Err. No. 083
Local display:
S: SENS. DOWN CH2
$: # 083
085 Device status message (FF):
Interruption between sensor
and transmitter CH1 -
Err. No. 085
Local display:
S: SENS. UP CH1
$: # 086
086 Device status message (FF):
Interruption between sensor
and transmitter CH2 -
Err. No. 086
Local display:
S: SENS. DOWN CH2
$: # 086
64
Transducer Block Analog Input Function Block
error messages error messages
"Diagnosis" Transducer
Block
BLOCK_ERR = Device needs OUT. QUALITY = BAD
maintenance now
Transducer_Error = Electronics OUT. SUBSTATUS = Device
failure Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
BLOCK_ERR = Device needs OUT. QUALITY = BAD
maintenance now
Transducer_Error = OUT. SUBSTATUS = Device
Mechanical failure Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
BLOCK_ERR = Device needs OUT. QUALITY = BAD
maintenance now
Transducer_Error = OUT. SUBSTATUS = Device
Mechanical failure Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
BLOCK_ERR = Device needs OUT. QUALITY = BAD
maintenance now
Transducer_Error = OUT. SUBSTATUS = Device
Mechanical failure Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
BLOCK_ERR = Device needs OUT. QUALITY = BAD
maintenance now
Transducer_Error = OUT. SUBSTATUS = Device
Mechanical failure Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
Proline Prosonic Flow 93C FOUNDATION Fieldbus
Reason for error/rectification
(spare parts → ä 71)
Cause:
Error in calibration data
Remedy:
1. Check whether the T-DAT is correctly plugged
into the amplifier board.
2. Replace the T-DAT if it is defective.
Check that the new, replacement DAT is
compatible with the measuring electronics.
Check the:
- Spare part set number
- Hardware revision code
3. Replace measuring electronic boards if
necessary.
Cause:
Connection between sensor channel 1/2 and
transmitter interrupted.
Remedy:
1. Check the cable connection between the
sensor and the transmitter.
2. Check that the sensor connector is fully
screwed in.
3. Check that the correct sensor has been
connected.
4. Local display:
In the SENSOR TYPE function (6881), check
that the correct sensor has been selected for
Channel 1 or Channel 2.
5. FOUNDATION Fieldbus:
In the "Sensor Param. - Sensor Type"
parameter, check whether the correct sensor
has been selected for error number 82 or 83.
6. The sensor may be defective.
Cause:
Connection between sensor channel 1/2 and
transmitter interrupted.
Remedy:
1. Check the cable connection between the
sensor and the transmitter.
2. Check that the sensor connector is fully
screwed in.
3. Check that the correct sensor has been
connected.
4. Check that the correct sensor has been
selected.
– FF: Transducer Block "Transducer_CH1"
(base index: 1400) or Transducer Block
"Transducer_CH2" (base index: 1500) →
Parameter "Sensor Param. - Sensor Type"
– Onsite display: BASIC FUNCTION →
SENSOR DATA CH1 or CH2 → SENSOR
PARAMETERS → SENSOR TYPE
5. The sensor may be defective.
