Proline Prosonic Flow 93C FOUNDATION Fieldbus
Endress+Hauser
5.2

Local display

5.2.1

Display and operating elements

The local display enables you to read all important parameters directly at the measuring point and
configure the device using the "Quick Setup" or the function matrix.
The display consists of four lines; this is where measured values and/or status variables (direction
of flow, empty pipe, bar graph, etc.) are displayed. You can change the assignment of display lines
to different variables to suit your needs and preferences (→ see the "Description of Device
Functions" manual).
1
2

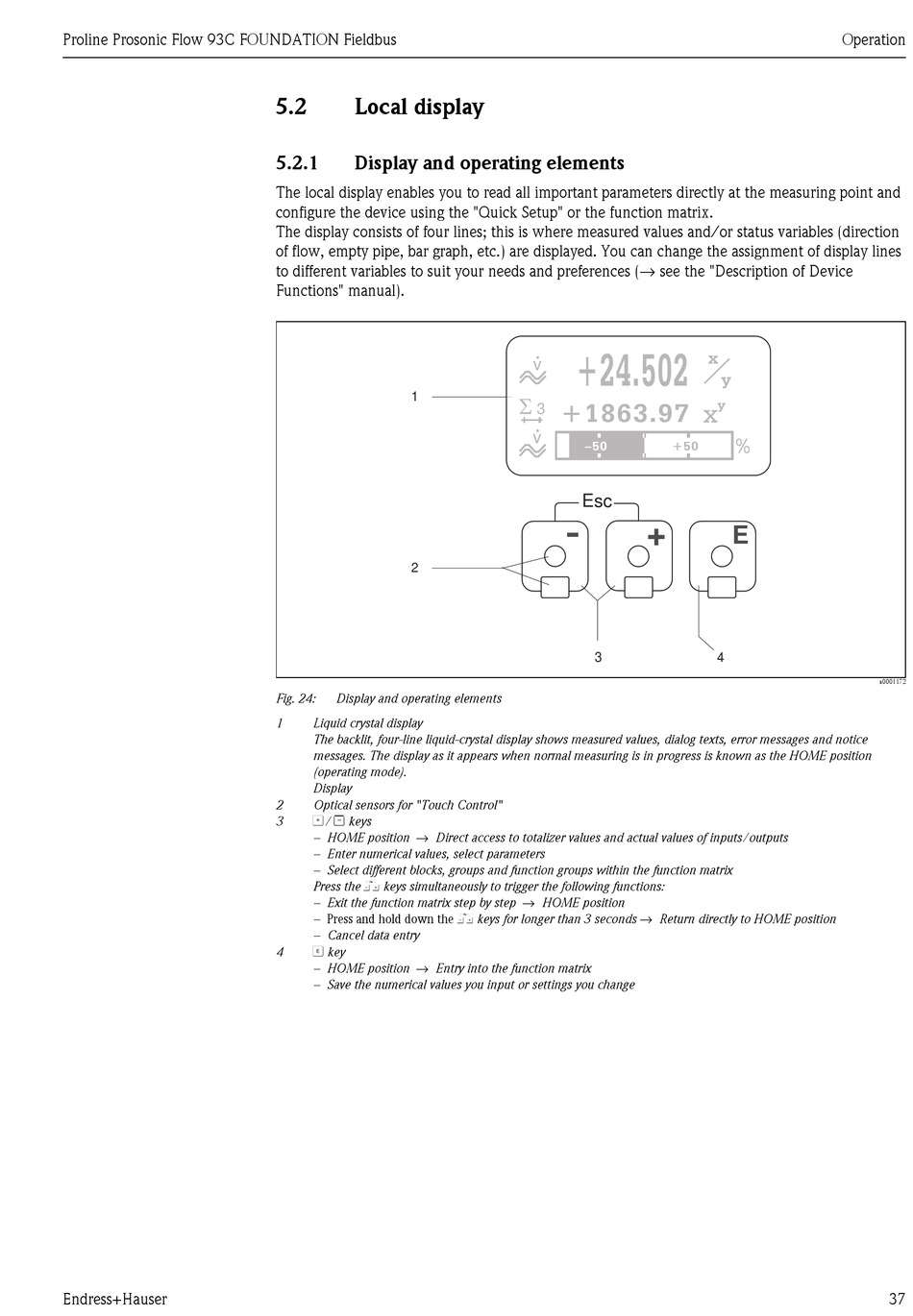

Fig. 24: Display and operating elements
1 Liquid crystal display
The backlit, four-line liquid-crystal display shows measured values, dialog texts, error messages and notice
messages. The display as it appears when normal measuring is in progress is known as the HOME position
(operating mode).
Display
2 Optical sensors for "Touch Control"
O/ S keys
3
– HOME position → Direct access to totalizer values and actual values of inputs/outputs
– Enter numerical values, select parameters
– Select different blocks, groups and function groups within the function matrix
Press the X keys simultaneously to trigger the following functions:
– Exit the function matrix step by step → HOME position
– Press and hold down the X keys for longer than 3 seconds → Return directly to HOME position
– Cancel data entry
F key
4
– HOME position → Entry into the function matrix
– Save the numerical values you input or settings you change
+24.502 +24.502
v v
S S
+1863.97 +1863.97
3 3
v v
–50 –50 +50 +50
Esc
+
-
3
Operation
x x
y y
y y
x x
% %
E
4
a0001172
37
