Proline Prosonic Flow 93C FOUNDATION Fieldbus
Design / dimensions
Materials
Weight (SI units)
Endress+Hauser

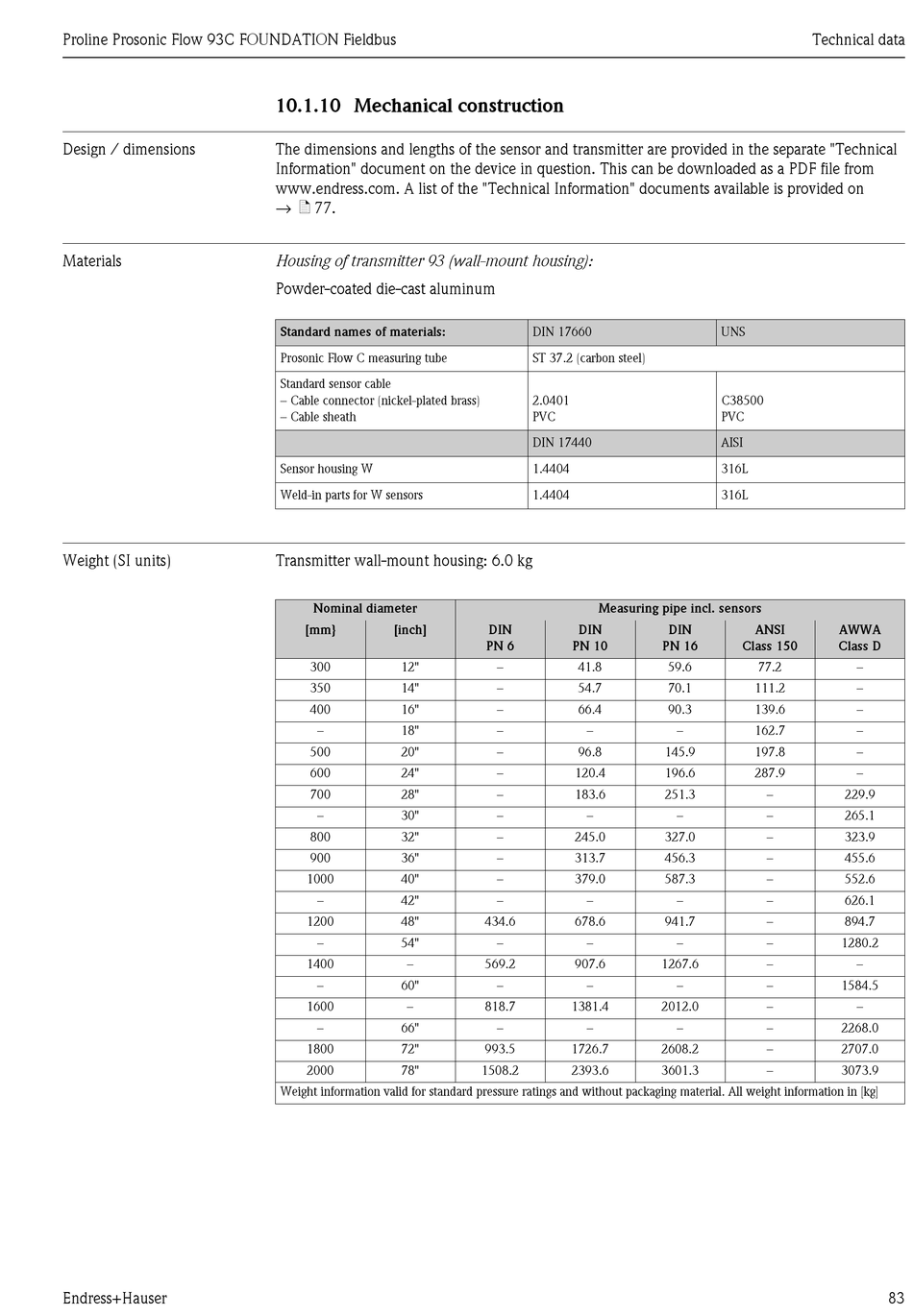

10.1.10 Mechanical construction

The dimensions and lengths of the sensor and transmitter are provided in the separate "Technical
Information" document on the device in question. This can be downloaded as a PDF file from
www.endress.com. A list of the "Technical Information" documents available is provided on
→ ä 77.
Housing of transmitter 93 (wall-mount housing):
Powder-coated die-cast aluminum
Standard names of materials:
Prosonic Flow C measuring tube
Standard sensor cable
– Cable connector (nickel-plated brass)
– Cable sheath
Sensor housing W
Weld-in parts for W sensors
Transmitter wall-mount housing: 6.0 kg
Nominal diameter
[mm} [inch]
300 12"
350 14"
400 16"
– 18"
500 20"
600 24"
700 28"
– 30"
800 32"
900 36"
1000 40"
– 42"
1200 48"
– 54"
1400 –
– 60"
1600 –
– 66"
1800 72"
2000 78"
Weight information valid for standard pressure ratings and without packaging material. All weight information in [kg]
DIN 17660
ST 37.2 (carbon steel)
2.0401
PVC
DIN 17440
1.4404
1.4404
Measuring pipe incl. sensors
DIN DIN
PN 6 PN 10
– 41.8
– 54.7
– 66.4
– –
– 96.8
– 120.4
– 183.6
– –
– 245.0
– 313.7
– 379.0
– –
434.6 678.6
– –
569.2 907.6
– –
818.7 1381.4
– –
993.5 1726.7
1508.2 2393.6
Technical data
UNS
C38500
PVC
AISI
316L
316L
DIN ANSI
PN 16 Class 150
59.6 77.2
70.1 111.2
90.3 139.6
– 162.7
145.9 197.8
196.6 287.9
251.3 –
– –
327.0 –
456.3 –
587.3 –
– –
941.7 –
– –
1267.6 –
– –
2012.0 –
– –
2608.2 –
3601.3 –
AWWA
Class D
–
–
–
–
–
–
229.9
265.1
323.9
455.6
552.6
626.1
894.7
1280.2
–
1584.5
–
2268.0
2707.0
3073.9
83
