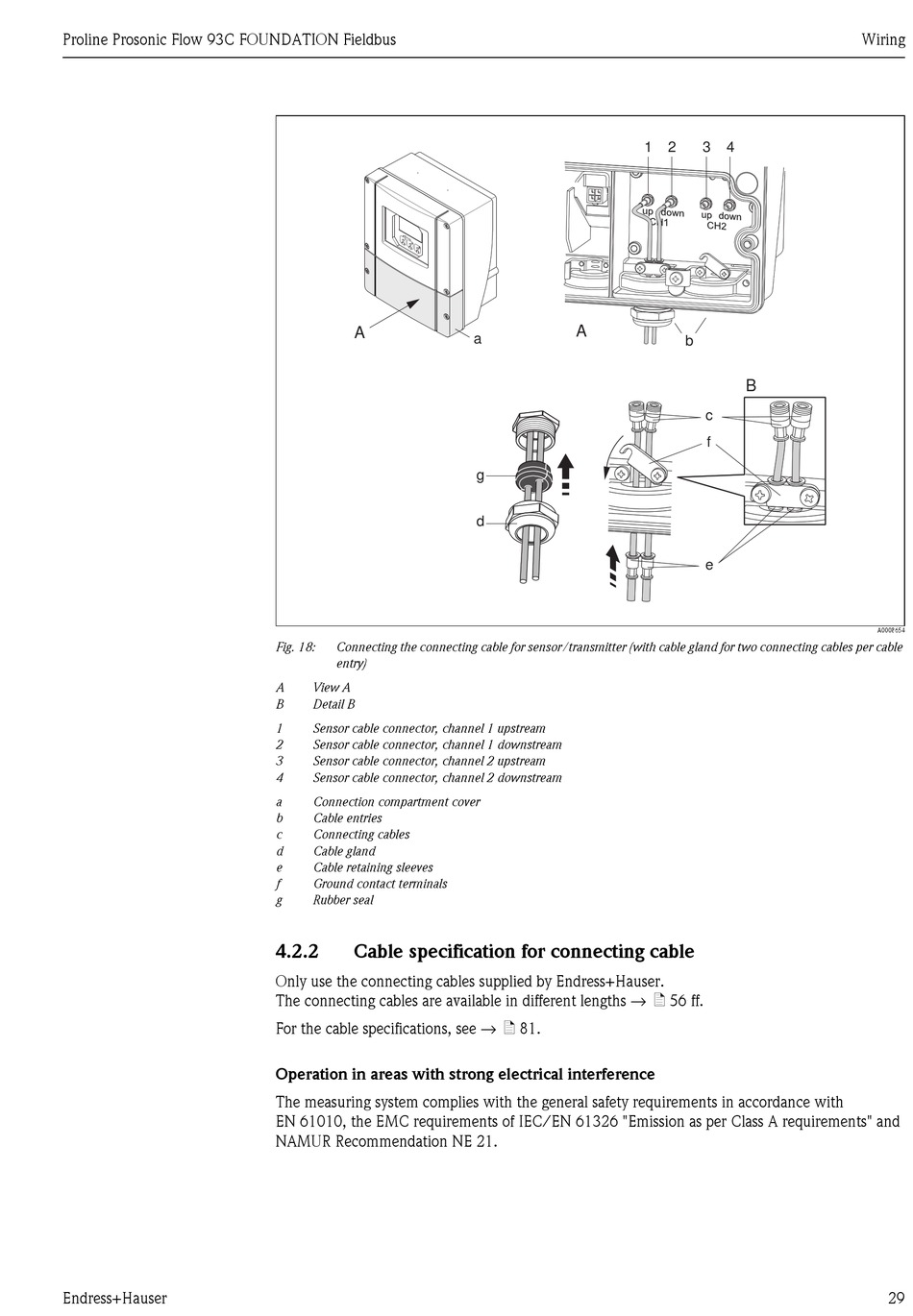

Fig. 18: Connecting the connecting cable for sensor/transmitter (with cable gland for two connecting cables per cable
entry)
A View A
B Detail B
1 Sensor cable connector, channel 1 upstream
2 Sensor cable connector, channel 1 downstream
3 Sensor cable connector, channel 2 upstream
4 Sensor cable connector, channel 2 downstream
a Connection compartment cover
b Cable entries
c Connecting cables
d Cable gland
e Cable retaining sleeves
f Ground contact terminals
g Rubber seal
4.2.2

Cable specification for connecting cable

Only use the connecting cables supplied by Endress+Hauser.
The connecting cables are available in different lengths → ä 56 ff.
For the cable specifications, see → ä 81.
Operation in areas with strong electrical interference
The measuring system complies with the general safety requirements in accordance with
EN 61010, the EMC requirements of IEC/EN 61326 "Emission as per Class A requirements" and
NAMUR Recommendation NE 21.
