Proline Prosonic Flow 93C FOUNDATION Fieldbus
Endress+Hauser

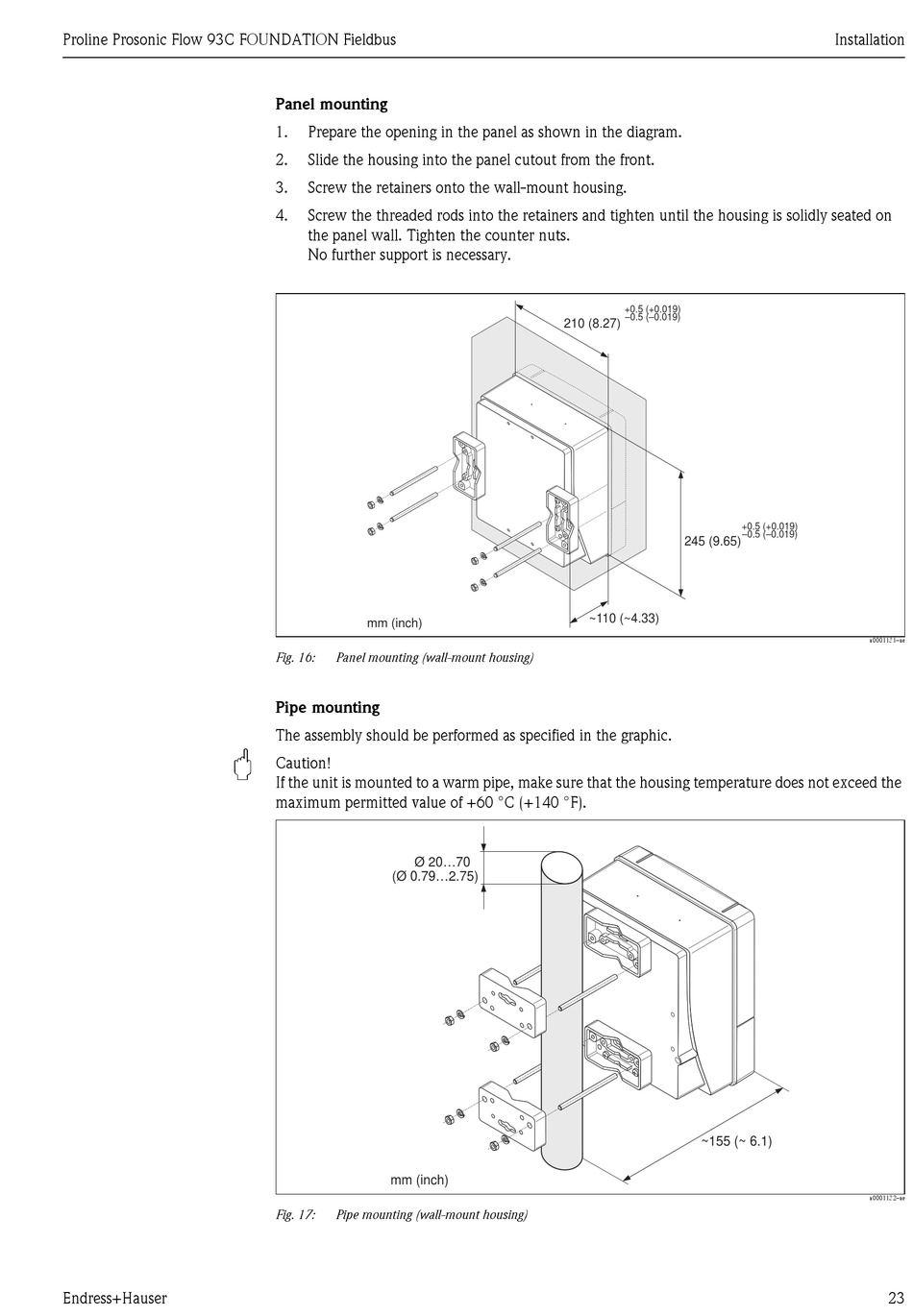

Panel mounting
1. Prepare the opening in the panel as shown in the diagram.
2. Slide the housing into the panel cutout from the front.
3. Screw the retainers onto the wall-mount housing.
4. Screw the threaded rods into the retainers and tighten until the housing is solidly seated on
the panel wall. Tighten the counter nuts.
No further support is necessary.
mm (inch)
Fig. 16: Panel mounting (wall-mount housing)
Pipe mounting
The assembly should be performed as specified in the graphic.
"
Caution!
If the unit is mounted to a warm pipe, make sure that the housing temperature does not exceed the
maximum permitted value of +60 °C (+140 °F).
(Ø 0.79...2.75)
mm (inch)
Fig. 17: Pipe mounting (wall-mount housing)
210 (8.27)
Ø 20...70
+0.5 (+0.019)
–0.5 (–0.019)
+0.5 (+0.019)
–0.5 (–0.019)
245 (9.65)
~110 (~4.33)
~ 155 ( ~ 6.1)
Installation
a0001131–ae
a0001132–ae
