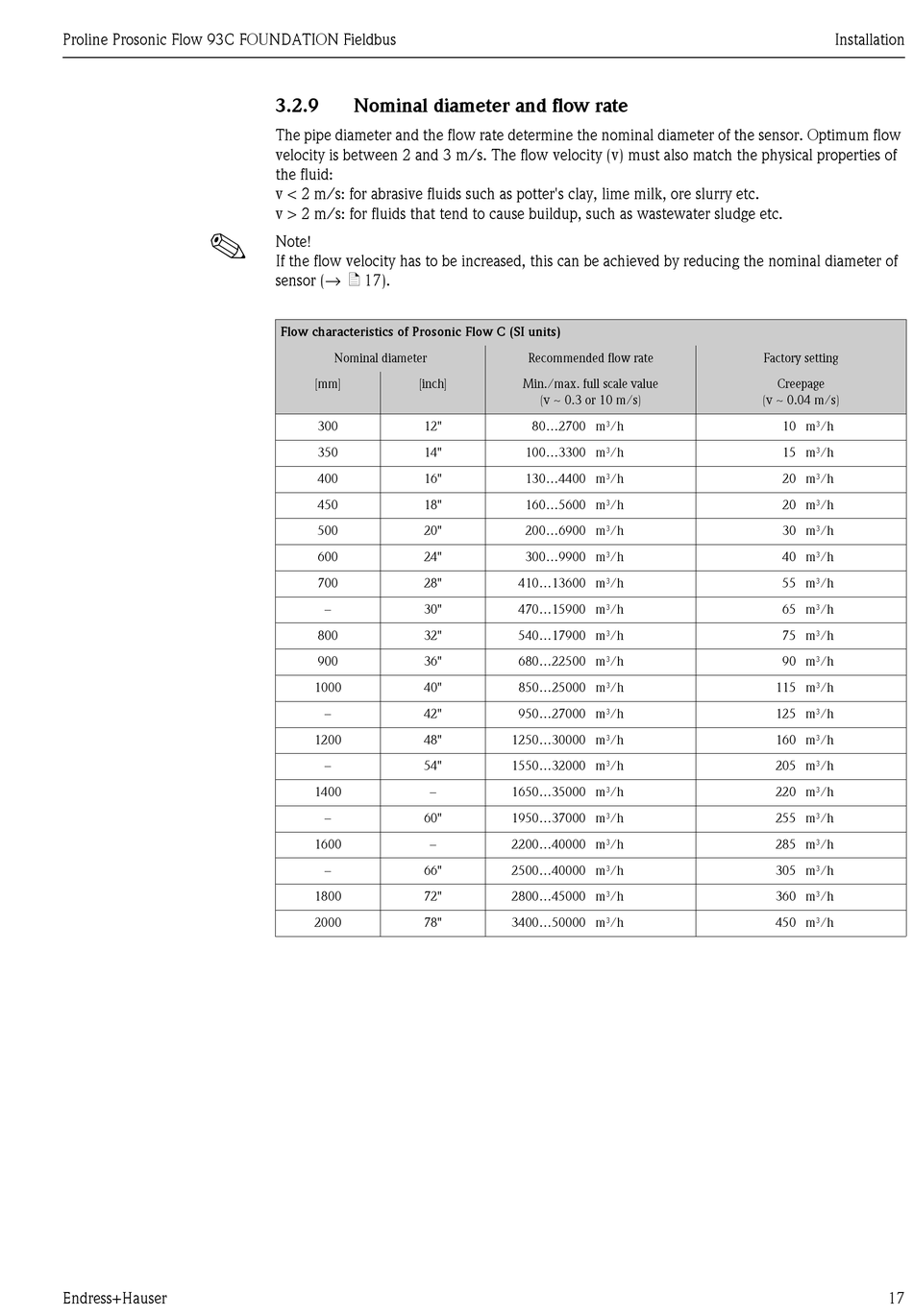

Nominal diameter and flow rate

The pipe diameter and the flow rate determine the nominal diameter of the sensor. Optimum flow
velocity is between 2 and 3 m/s. The flow velocity (v) must also match the physical properties of
the fluid:
v < 2 m/s: for abrasive fluids such as potter's clay, lime milk, ore slurry etc.
v > 2 m/s: for fluids that tend to cause buildup, such as wastewater sludge etc.
Note!
If the flow velocity has to be increased, this can be achieved by reducing the nominal diameter of
sensor (→ ä 17).
Flow characteristics of Prosonic Flow C (SI units)
Nominal diameter
[mm] [inch]
300 12"
350 14"
400 16"
450 18"
500 20"
600 24"
700 28"
– 30"
800 32"
900 36"
1000 40"
– 42"
1200 48"
– 54"
1400 –
– 60"
1600 –
– 66"
1800 72"
2000 78"
Recommended flow rate
Min./max. full scale value
(v ~ 0.3 or 10 m/s)
80...2700 m³/h
100...3300 m³/h
130...4400 m³/h
160...5600 m³/h
200...6900 m³/h
300...9900 m³/h
410...13600 m³/h
470...15900 m³/h
540...17900 m³/h
680...22500 m³/h
850...25000 m³/h
950...27000 m³/h
1250...30000 m³/h
1550...32000 m³/h
1650...35000 m³/h
1950...37000 m³/h
2200...40000 m³/h
2500...40000 m³/h
2800...45000 m³/h
3400...50000 m³/h
Installation
Factory setting
Creepage
(v ~ 0.04 m/s)
10 m³/h
15 m³/h
20 m³/h
20 m³/h
30 m³/h
40 m³/h
55 m³/h
65 m³/h
75 m³/h
90 m³/h
115 m³/h
125 m³/h
160 m³/h
205 m³/h
220 m³/h
255 m³/h
285 m³/h
305 m³/h
360 m³/h
450 m³/h
