Operation
38
5.2.2

Display (operating mode)

The display area consists of three lines in all; this is where measured values are displayed, and/or
status variables (direction of flow, bar graph, etc.). You can change the assignment of display lines
to different variables to suit your needs and preferences (→ see the "Description of Device
Functions" manual).
Multiplex mode:
A maximum of two different display variables can be assigned to each line. Variables multiplexed in
this way alternate every 10 seconds on the display.
Error messages:
Display and presentation of system/process errors → ä 42
S

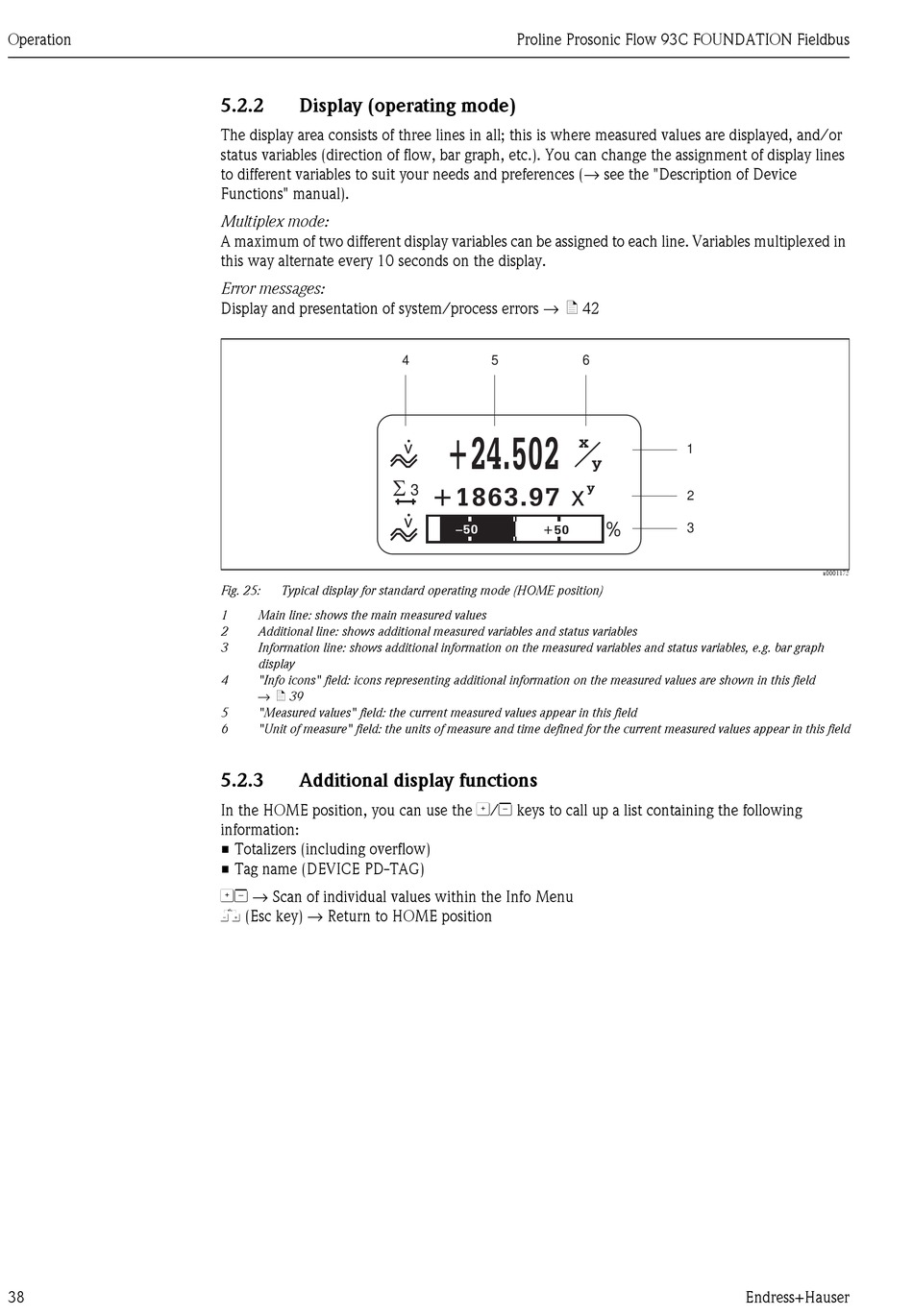

Fig. 25:
Typical display for standard operating mode (HOME position)
1
Main line: shows the main measured values
2
Additional line: shows additional measured variables and status variables
3
Information line: shows additional information on the measured variables and status variables, e.g. bar graph
display
4
"Info icons" field: icons representing additional information on the measured values are shown in this field
→ ä 39
5
"Measured values" field: the current measured values appear in this field
6
"Unit of measure" field: the units of measure and time defined for the current measured values appear in this field
5.2.3

Additional display functions

In the HOME position, you can use the O/S keys to call up a list containing the following
information:
• Totalizers (including overflow)
• Tag name (DEVICE PD-TAG)
OS → Scan of individual values within the Info Menu
X (Esc key) → Return to HOME position
Proline Prosonic Flow 93C FOUNDATION Fieldbus
4
5
+24.502
v
+1863.97
3
x
v
–50
+50
6
x
1
y
y
2
%
3
Endress+Hauser
a0001173
