Monitor Test

The following test patterns are displayed on the monitor when this test is enabled. Please match
the patterns displayed on your monitor with the given patterns figures 7-7 to 7-13. The Gain Knob
is used for selection of patterns 1-10. To exit out of any pattern and return to the main menu, press
EXTERNAL VIDEO.

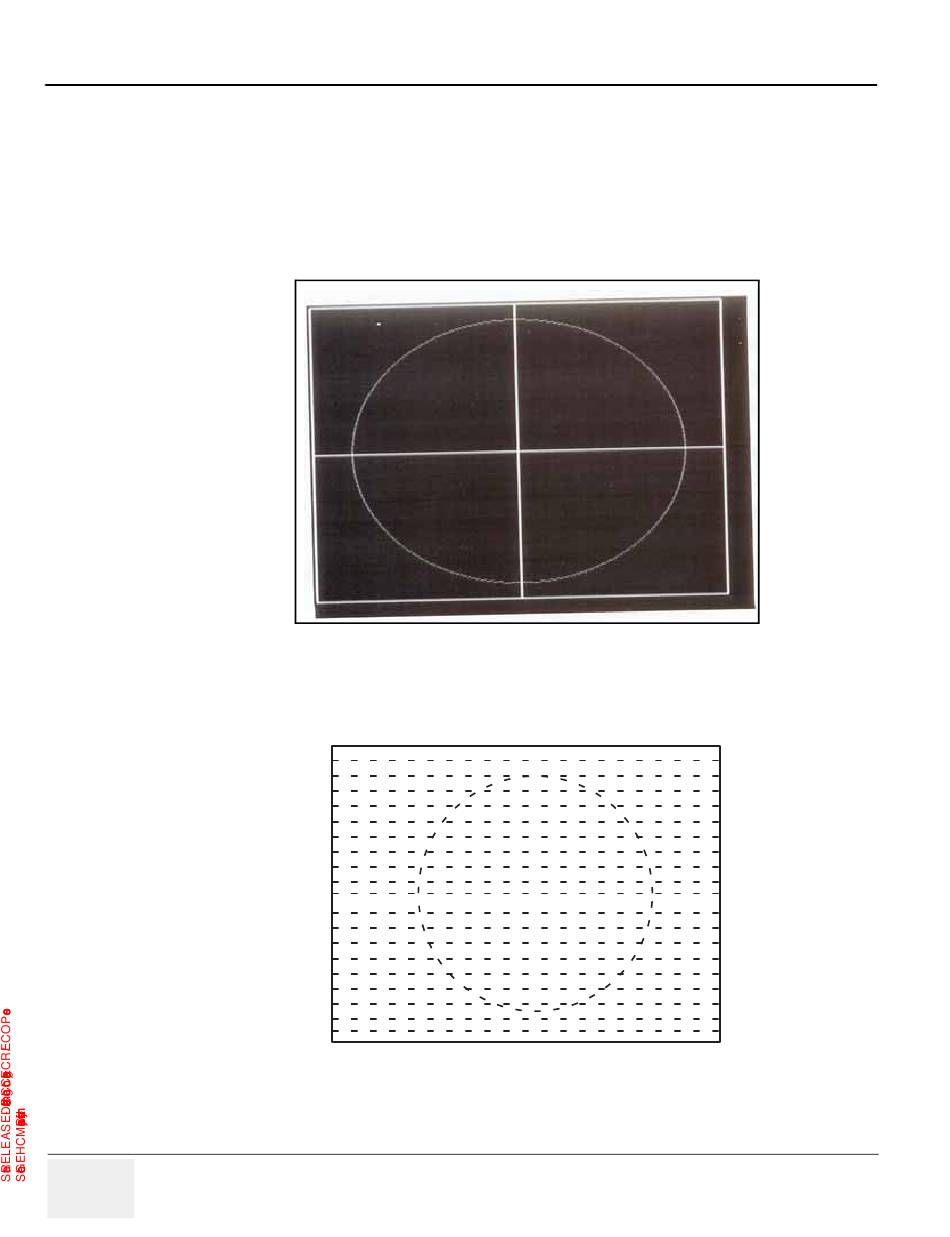

Figure 7-7 Monitor Test
Figure 7-8 Monitor Test
