Section 3-2 Receiving and Unpacking the Equipment

Please read that procedure before packing/unpacking the LOGIQ™ 100 PRO.
We strongly advice you to store the LOGIQ™ 100 PRO packing material in undamaged condition
in case of future transportation.

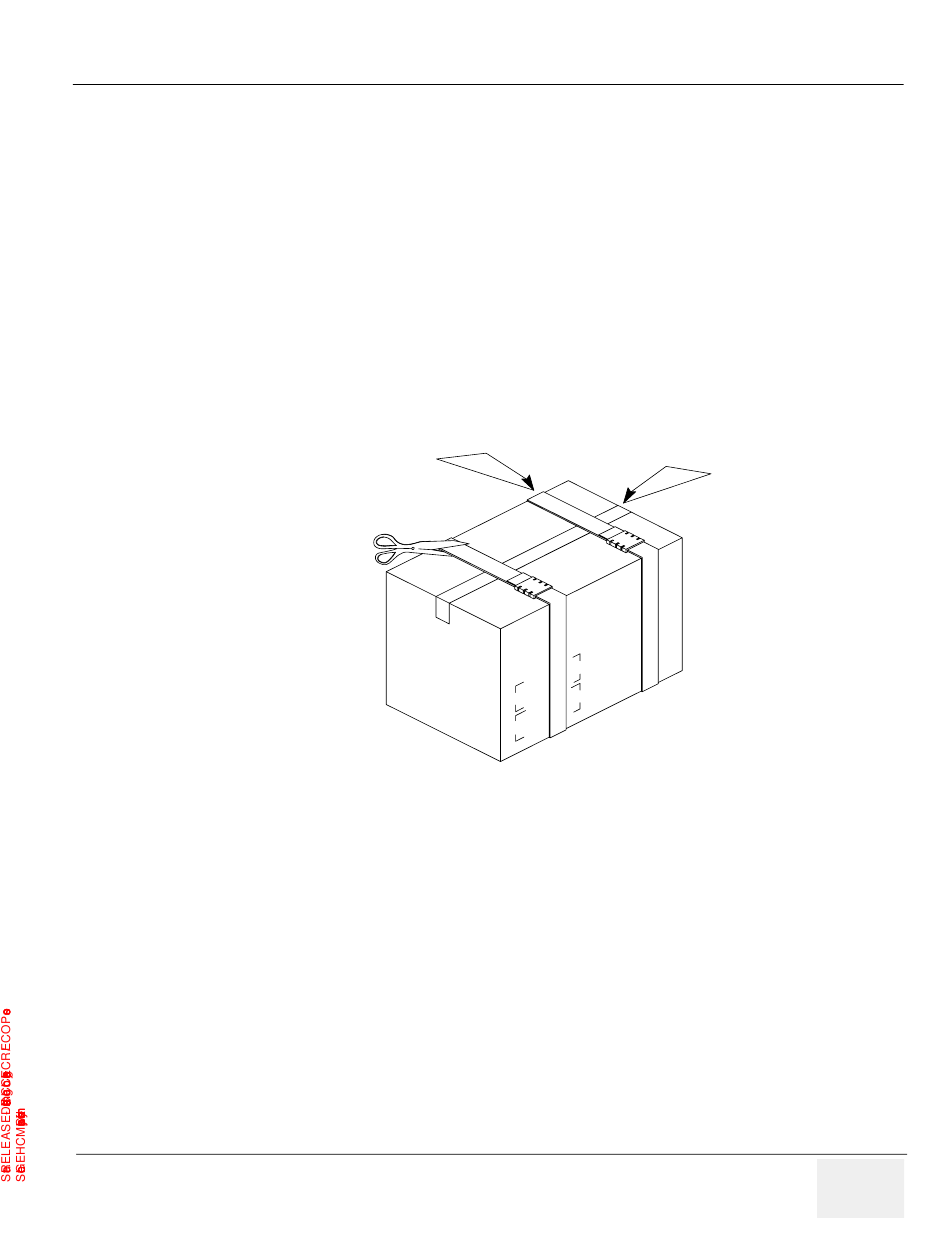

Figure 3-1 Unpacking LOGIQ™ 100 PRO
Ap p r o v e d Do c u m e n t - 5 3 0 5 8 8 0 - 1 0 0 T PH_ r 3 . p d f Pa g e 4 8 o f 1 9 7
3
EVISION
1.) Cut the two straps wrapped around the box. Refer Figure 3-1.
2.) Remove the adhesive tape. Refer Figure 3-1
3.) Open the carton flaps. Refer Figure 3-2.
4.) Remove the Operator Manual, Service Manual, Gel Bottle, Power Cord and other
accessories kept on either side of the equipment. Refer Figure 3-3.
5.) Lift the system (wrapped with stretch film) out of the box along with the packaging buffers.
Refer Figure 3-2
6.) Slide the packaging buffers out to free the system.
7.) Remove the stretch film which is wrapped around the system. Refer Figure 3-2
Straps
