13.) For assembly follow the reverse order.

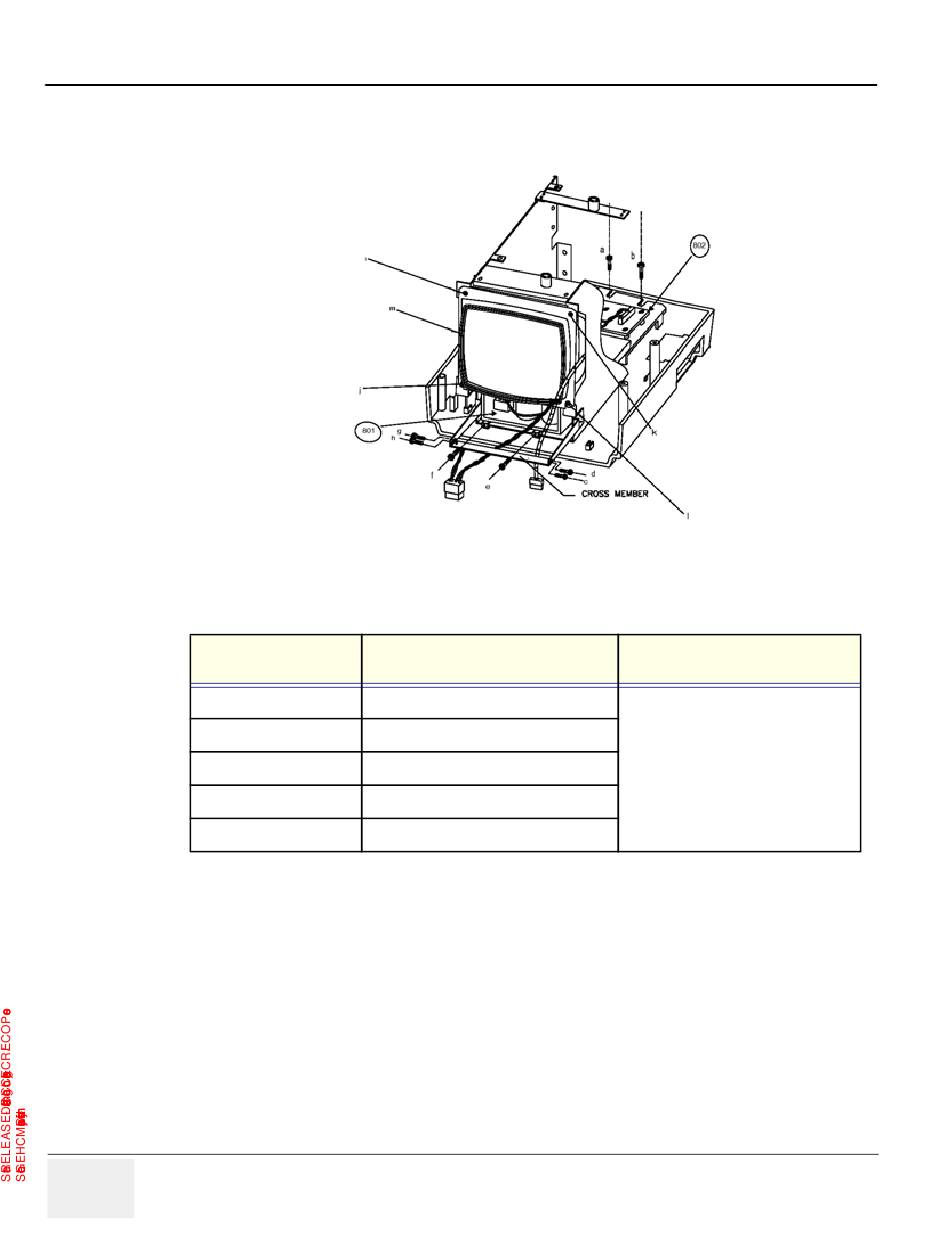

Figure 8-13 Disassembly/Assembly of Power Supply/Distributor PCB
Service Manual
Table 8-10 Functional Tests

Section 8-8 Rear Panel

8-8-1

Disassembly/Assembly of Rear Panel

Follow steps below and refer 8-14
1.) Remove Top Cover. Refer 8-2. For FRU Details refer
2.) Remove Noise filter by removing screws (c,d) then disconnect the power cables from the noise
filter.
3.) Remove all five screws indicated in the fig below from the rear panel.
4.) Remove the connectors from the Davinci board, FEB and CRT PCB.
Page 8-22
Ap p r o v e d Do c u m e n t - 5 3 0 5 8 8 0 - 1 0 0 T PH_ r 3 . p d f Pa g e 1 5 1 o f 1 9 7
3
EVISION
Section Functional Test/ Diagnostic Test
4-2-1
4-2-1 Power OFF/ Shut down
4-3
4-5 Software configuration check
7-2
Section 8-8 - Rear Panel
Power ON/ Boot up
Functional Checks
Diagnostics tests
LOGIQ™ 100 PRO S
ERVICE
Debrief Script
Service manual direction 5305880-
100, Section 8-7-1.Equipment
passed all required tests and is
ready for use.
